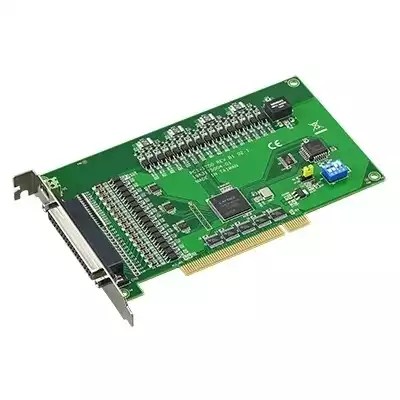

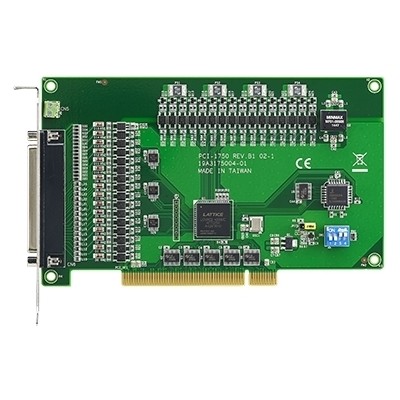

PCI-1750-BE

32ch Isolated Digital I/O PCI Card w/Counter

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 3 ks

- +
Porovnat
Porovnat
Číslo zboží: GA59101304 Produktové číslo: PCI-1750-BEKategorie: Výrobce: Advantech
Poptat produkt
• 32-ch Isolated Digital I/O and 3-ch Counter PCI Card
• 16 isolated DI and 16 isolated DO channels
• High voltage isolation on all isolated channels (2,500 VDC)
• High sink current on isolated output channels (200 mA/channel)
• Supports dry contact or 5 ~ 50 VDC isolated inputs
• Interrupt handling
• Timer/counter interrupt capability

PCI-1750 offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750 corresponds to a bit in a PC I/O port.This makes PCI-1750 very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC. So you can then easily do configurations by software.
Hmotnost0,12 kg
Rozměry227 × 159 × 40 mm
Výrobce

Advantech

Počet kanálů

32

Rozhraní

PCI

Typ vstupů

Digitální, Čítačové

Typ výstupů

Digitální

Datasheet

Stáhnout datasheet:
