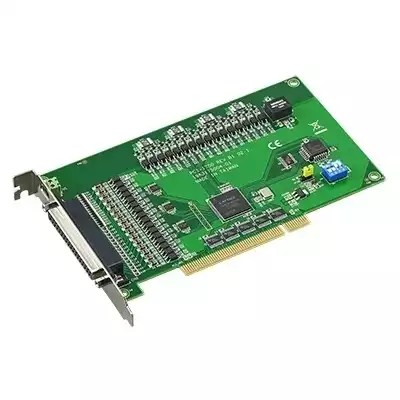

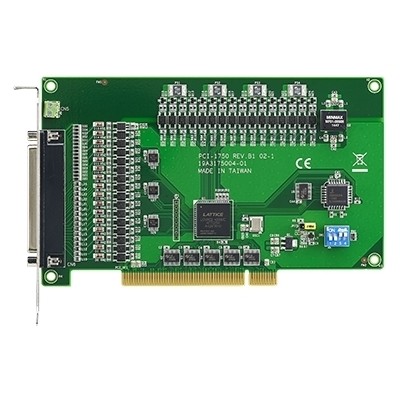

PCI-1750SO-AE

• 16 isolated DI and 16 isolated DO channels• High voltage isolation on all isolated channels (2,500 VDC)• High sink current on isolated output channels (200 mA/channel)• Supports dry contact or 5 ~ 50 VDC isolated inputs• Interrupt handling capability• Timer/counter interrupt capability
PCI-1750 offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750 corresponds to a bit in a PC I/O port. This makes PCI-1750 very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC. So you can then easily do configurations by software.
