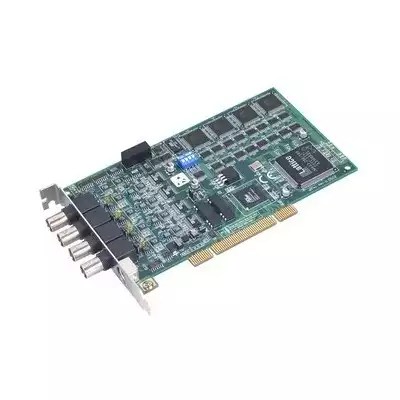

PCI-1714U-BE

30M, 12bit, 4ch Simultaneous Analog Input PCI Card

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GA59101122 Produktové číslo: PCI-1714U-BE Kategorie: Výrobce: Advantech
Poptat produkt

• 30 MS/s, 12-bit, Simultaneous 4-ch Analog Input Universal PCI Card
• 4 single-ended analog input channels
• 12-bit A/D converter, with up to 30 MHz sampling rate
• Programmable gain
• Onboard FIFO memory 32,768 samples
• 4 A/D converters simultaneously sampling
• Multiple A/D triggering modes
• Programmable pacer/counter
• BoardID™ switch
• Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals)

PCI-1714U/PCI-1714UL and PCIE-1744 are advanced high-performance data acquisition cards based on the PCI/PCIe bus. With a large FIFO of 32,768 for each channel, the maximum sampling rate of PCI-1714U/PCIE-1744 can get up to 30 MS/s, on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. The low-cost PCI-1714UL offers 10 MS/s on each channel at a stable rate, and has also been equipped with a universal PCI interface.

Hmotnost 0.46 kg
Rozměry 175 × 100 × 20 mm
Výrobce

Advantech

Počet kanálů

4

Rozhraní

PCI

Typ vstupů

Analogové

Typ výstupů

Žádné

Datasheet
