• 64-ch single-ended or 32-ch differential or a combination of analog input
• 16-bit A/D converter, with up to 250 kHz sampling rate
• Auto calibration
• Onboard FIFO memory (1,024 samples)
• PCI-Bus mastering data transfer
• Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
• BoardID™ switch

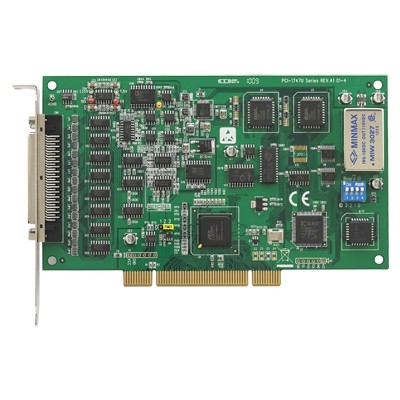

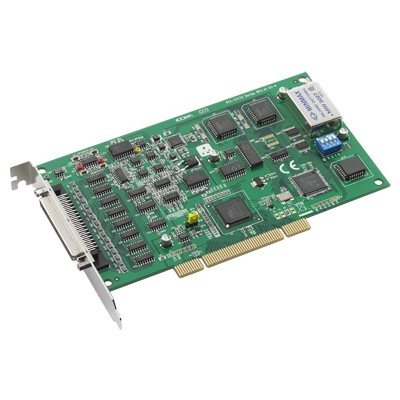

PCI-1747U is a high-resolution, high-channel-count analog input card for the PCI bus. Its sampling rate is up to 250 kS/s and 16-bit resolution provides the resolution needed for most data acquisition applications. PCI-1747U provides 64 single-ended, 32 differential analog input channels or a combination of these. It also has built in a 1,024 FIFO buffer for analog input data.
Hmotnost | 0,34 kg |
---|---|
Rozměry | 227 × 159 × 40 mm |
Výrobce | Advantech |
Počet kanálů | 64 |
Rozhraní | PCI |
Typ vstupů | Analogové |
Typ výstupů | Žádné |
