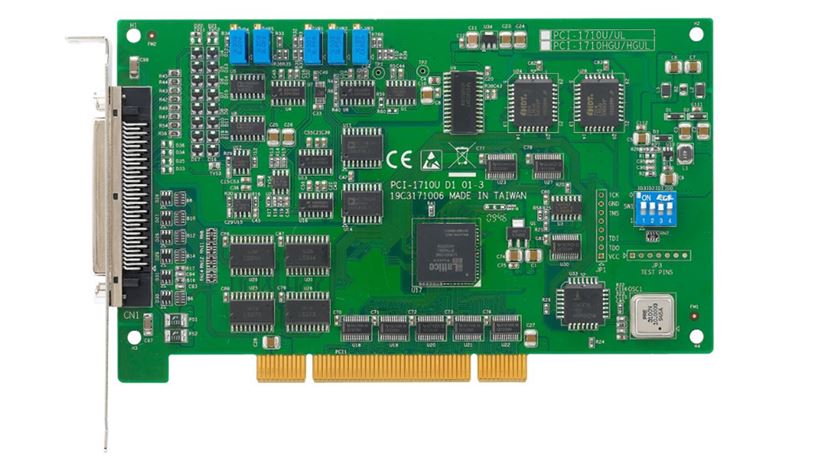

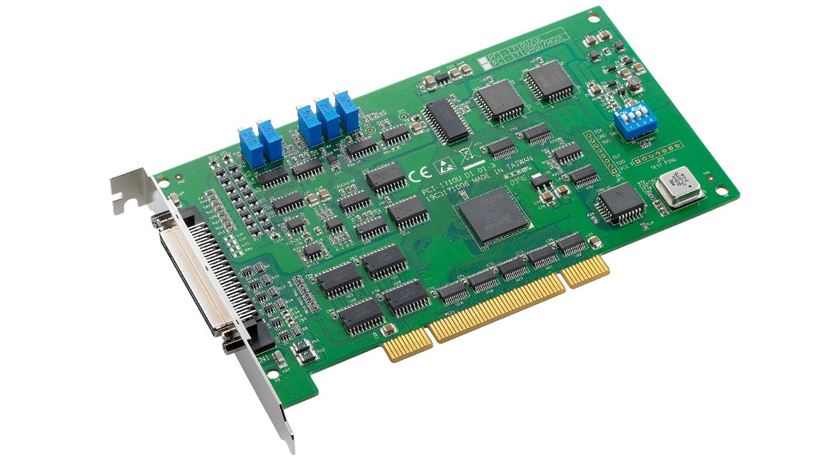

PCI-1710HGU-DE

100KS/s 12-bit Multi. Uni. PCI Card w/ High-gain

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GA59101040 Produktové číslo: PCI-1710HGU-DEKategorie: Výrobce: Advantech
Poptat produkt
• 100 kS/s, 12-bit, 16-ch Universal PCI Multifunction Card with High Gain
• 16 single-ended, 8 differential or a combination of analog inputs
• 12-bit A/D converter, with up to 100 kHz sampling rate
• Programmable gain for each input channel
• Free combination of single-ended and differential inputs
• On-board 4 K samples FIFO buffer
• Two 12-bit analog output channels
• 16 digital inputs and 16 digital outputs
• Programmable pacer/counter
• BoardID™ Switch
• Short circuit protection

The PCI-1710HGU is a multifunction DAS card for the PCI bus. Its advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, and counter/timer.
Hmotnost0,39 kg
Rozměry227 × 159 × 40 mm
Výrobce

Advantech

Počet kanálů

16

Rozhraní

PCI

Typ vstupů

Analogové, Digitální, Čítačové

Typ výstupů

Analogové, Digitální

Datasheet

Stáhnout datasheet:
