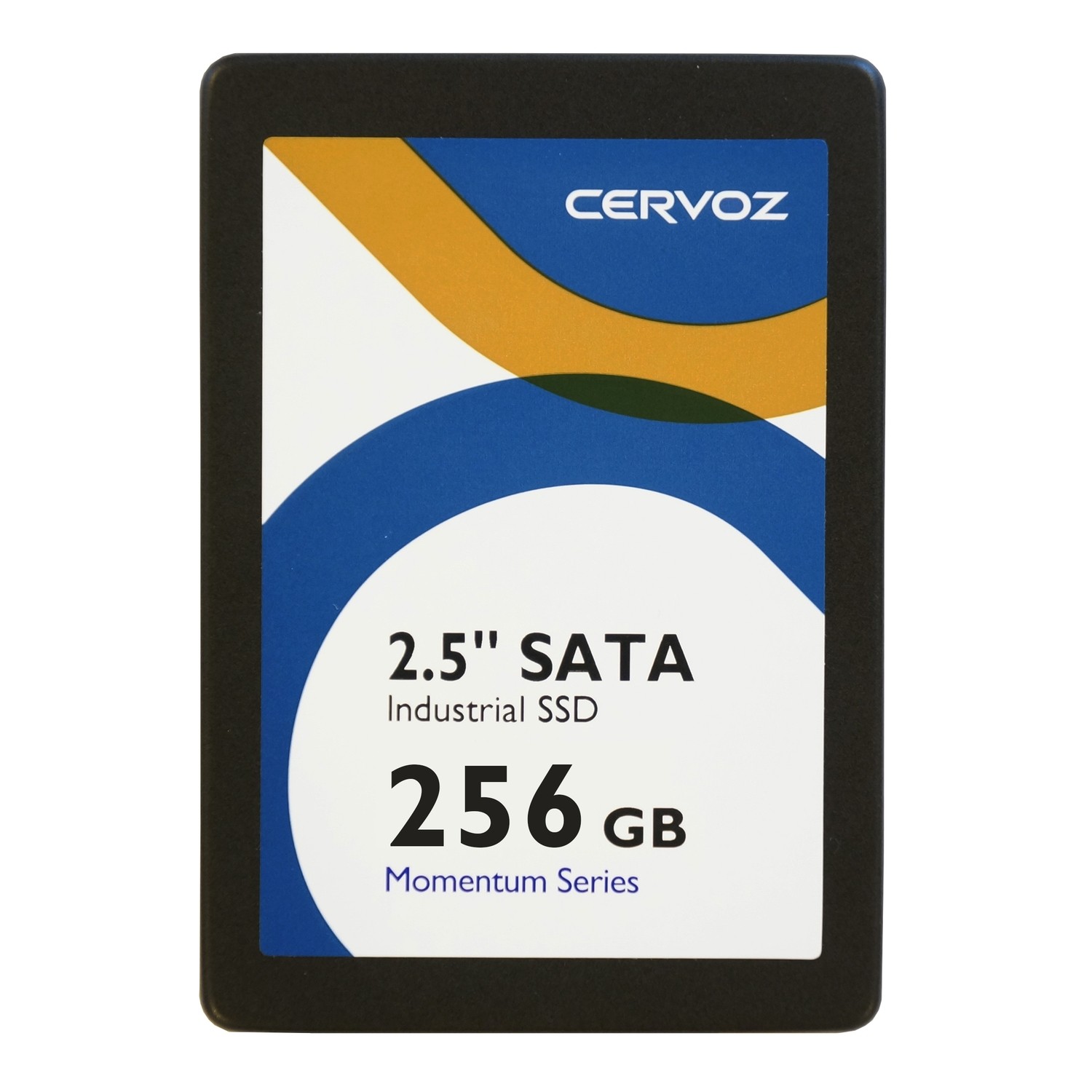

256GB Industrial 2.5″ SATA SSD M336

Powerguard w/ DDR3 DRAM buffer

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: X47132425 Číslo zboží výrobce: CIS-2SM336MKB256GS Výrobce: Cervoz Kategorie:
Poptat produkt

Cervoz Industrial 2.5″ SATA SSD M336 family is a high capacity Solid State Disk product that is in compliance with the 2.5″ form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards. In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges.  With this special design, SSD is constantly charging the tantalum capacitors with 12V power during its operation.

M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.

Features:

  1. Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
  2. MLC NAND flash memory
  3. Capacity: 32GB ~ 512GB
  4. Powerguard Function
  5. With 16-bit wide DDR3 DRAM Buffer
  6. Operating as boot disk
  7. Product includes Standard Temperature range & Wide Temperature range
  8. Low power consumption
  9. Shock resistance and anti-vibration
  10. Static and dynamic wear leveling
  11. Bad block management
  12. S.M.A.R.T. & TRIM command
  13. Fully compatible with Windows 7, Windows 8, Windows 10, Mac OS, and Linux
  14. RoHS compliant

Specifications:

Form Factor 2.5 inch
Interface SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s)
Connector SATA (7 + 15 pin)
NAND Flash Type MLC
Capacity 32GB/64GB/128GB/256GB/512GB
Sequential Read up to 545MB/s
Sequential Write up to 425MB/s
DDR3 DRAM Buffer Included
ECC Scheme up to 66bits / 1K Byte
MTBF 2,000,000 hours
Terabyte Written (TBW) 32GB : 31

64GB : 63

128GB : 125

256GB : 250

512GB : 500

Low Power Management DIPM / HIPM mode
Supply Voltage +5V DC +/- 5%
Power Consumption Active mode: < 2.5W

Idle mode: < 60mW

Dimension (L x W x H) 100.00*69.85*7.00mm
Weight 62 +/- 1g
Hmotnost 0.062 kg
Rozměry balení 100 × 70 × 7 mm
Výrobce

Cervoz

Formát

2.5" SATA

Kapacita

256 GB

Provozní teplota

Standardní
