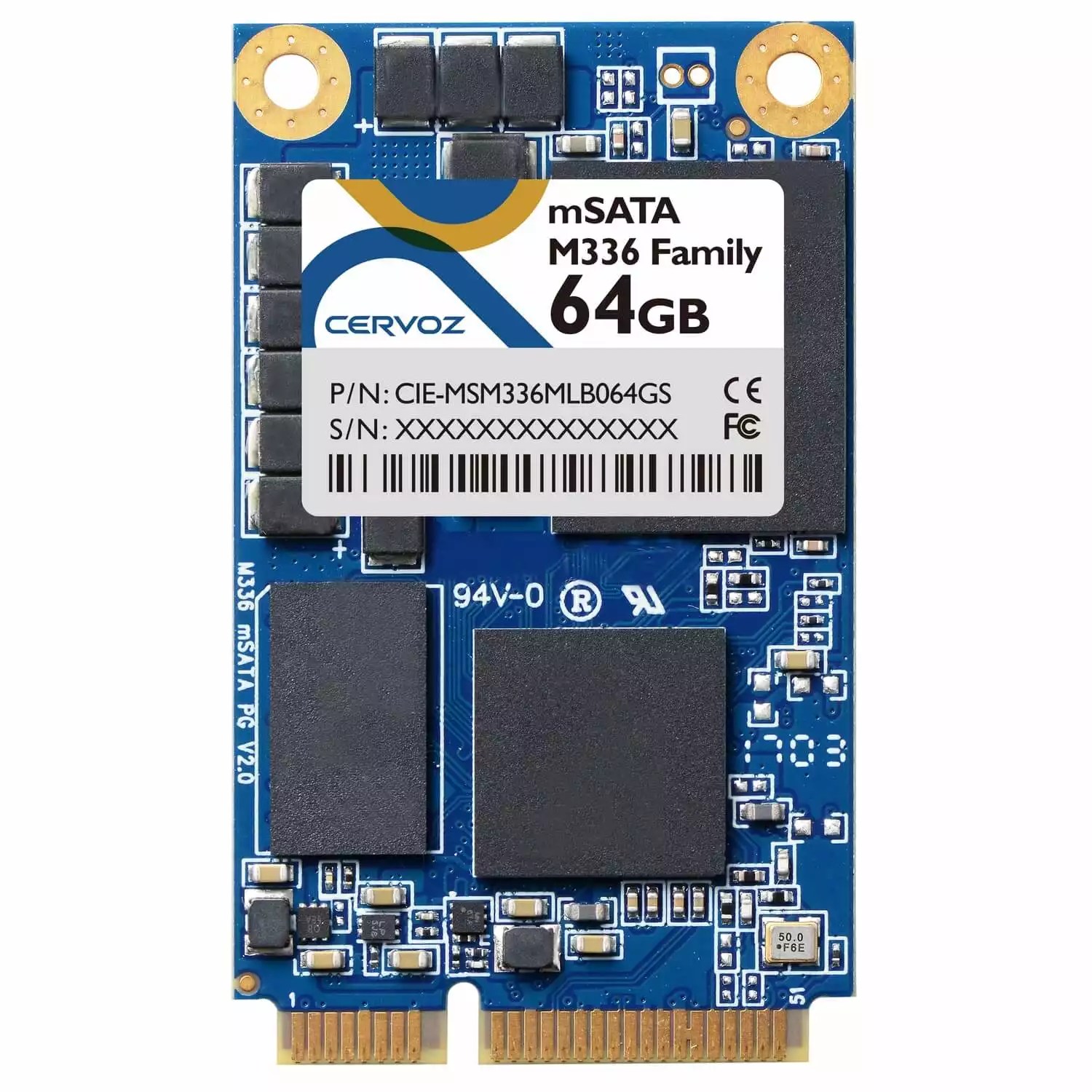

64GB Industrial mSATA SSD Module M336

Powerguard w/DDR3 DRAM buffer MLC, Wide Temp.

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: X46820515 Produktové číslo: CIE-MSM336MLB064GWKategorie: Výrobce: Cervoz
Poptat produkt

Cervoz Industrial mSATA Embedded Module M336 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA M336 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes. In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges.  With this special design, mSATA is constantly charging the tantalum capacitors with 12V power during its operation.

M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.

Features:

  1. Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
  2. MLC NAND flash memory
  3. Capacity: 32GB ~ 128GB
  4. With 16-bit wide DDR3 DRAM Buffer
  5. Operating as boot disk
  6. Product includes Standard Temperature range & Wide Temperature range
  7. Low power consumption
  8. Shock resistance and anti-vibration
  9. Static and dynamic wear leveling
  10. Bad block management
  11. S.M.A.R.T. & TRIM command
  12. Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
  13. RoHS compliant

Specifications:

Form FactormSATA
InterfaceSATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s)
ConnectormSATA
NAND Flash TypeMLC
Capacity32GB/64GB/128GB
Sequential Readup to 535MB/s
Sequential Writeup to 145MB/s
DDR3 DRAM BufferIncluded
ECC Schemeup to 66bits / 1K Byte
MTBF2,000,000 hours
Terabyte Written (TBW) 32GB : 31

64GB : 63

128GB : 125

Low Power Management DEVSLP mode

DIPM/HIPM mode

Supply Voltage+3.3V DC +/- 5%
Power Consumption Active mode: < 1.7W

Idle mode: < 45mW

DEVSLP mode: < 5mW

Dimension (LxWxH)50.95*30.00*3.90mm
Weight7.8 +/- 1g
Hmotnost0,078 kg
Rozměry51 × 30 × 4 mm
Výrobce

Cervoz

Formát

mSATA

Kapacita

64 GB

Provozní teplota

Rozšířená
