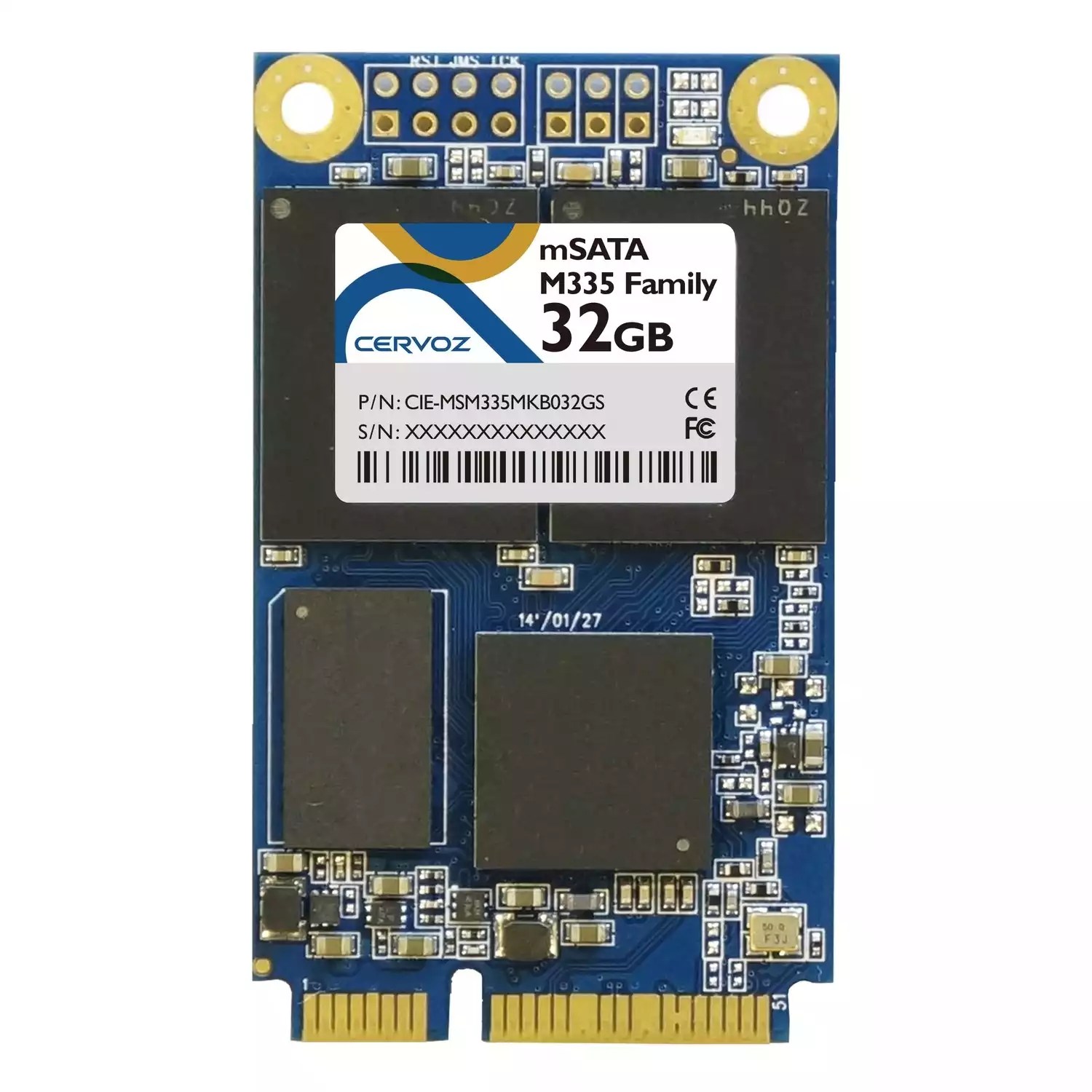

32GB Industrial mSATA SSD Module M335

w/ DDR3 DRAM buffer

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: X46818435 Produktové číslo: CIE-MSM335MKB032GSKategorie: Výrobce: Cervoz
Poptat produkt

Cervoz Industrial mSATA Embedded Module M335 family is a Solid State Flash Disk product that is in compliance with the mSATA and SATA III standards. mSATA M335 family fits in any mSATA sockets in a PC or motherboard; it can be used for both booting and storage purposes.

M335 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.

M335 family offers outstanding performance and reliability; the product family is a perfect solution for price sensitive semi-industrial and general industrial applications.

Features:

  1. Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
  2. MLC NAND flash memory
  3. Capacity: 32GB ~ 128GB
  4. With 16-bit wide DDR3 DRAM Buffer
  5. Operating as boot disk
  6. Low power consumption
  7. Shock resistance and anti-vibration
  8. Static and dynamic wear leveling
  9. Bad block management
  10. S.M.A.R.T. & TRIM command
  11. Fully compatible with Windows XP, Windows 7, Windows 8, Windows 10, Mac OS, and Linux
  12. RoHS compliant

Specifications:

Form FactormSATA
InterfaceSATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s)
ConnectormSATA
NAND Flash TypeMLC
Capacity32GB/64GB/128GB
Sequential Readup to 535MB/s
Sequential Writeup to 145MB/s
DDR3 DRAM BufferIncluded
ECC Schemeup to 66bits / 1K Byte
MTBF2,000,000 hours
Terabyte Written (TBW) 32GB : 31

64GB : 63

128GB : 125

Low Power Management DEVSLP mode

DIPM/HIPM mode

Supply Voltage+3.3V DC +/- 5%
Power Consumption Active mode: < 685mW

Idle mode: < 75mW

DEVSLP mode: < 5mW

Dimension (LxWxH)50.95*30.00*3.90mm
Weight6.9 +/- 1g
Hmotnost0,069 kg
Rozměry51 × 30 × 4 mm
Výrobce

Cervoz

Formát

mSATA

Kapacita

32 GB

Provozní teplota

Standardní
