• Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
• Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
• Minimum Pulse Width: 1? sec. (Frequency/Counter Mode)
• Isolated Voltage: 2500 Vdc
• Programmable Digital Noise Filter: 1~65000? sec.
• 4 channels for Counter, 8 channels for Frequency
• Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag

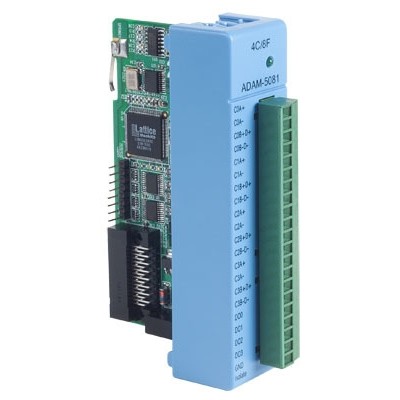

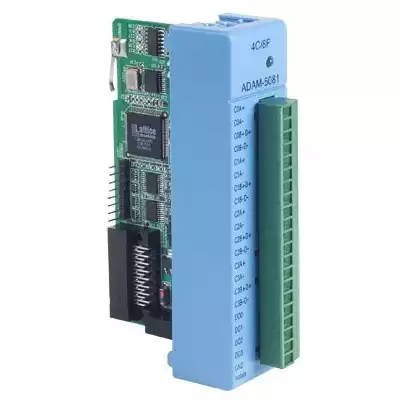

ADAM-5081 is a 4-Channel High Speed Counter/Frequency Module, users can select either counter or frequency mode for data input. This high speed module can support a high input frequency from 5Hz to 1MHz. And it provide a noise filter function 1~65000?sec. ADAM-5081 offers users flexible and versatile applications such as counter, frequency, alarm setting, Up / Down, Up, A/B phase or Bi-direction Functions.
|Rozměry||150 × 73 × 50 mm|
