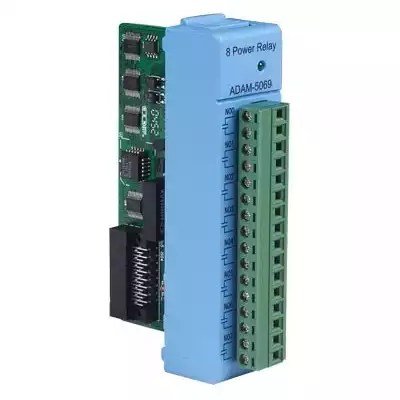

8-Ch Power Relay Output Module w/ LED

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 17 ks

- +
Číslo zboží: GA53106142 Produktové číslo: ADAM-5069-AEKategorie: Výrobce: Advantech
Poptat produkt
• 8-ch Power Relay Output Module with LED
• Supports Modbus/RTU protocol
• High Power Relay Output : 250Vac@5A, 30Vdc@5A
• 8-channel Relay Output
• 8 form A channels
• Jumper setting for output status when reset
• 8 LED indicators

ADAM-5069 is designed for on/off control in high-voltage applications. The major feature of ADAM-5069 is the power relay rating at 240 V AC and 5 A. This range can satisfy most requirements for driving externally controlled devices such as lights, fans, alarm systems, and various electronic devices in industrial automation, security, building and home automation applications. ADAM-5069 provides a jumper setting for output values. This jumper can be set to clear or keep output values when reset. To easily identify the module’s status, it has been designed with 8 LED indicators. It also provides eight form A channels, and when combined with selected controllers, it will provide the Modbus/RTU protocol for standard communication requirements.
Hmotnost0,2 kg
Rozměry150 × 73 × 50 mm



Stáhnout datasheet:
