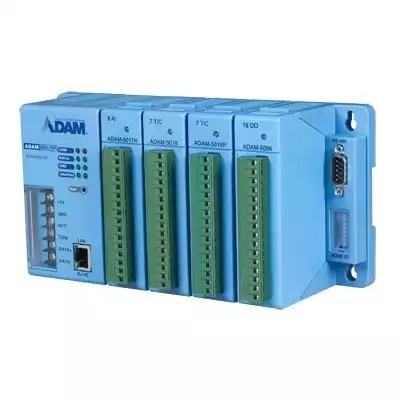

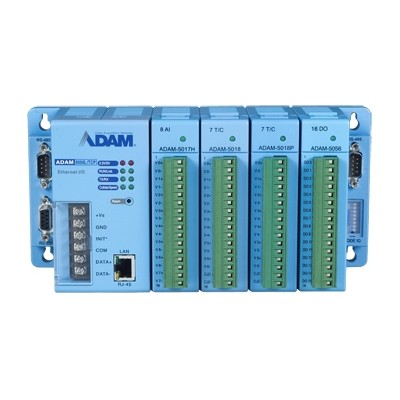

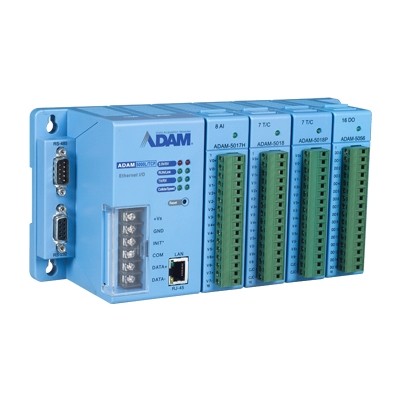

ADAM-5000L/TCP-BE

4-Slot Ethernet-based Distributed DA&C System

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: GA53104110 Produktové číslo: ADAM-5000L/TCP-BE Kategorie: Výrobce:
Poptat produkt
• 4-slot Distributed DA&C System for Ethernet
• ARM 32-bit RISC CPU
• 10/100Base-T auto-negotiation high-speed communication port
• Supports Modbus/TCP for easy integration
• Supports UDP event handling function
• Up to 100 m communication distance w/o repeater
• Allows remote configuration via Ethernet
• Allows concurrent access for 8 host PCs
• 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control
• 1500 VDC isolation for Ethernet communication
• Built-in watchdog timer for system auto-reset
• Windows utility
• Provides .NET Class LIB to develop applications

ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, ADAM-5000L/TCP and ADAM-5000/TCP can cover a communication distance up to 100 m. This allows remote configuration via Ethernet and eight PCs can simultaneously access the data. The ADAM-5000L/TCP and ADAM-5000/TCP are the solutions for easy configuration and efficient management. It is an ideal and cost-effective solution for eAutomation architecture.
Hmotnost 0.8 kg
Rozměry (produktu / balení) 291 × 172 × 135 mm
Výrobce

Advantech

Datasheet

Stáhnout datasheet:

3D Model

[canvasio3D width = ‚830‘ height = ‚600‘ border = ‚0‘ borderCol = ‚#F6F6F6‘ dropShadow = ‚0‘ backCol = ‚#FFFFFF‘ backImg = ‚/wp-content/themes/acipc-eshop/images/3D-background.jpg‘ mouse = ‚on‘ rollMode = ‚off‘ rollSpeedH = ‚0‘ rollSpeedV = ‚0‘ objPath = ‚https://eshop.autocont-ipc.cz/images/GA53104110/3dmodel/adam-5000ltcp-be.stl‘ objScale = ‚0.5‘ objColor = ‚#5c5c5c‘ lightSet = ‚7‘ reflection = ‚custom1‘ refVal = ‚7‘ objShadow = ‚on‘ floor = ‚off‘ floorHeight = ’42‘ lightRotate = ‚off‘ vector = ‚off‘ mousewheel = ‚on‘ Help = ‚off‘ loadingText = ‚Načítání 3D modelu, prosím čekejte…‘][/canvasio3D]
* Upozornění: 3D model slouží pouze pro ilustrační účely. Některé detaily nemusí být vyobrazeny. Design zařízení se může kdykoliv bez předchozího upozornění změnit.
