16-Ch Digital Output Module w/ LED

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GA53106092 Produktové číslo: ADAM-5056D-AE Kategorie: Výrobce: Advantech
Poptat produkt

• 16-ch Digital Output Module
• Channels: 16
• Operating voltage: 30 Vmax
• Digital output: Open collector to 30 V, 100 mA max. load
• Power consumption: 0.25 W (typical); 0.53 W (max.)
• LED indicator: On: Output logic level “1”
• Output status hold function
• Power dissipation: 300 mW for each channel

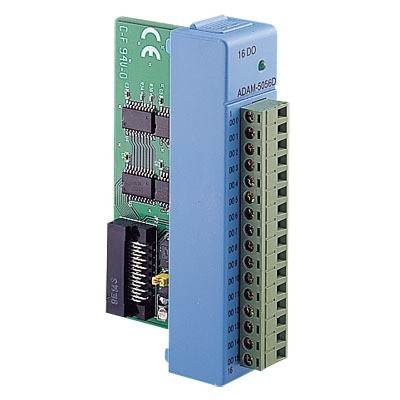

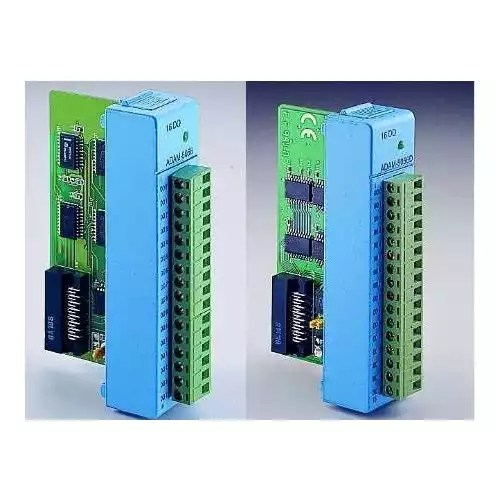

The ADAM-5056D features sixteen digital output channels with LED indicators. The digital outputs are open-collector transistor switches that you can control from the ADAM-5000 main unit. You also can use the switches to control solid-state relays.

Hmotnost 0.12 kg
Rozměry 150 × 73 × 50 mm
