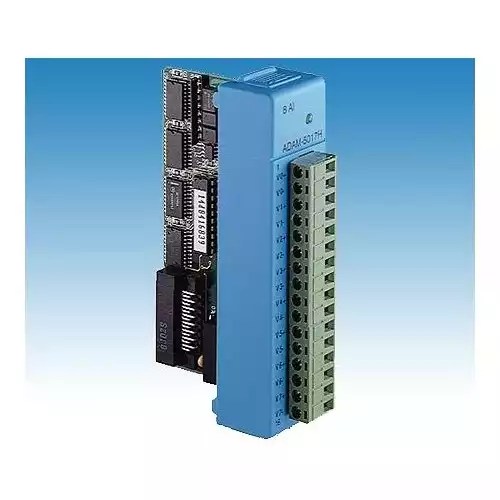

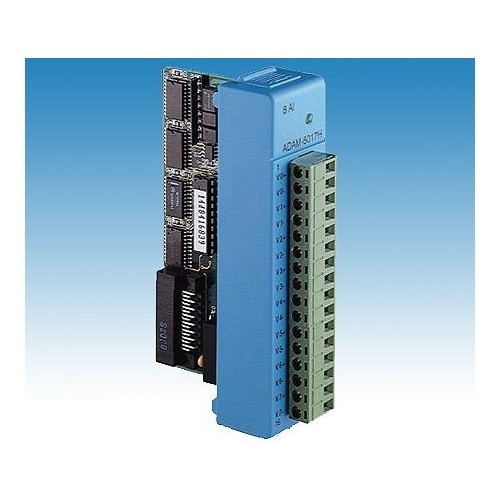

ADAM-5017H-BE

8-Ch High-speed Analog Input Module

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GA53105042 Produktové číslo: ADAM-5017H-BEKategorie: Výrobce: Advantech
Poptat produkt
• 8-channel High-speed Analog Input Module
• Effective resolution: 12-bit plus sign bit
• Input type: mV, V, mA
• 3000VDC Isolation voltage protection
• High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
• 1000 Hz bandwidth
• Distinct range settings allowed on each channel
• Accuracy: ±0.1% or better

The ADAM-5017H is a 12-bit plus sign bit, 8-channel analog differential input module that provides programmable input ranges on each channel. It accepts millivolt inputs (± 500 mV, 0-500 mV), voltage.
Hmotnost0,12 kg
Rozměry150 × 73 × 50 mm
Výrobce

Advantech

Datasheet

Stáhnout datasheet:
