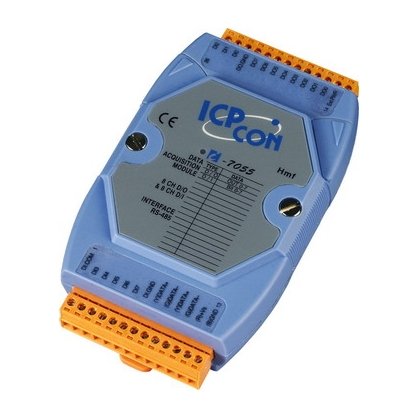

The I-7055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The I-7055 supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The I-7055D has 16 LED indicators that can be used to monitor the status of the digital input and digital output channels. 4 kV ESD protection and 3750 VDC intra-module isolation are standard. The M-7055 has the same hardware specifications as the I-7055, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.
Features:
- Source-type Digital Output Channels with Overload Protection
- All Digital Input Channels can be used as 16-bit Counters
- Short Circuit Protection
- 4 kV ESD Protection
- 3750 VDC Intra-module Isolation
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Wide Operating Temperature Range: -25 ~ +75°C
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
+4 kV for Power Line |
| ESD (IEC 61000-4-2) |
+4 kV Contact for each Terminal
+8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
+3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact, Source
Wet Contact, Sink/Source |
| Wet Contact, ON Voltage Level |
+10 ~ 50 VDC |
| Wet Contact, OFF Voltage Level |
+4 VDC Max. |
| Dry Contact, ON Voltage Level |
Close to GND |
| Dry Contact, OFF Voltage Level |
Open |
| Dry Contact, Effective Distance |
500 m Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 K? |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Open Source |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 ~ 40 VDC |
| Max. Load Current |
650 mA/Channel |
| Overvoltage Protection |
47 VDC |
| Overload Protection |
1.4 A (with short-circuit protection) |
| Short-Circuit Protection |
Yes |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
0.8 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
