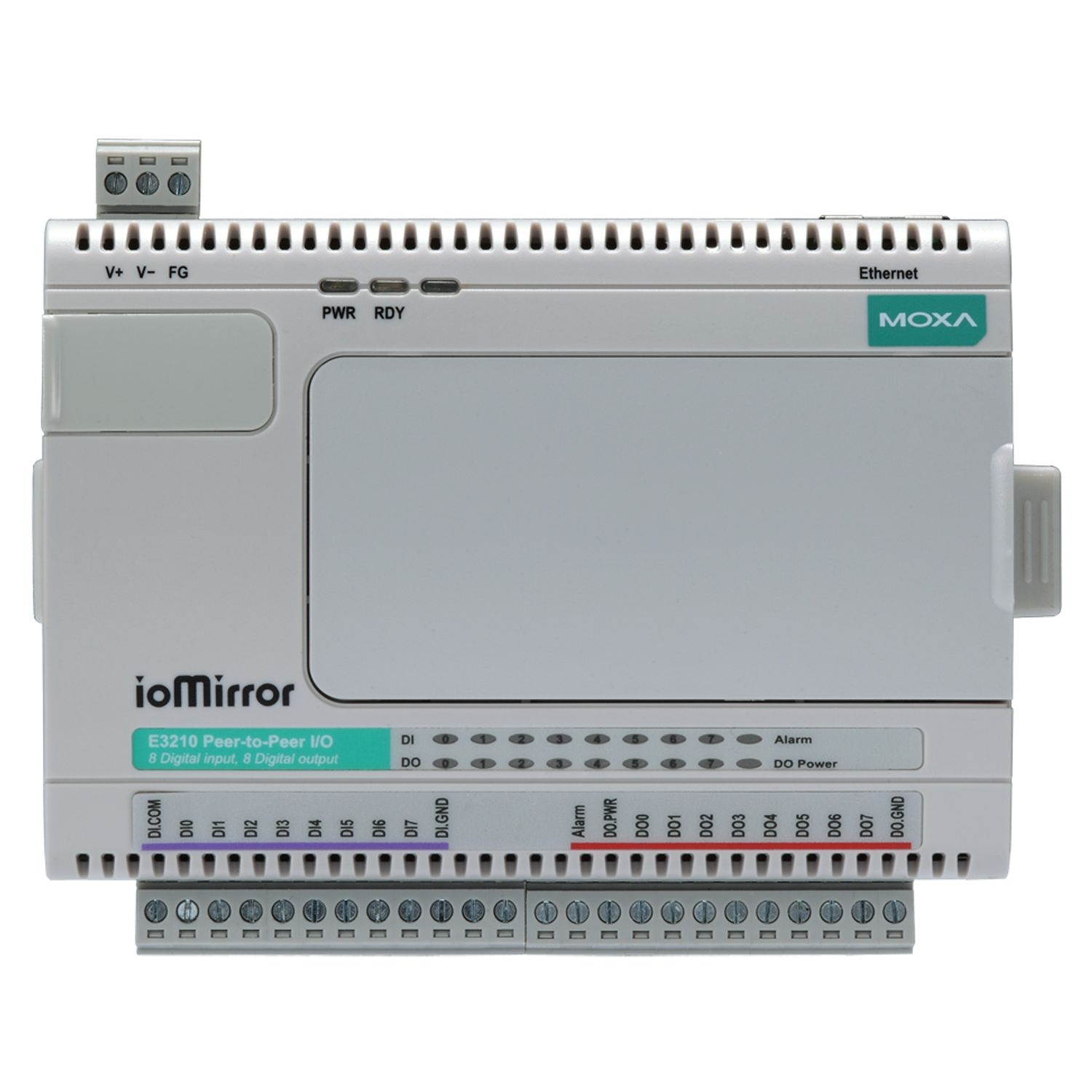

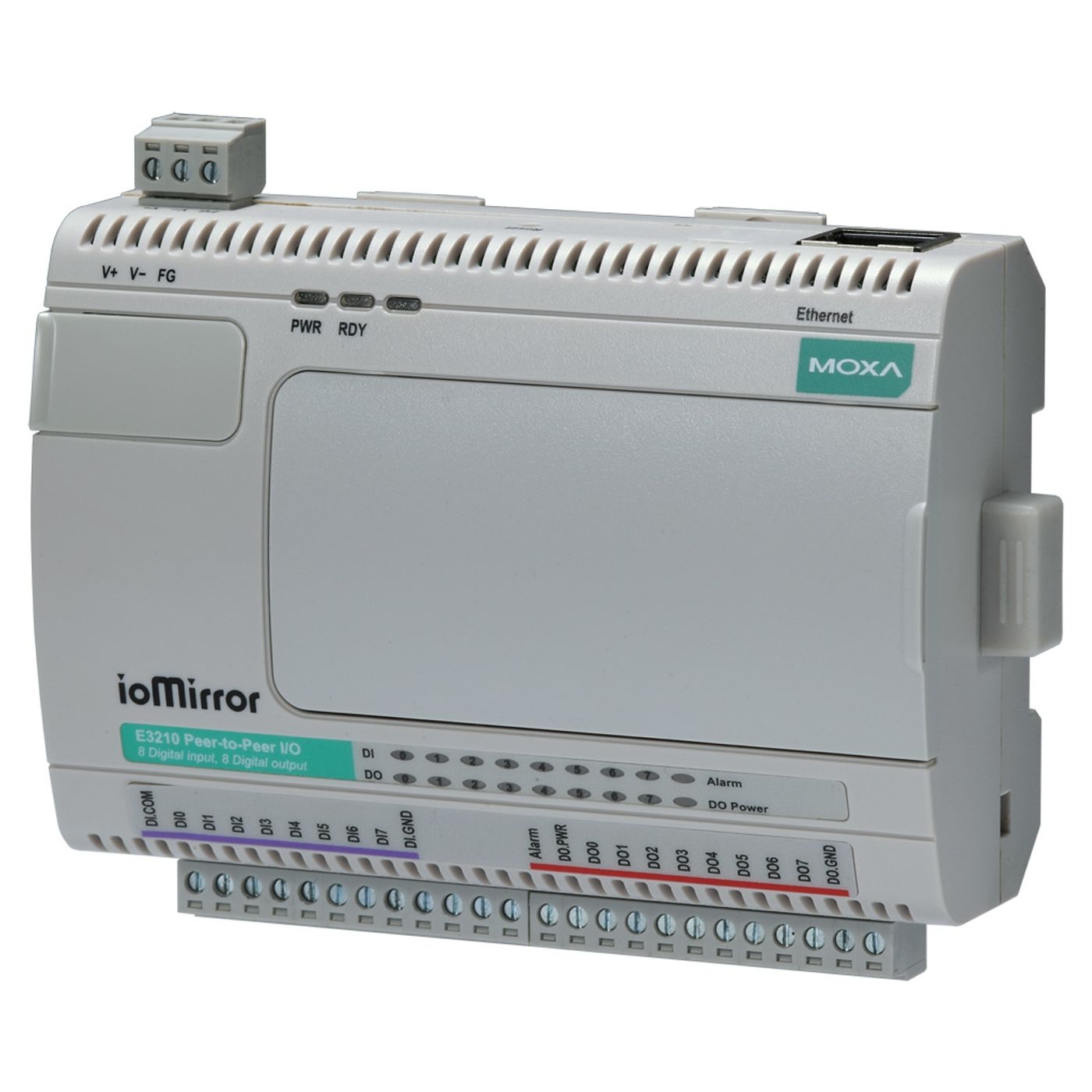

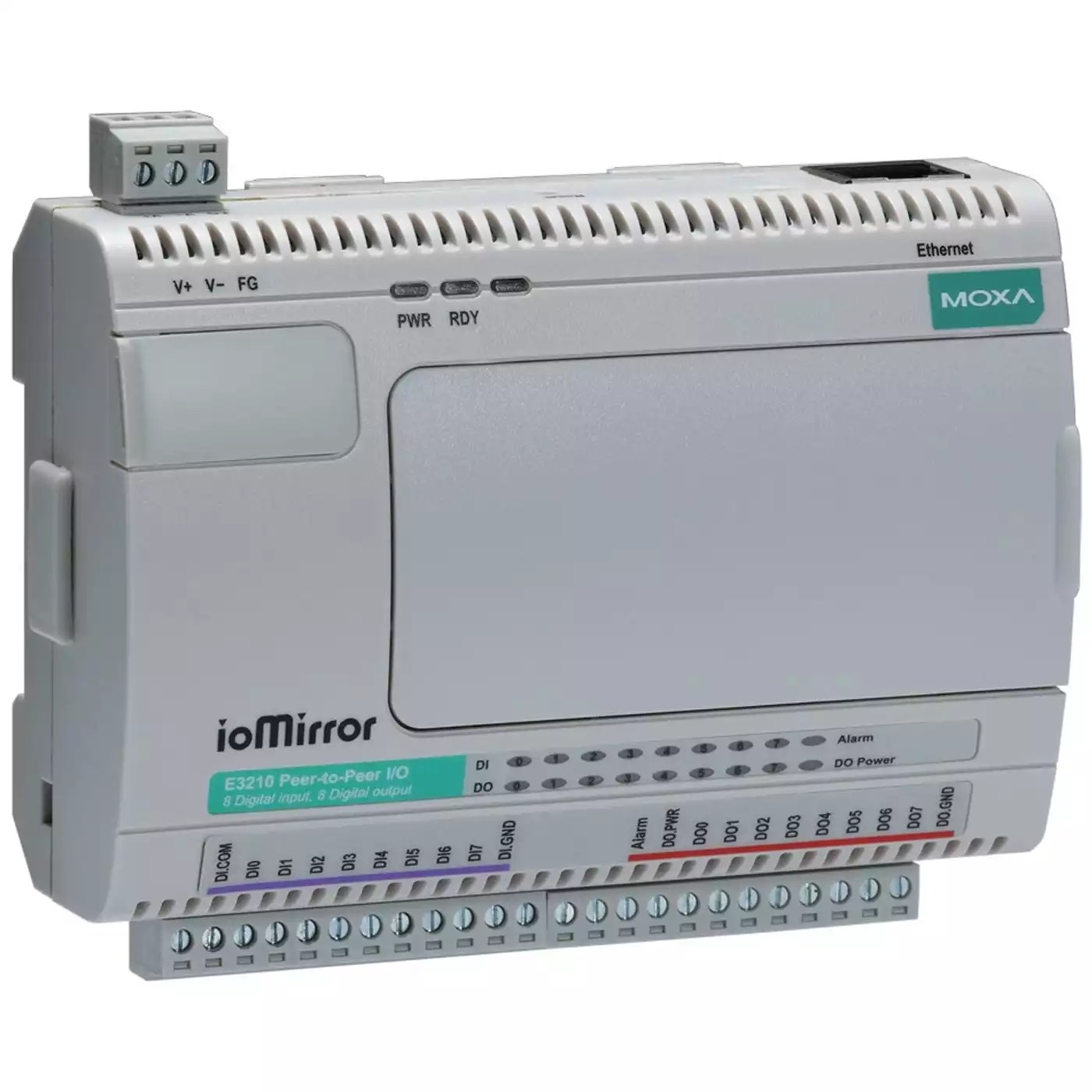

ioMirror E3210

Ethernet Peer-to-Peer I/O with 8xDI, 8xDO

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6271002 Produktové číslo: ioMirror E3210 Kategorie: Výrobce: MOXA
Poptat produkt
• Ethernet Peer-to-Peer I/O with 8 digital inputs and 8 digital outputs
• Direct input-to-output signal communication over IP
• High speed Peer-to-Peer I/O within 20 ms
• One physical alarm port for connectivity status
• Quick and easy utility and web-based settings
• Local alarm channel
• Remote alarm message
• Supports Modbus/TCP for remote monitoring
• Optional LCD module for simple setting

ioMirror E3000 Ethernet I/O products are designed as a cablereplacement solution that connects remote digital input signals to output signals over an IP network. The ioMirror E3210 provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3210, or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With ioMirror, remote sensors can now be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures. Signals can be transmitted over virtually unlimited distances, without noise problems.


Konektor vstupů


Konektor výstupů


Počet kanálů


Typ vstupů


Typ výstupů
