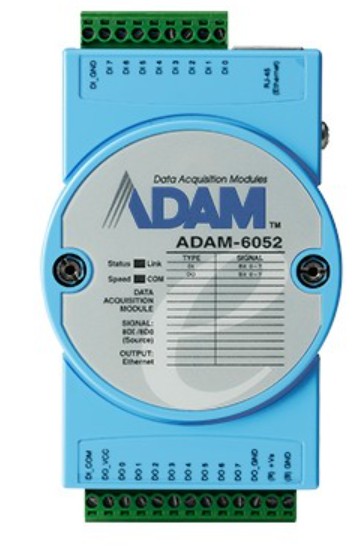

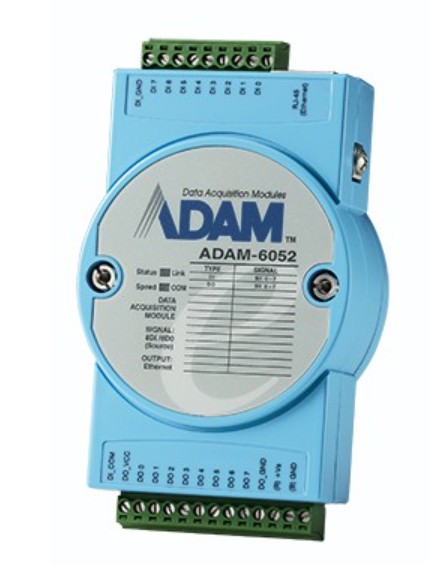

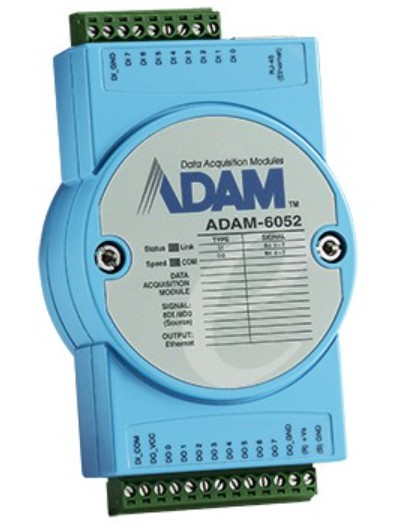

ADAM-6052-D

16-Ch Source Type DI/O Module

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GA53203054 Produktové číslo: ADAM-6052-D Kategorie: Výrobce: Advantech
Poptat produkt
• 8-ch DI, 8-ch DO, Ethernet-based smart I/O• Remote monitoring and control with mobile devices• Group configuration capability for multiple module setup• Flexible user-defined Modbus address• Intelligent control ability by Peer-to-Peer and GCL function• Active I/O message by data stream or event trigger function• Multiple protocol support: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT• Web language support: XML, HTML 5, Java Script
ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done inan extremely short time with the easy-to-use and intuitive graphic utility.
Hmotnost 0.2 kg
Rozměry (produktu / balení) 150 × 85 × 51 mm
Výrobce

Advantech

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

16

Typ vstupů

Digitální

Typ výstupů

Digitální
