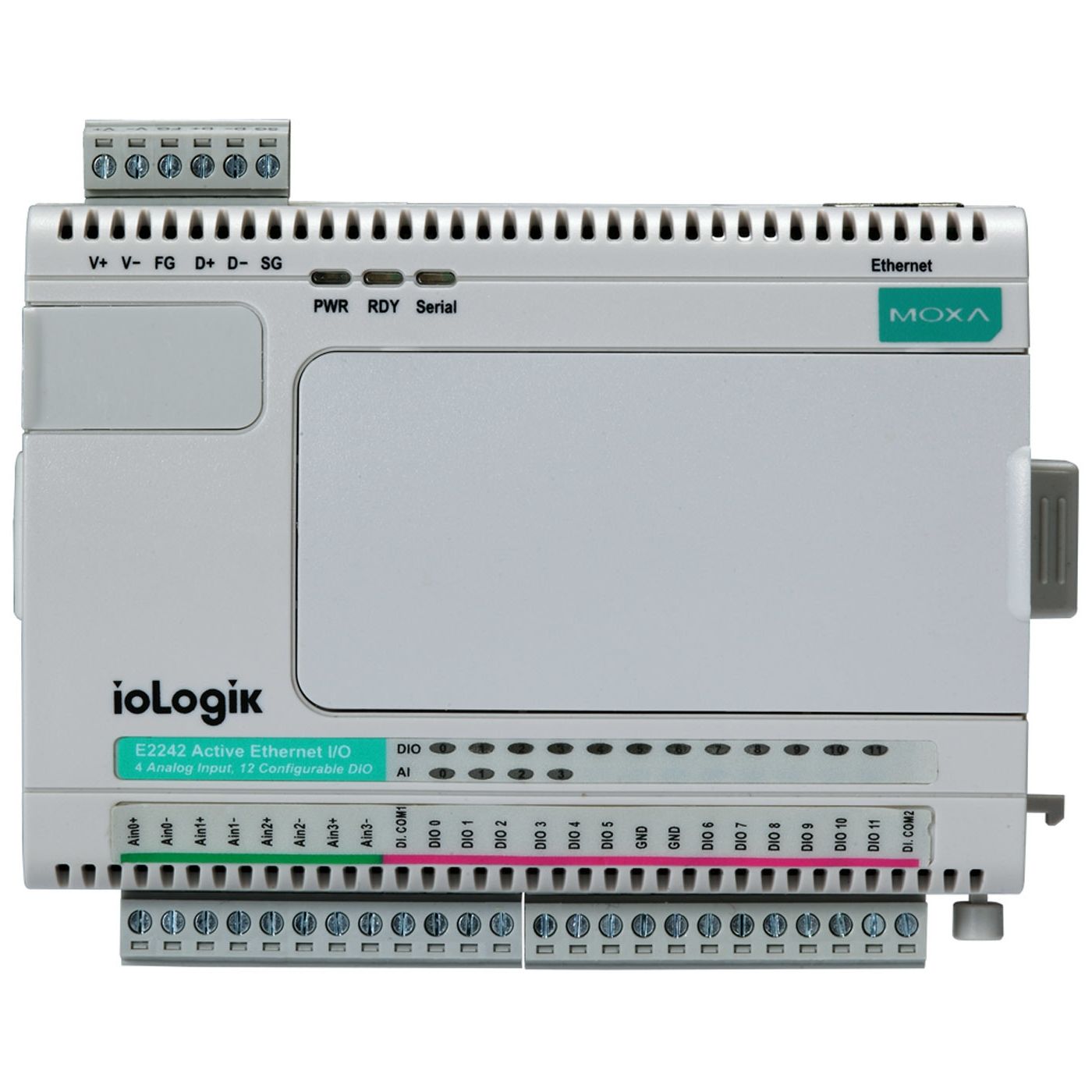

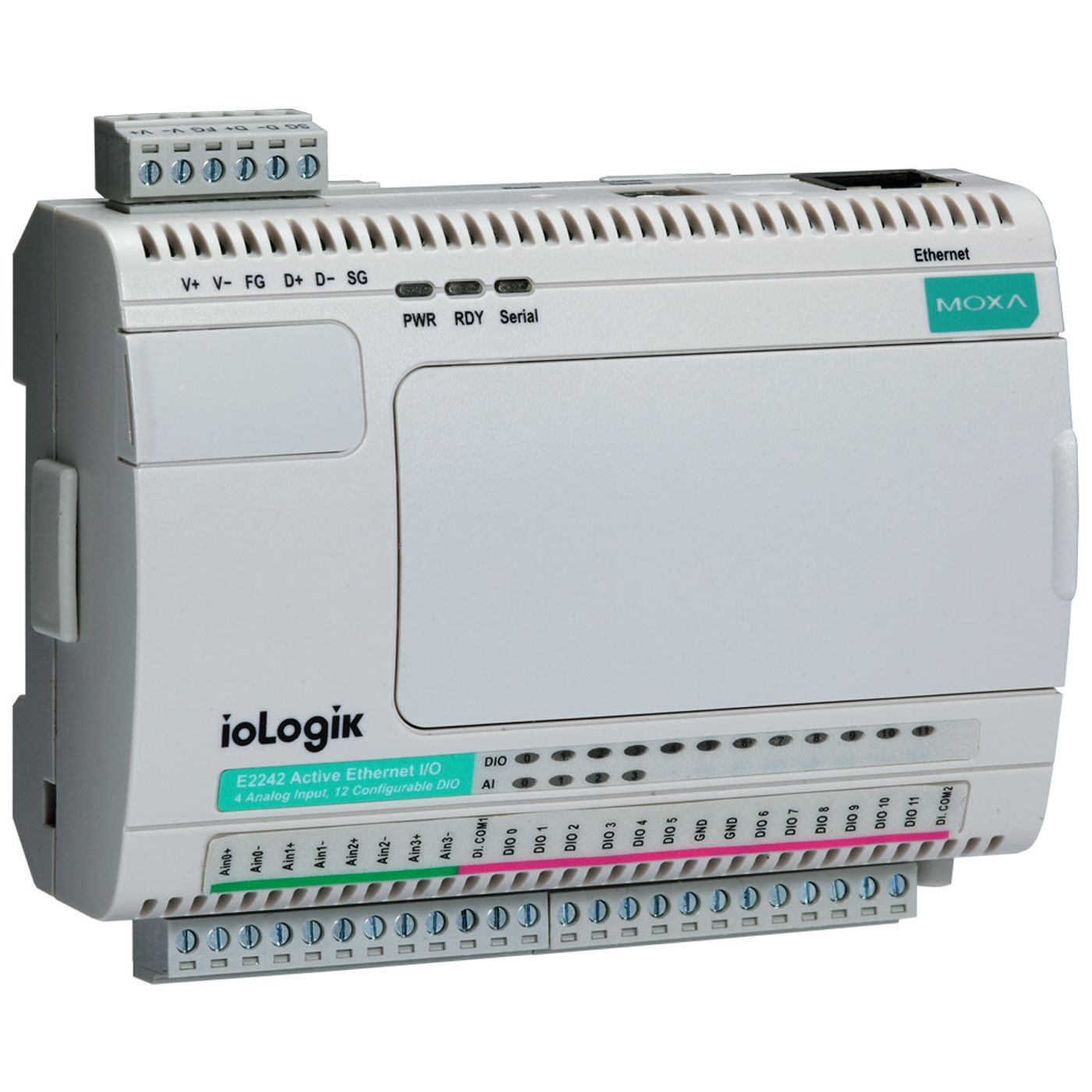

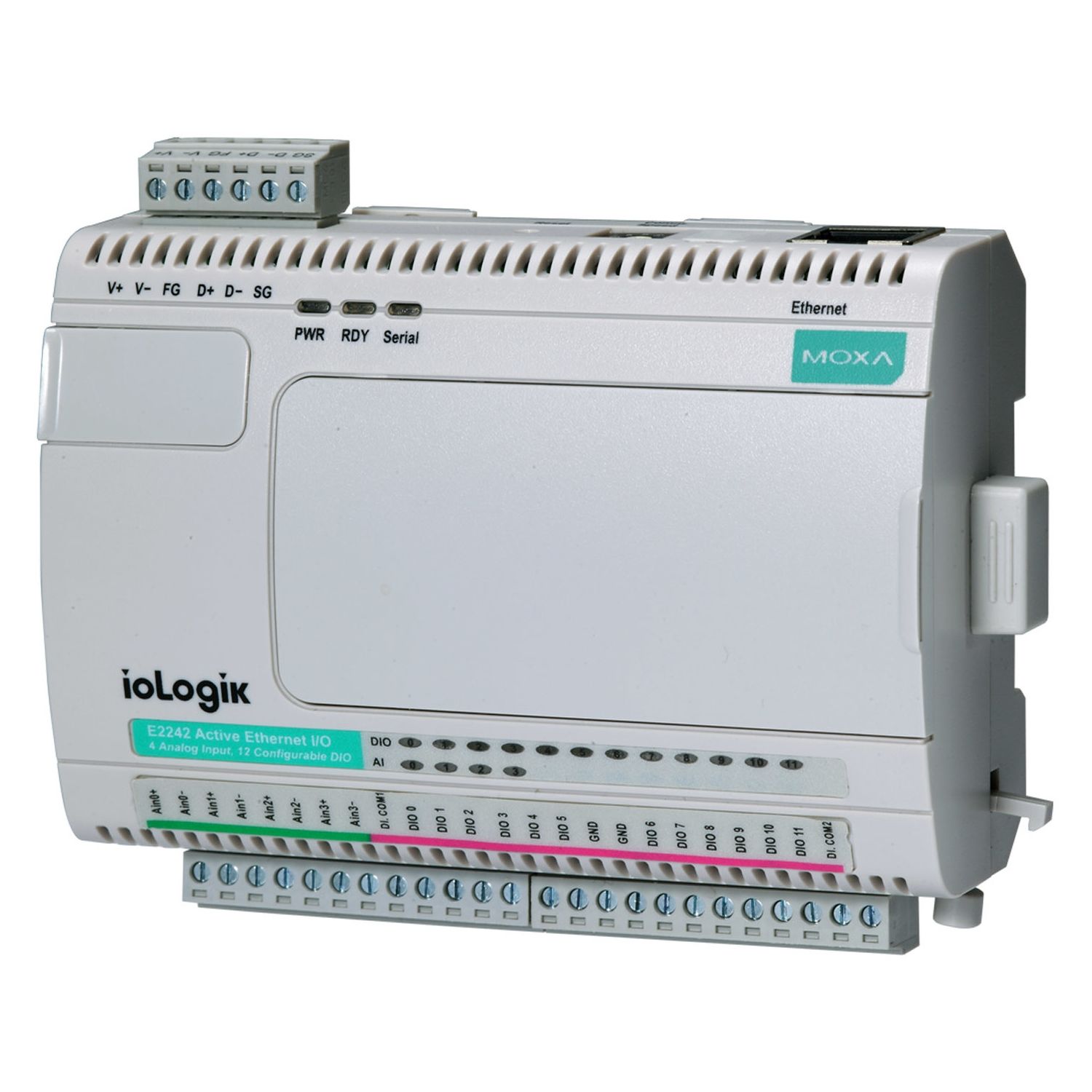

ioLogik E2242

4x AI, 12x configurable DIO, -10~60°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6271040 Produktové číslo: ioLogik E2242 Kategorie: Výrobce: MOXA
Poptat produkt
• Ethernet Micro RTU Controller with 4 analog inputs and 12 configurable DIOs
• Front-end intelligence that supports 24 Click&Go™ rules
• Active Messaging with real-time stamp, including SMS, SNMP Trap with I/O status, TCP, and email
• Supports SNMPv1/v2c/v3 protocol
• I/O peer-to-peer function
• Built-in web console
• PC utility: Auto detection of installed modules
• Windows/WinCE VB/VC.NET and Linux C APIs
• operating temperature: -10 to 60°C

Moxa’s ioLogik E2242 is a new type of is a new type of Ethernet micro RTU controller, which is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices. Unlike traditional RTUs, which are passive and must poll for data, Moxa’s Active OPC Server makes seamless connection with SCADA systems a reality In addition, SNMP is used for communicating with an NMS (Network Management System) for IT field users.


Konektor vstupů


Konektor výstupů


Počet kanálů


Typ vstupů

Analogové, Digitální

Typ výstupů

Analogové, Digitální


Stáhnout datasheet:
