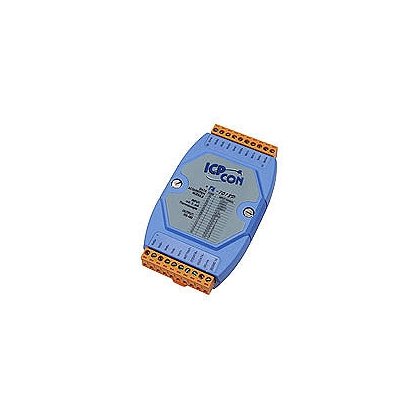

The I-7018P is an Analog Input module that features current and voltage input, as well as thermocouple input. The I-7018BL is a thermocouple input module. Both of the modules provide 8-channel differential or 6-channel differential and 2-channel single ended input that can be selected via a jumper, and all channels can be configured for the same input type. Note that an optional external 125 Îc resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +35 VDC overvoltage protection. The I-7018BL provides thermocouple open wire detection and the I-7018P provides support for two additional thermocouple types, L and M.
Features:
- 8-channel Differential Analog Inputs for M-7018
- 8-channel Differential or 6-channel Differential and 2-channel Single Ended for I-7018
- Current/Voltage/Thermocouple Input
- High Resolution: 16-bit
- 3000 VDC Intra-Module Isolation
- +/-35 VDC Overvoltage Protection
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
+4 kV to Power |
| ESD (IEC 61000-4-2) |
+2 kV Contact for each Terminal |
| Surge (IEC 61000-4-5) |
+0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
6 Differential and 2 Single-ended, or 8 Differential |
| Type |
Voltage
Current
Thermocouple |
| Sensor Type |
Thermocouple: J, K, T, E, R, S, B, N, C, L, M |
| Range |
Voltage: +15 mV, +50 mV, +100 mV, +500 mV, +1 V, +2.5 V
Current: +20 mA (requires an optional external 125 ? resistor) |
| Resolution |
16-bit |
| Accuracy |
+0.1% of FSR |
| Sampling Rate |
10 Hz |
| Input Impedance |
&> 400 k? |
| Common Voltage Protection |
+15 VDC |
| Overvoltage Protection |
+80 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 to 115200 bps |
| Data Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.0 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
