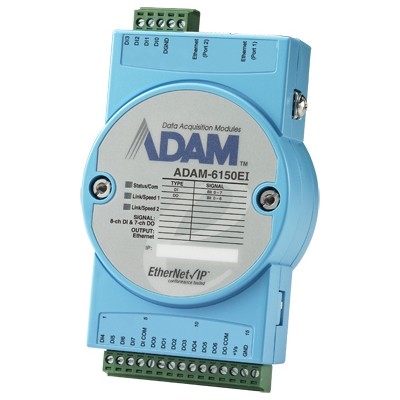

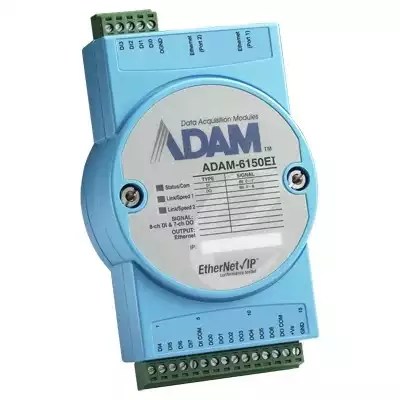

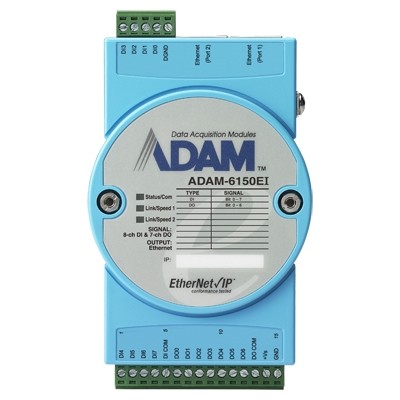

ADAM-6150EI-AE

15-ch Isolated DI/O EtherNet/IP Module

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GA5320520 Produktové číslo: ADAM-6150EI-AEKategorie: Výrobce: Advantech
Poptat produkt
• 15-ch Isolated Digital I/O EtherNet/IP Module
• EtherNet/IP protocol
• 8-ch digital input and 7-ch digital output (sink)
• Normal output current: 0.1 A (per channel)
• 2 x RJ-45 LAN (daisy chain)

Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6150EI, 15-ch isolated digital I/O EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
Hmotnost0,14 kg
Rozměry150 × 85 × 51 mm
Výrobce

Advantech

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

15

Typ vstupů

Digitální

Typ výstupů

Digitální

Datasheet

Stáhnout datasheet:
