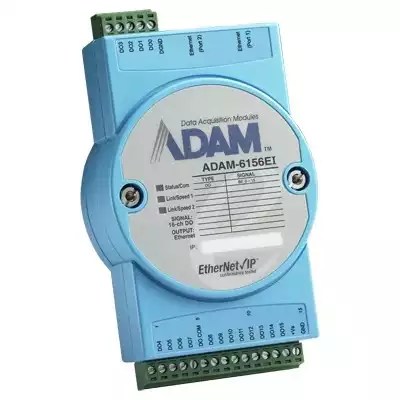

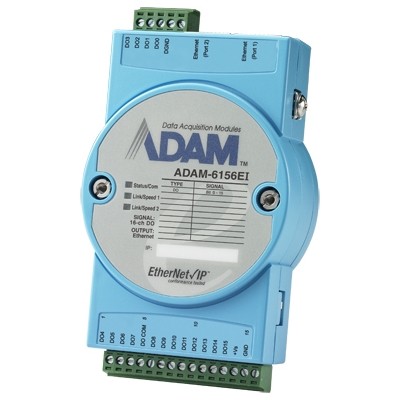

• 16-ch Isolated Digital Output EtherNet/IP Module
• EtherNet/IP protocol
• 16-ch digital input
• Normal output current: 0.1 A (per channel)
• 2 x RJ-45 LAN (daisy chain)
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6156EI, 16-ch isolated digital output EtherNet/IP module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
