• Isolated RTD Input Module
• 1000 VDC 3-way optical isolation
• Built-in microprocessor
• Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
• Switch configurable Pt and Ni RTD input ranges

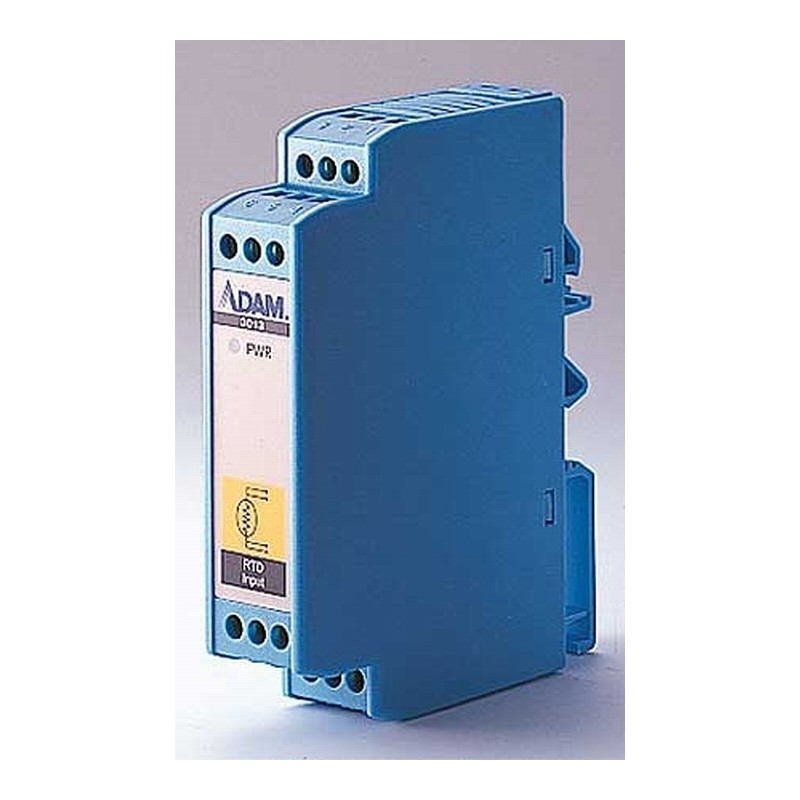

ADAM-3013 is a DIN-rail mounted, RTD input signal conditioning module with 1000 VDC 3-way isolation between input, output and power. The switch configurable input and output offers flexible, wide ranging capability for Platinum and Nichel RTDs. The input of the ADAM-3013 RTD input can be configured for any one of up to fourteen defined temperature ranges and two OEM-defined ranges. The output is linearized to the RTD temperature input and can be set for either 0~5 V, 0~10 V or 0~20 mA.
• 1000 VDC 3-way optical isolation
• Built-in microprocessor
• Switch configurable for 0~5 V, 0~10 V or 0~20 mA outputs
• Switch configurable Pt and Ni RTD input ranges
ADAM-3013 is a DIN-rail mounted, RTD input signal conditioning module with 1000 VDC 3-way isolation between input, output and power. The switch configurable input and output offers flexible, wide ranging capability for Platinum and Nichel RTDs. The input of the ADAM-3013 RTD input can be configured for any one of up to fourteen defined temperature ranges and two OEM-defined ranges. The output is linearized to the RTD temperature input and can be set for either 0~5 V, 0~10 V or 0~20 mA.
| Hmotnost | 0,12 kg |
|---|---|
| Rozměry | 117 × 90 × 28 mm |
| Výrobce | Advantech |
| Konektor vstupů | Svorkovnice |
| Konektor výstupů | Žádné |
| Počet kanálů | 1 |
| Typ vstupů | Jiné |
| Typ výstupů | Žádné |
Datasheet
Stáhnout datasheet:
adam-3013-ae.pdf
