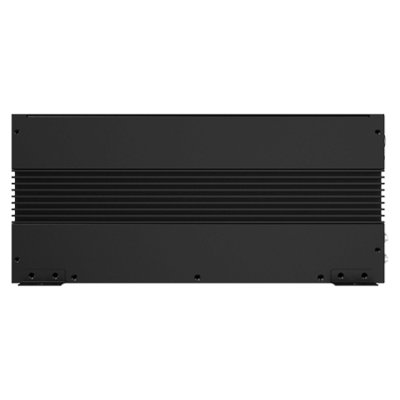

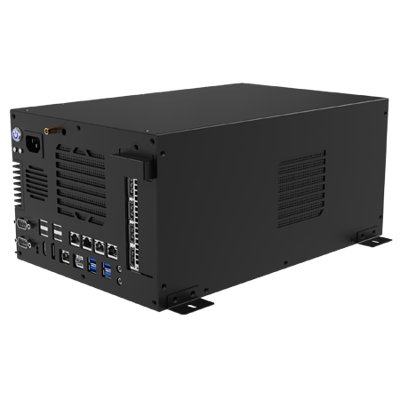

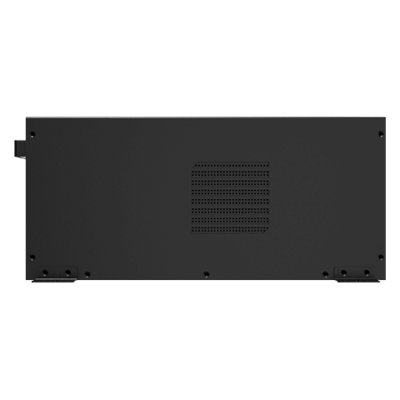

Intel® 12th/ 13th Gen Core™ Processor with NVIDIA® RTX™ GPU Industrial Edge AI Computer
Vlastnosti:
- Supports Intel® 12/13th generation Alder LakeS/Raptor Lake S processor (LGA 1700)
- Supports single NVIDIA RTX™A4000/A5000/A6000 GPU
- Up to 2 x 262pin SODIMM DDR5 4800MHz up to 64GB(32GB per Slot)
- 2 x Intel 2.5 Gigabit LAN. Optional addtional 4 Gigabit LAN.
- Supports Two display, 1 x HDMI 2.0, 1 x DP 1.4a
- Supports Intel® vPro
- Rugged Design, -40°C to 60°C operation (Optional)
System Specification
| Processor | Intel® Core™ i3-12100TE(up to 4.00GHz) Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i3-13100TE(up to 4.10GHz) (Optional) Intel® Core™ i5-13500TE(up to 4.5GHz) (Optional) Intel® Core™ i7-13700TE(up to 4.8GHz) (Optional) Intel® Core™ i9-13900TE(up to 5.0GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 675.4 x 413.4 x 64.5 mm |
| Weight | 10.4 kg |

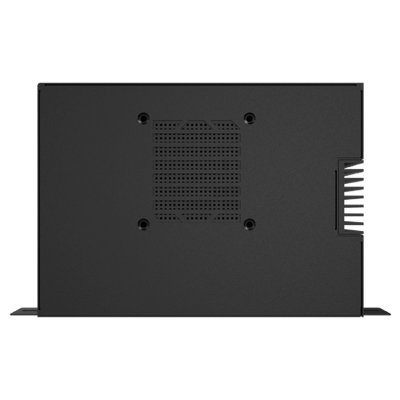

| Mounting | VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fan design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 50°C -40°C to 60°C (Optional) |
| Storage Temperature | -20°C to 60°C -40°C to 70°C (Optional) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
Certification
| Certification | CE, FCC |

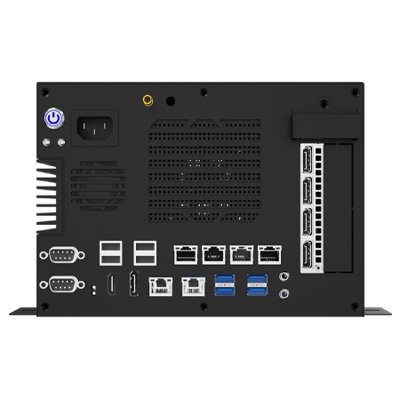

IO Ports
| Power Input | 1 x 3 Pin AC Plug |
| USB Port | 4 x USB3.2 Gen 2×1 (Type-A) 4 x USB3 2.0 Gen 2×1 (Type-A) (Optional) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Optional) 1 x RS232 (Optional) |
| SIM Card Slot | 1 x Nano SIM Card Slot (Optional) |
| Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
| Audio | Mic in Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe 5.0 (x16) slot |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector 4 x Giga LAN RJ45 Connector (Optional) |
Control
| Button | 1 x Power Button with LED Indicator 1 x Clear CMOS Button 1 x Reset Button |
Accessory
| Accessory | Power Cord Desk Mount Bracket |
