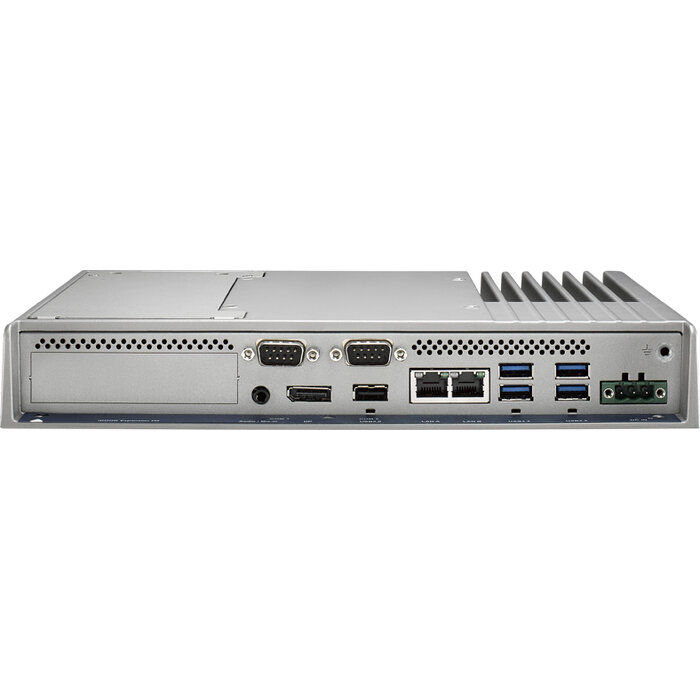

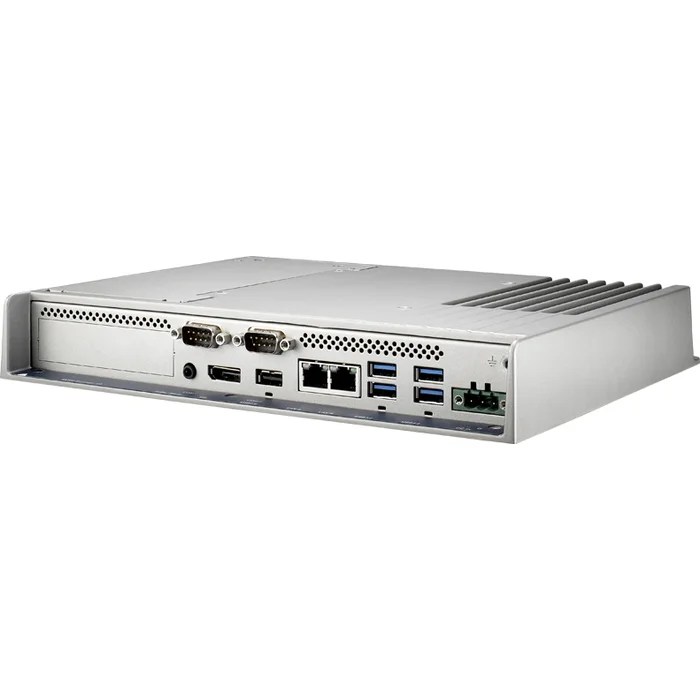

TPC-B510-853BE

Modular TPC Box, Core i5-8365UE , 8G RAM

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 26 ks

- +
Porovnat
Porovnat
Číslo zboží: GAX0008847 Produktové číslo: TPC-B510-853BEKategorie: Výrobce: Advantech
Poptat produkt
Modular Series -Computing/Monitor Box Modules with 8th Gen. Intel® Core™

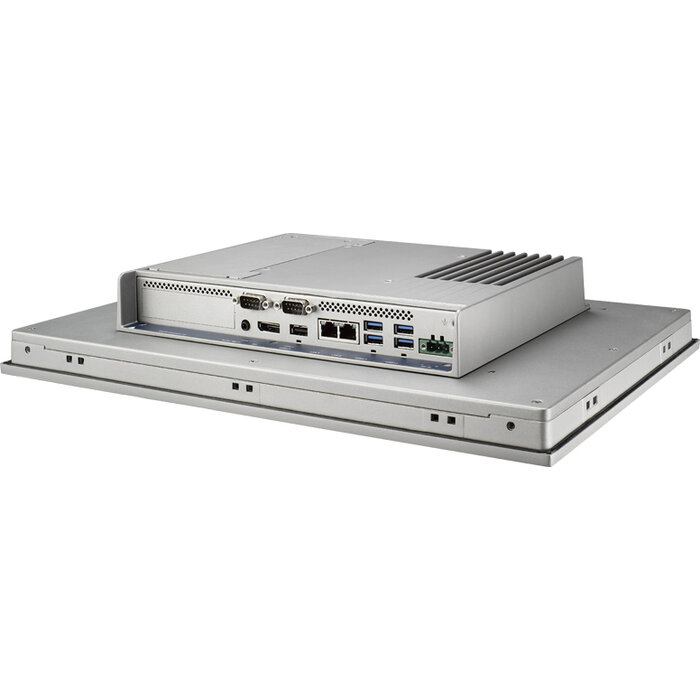

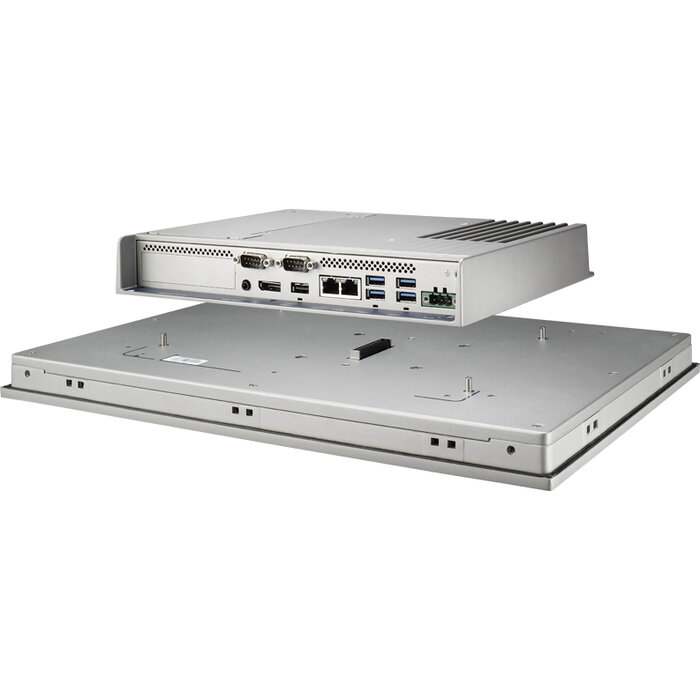

TPC-B510 is powered by 8th Gen. Intel Core i3/i5/i7, delivering high performance as a powerful control panel. It features bountiful I/Os, expansions with M.2 NVME SSD. Paired with modular FPM-Display module, an IP66-grade powerful Modular Panel PC ranging from 12.1" to 23.8" is born.

Vlastnosti:
  • Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
  • Dual channel memory slots support up to 32GB in total
  • Compact, fanless embedded system with chassis grounding protection
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security
  • Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" & 19" features 5-wire resistive touch)
Hmotnost4,5 kg
Rozměry380 × 350 × 195 mm
Výrobce

Advantech

Certifikace

Žádná

DisplayPort

1

Gigabit LAN

2

Použití

Neurčeno

Procesor

Core i5

RS-232/422/485 (kombinovaný)

2

USB 2.0

1

USB 3.0

4

Datasheet

Stáhnout datasheet:
