UNO-1372GH-E3AE

C1D2 -Atom QC 1.91GHz, 4GB DDR, iDoor, 3LAN, 2CO

Pro zobrazení cen se prosím přihlaste.

Na objednávku (skladem u dodavatele)

- +
Porovnat
Číslo zboží: GAX0004916 Produktové číslo: UNO-1372GH-E3AE Kategorie: Výrobce: Advantech
Poptat produkt

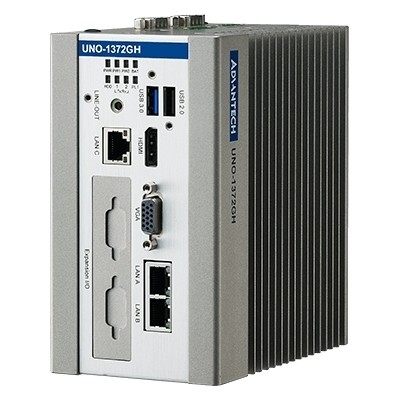

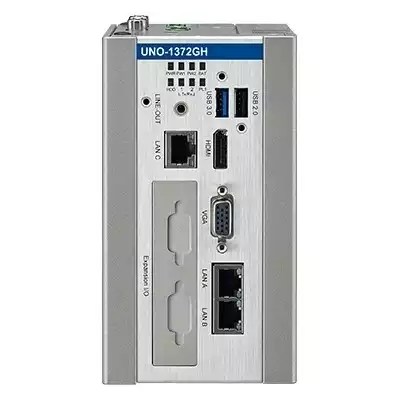

Class I, Division 2 Certified Intel(R) Atom(TM) Quad-Core Control DIN-rail PC

In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1372GH is designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D T4A certification. The UNO-1372GH is an Intel Atom DIN-rail PC which features an innovative iDOOR Technology for automation applications. It provides rich I/O include 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor,8 x DIO, all of them can be locked with system by lockable kit to make sure spark-free in harsh environment.

Vlastnosti:
  • UL listed for Hazardous Locations: Class I, Division 2
  • Intel(R) Atom E3845 1.91GHz processor with 4GB DDR3L Memory
  • 3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2mPCIe, 1 x SATA, 8 x DIO, 1 x Power Terminal
  • Spark-free design with lockable I/O kit
  • Dual Power Input for Reducing Power Down Time
  • Exchangeable RTC Battery with easy Access on the Top
  • Digital I/O with Isolation Protection for Sensing and controlling
  • Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
  • 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology as a Communication Gateway
  • Supports MRAM by iDoor Technology
  • Chassis Grounding Protection
  • LAN Redundancy (Teaming)
Hmotnost 1.6 kg
Rozměry 265 × 225 × 270 mm
Výrobce

Advantech

Certifikace

ATEX

Gigabit LAN

3

HDMI

1

Použití

Neurčeno

Procesor

Atom

RS-232

1

RS-422/485 (kombinovaný)

1

USB 2.0

2

USB 3.0

1

VGA

1

Datasheet

Stáhnout datasheet:
