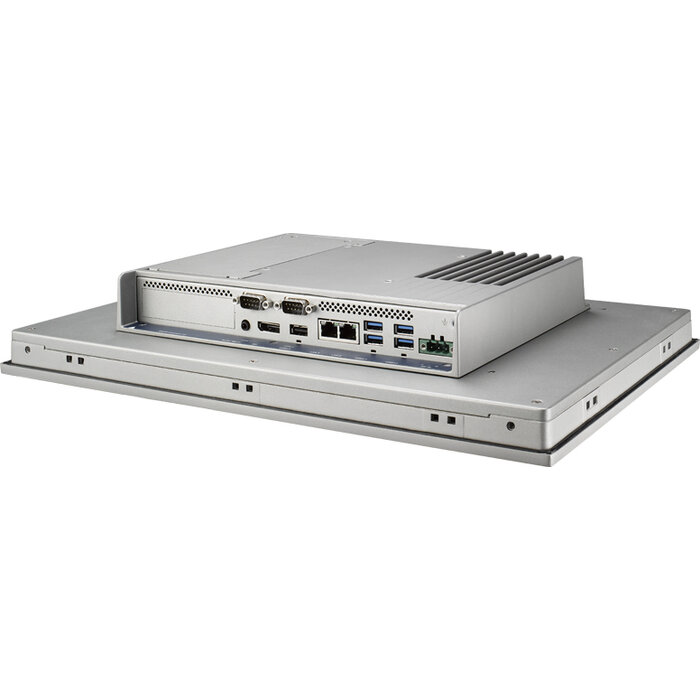

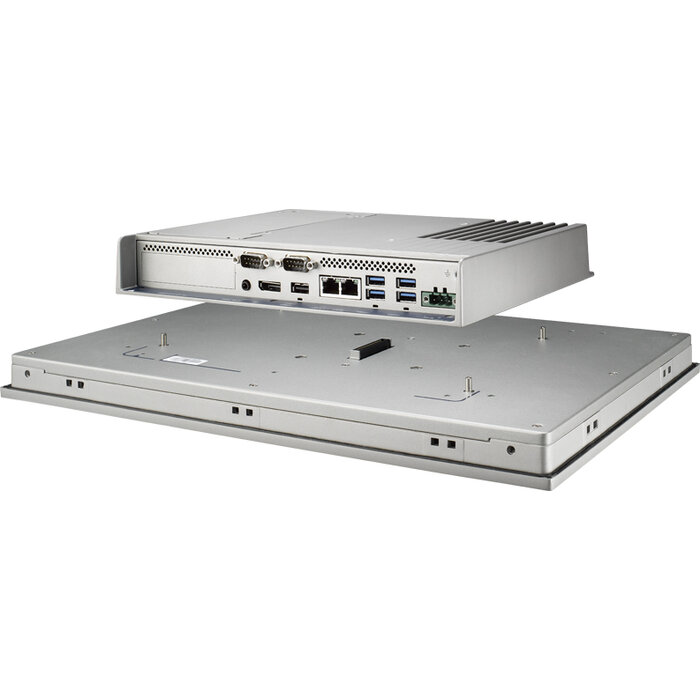

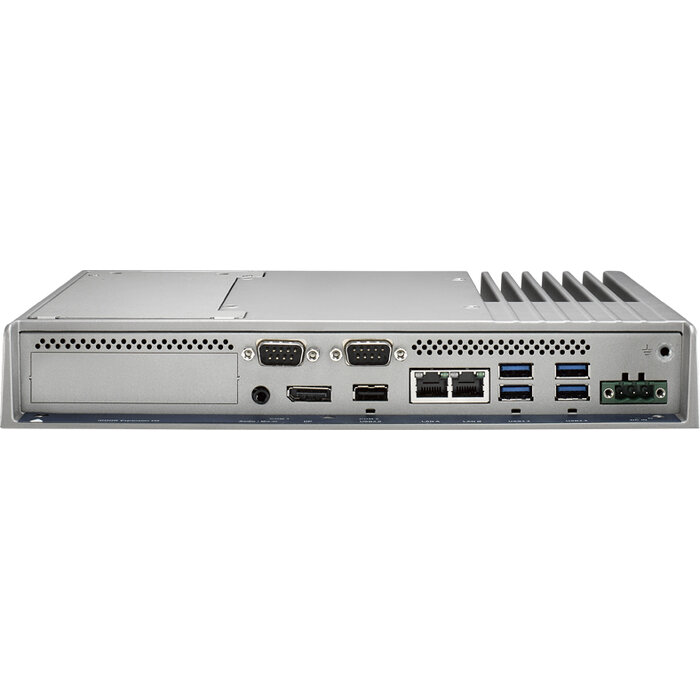

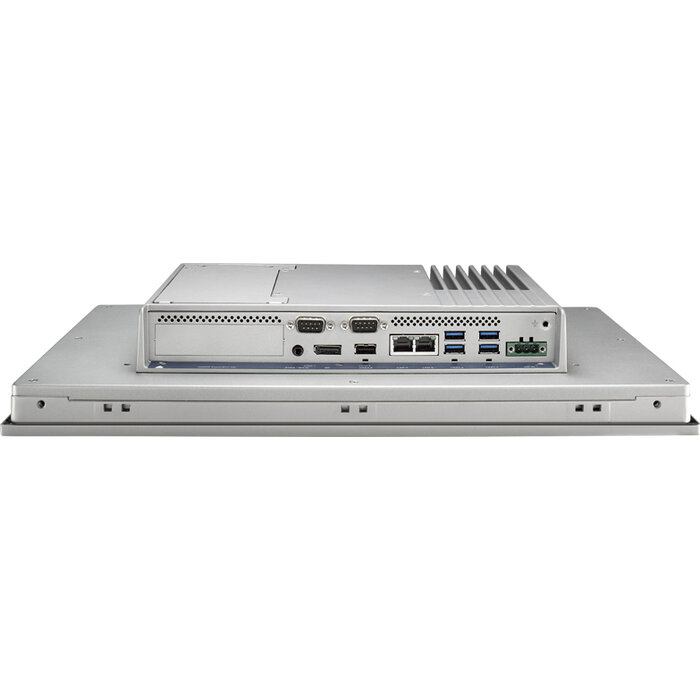

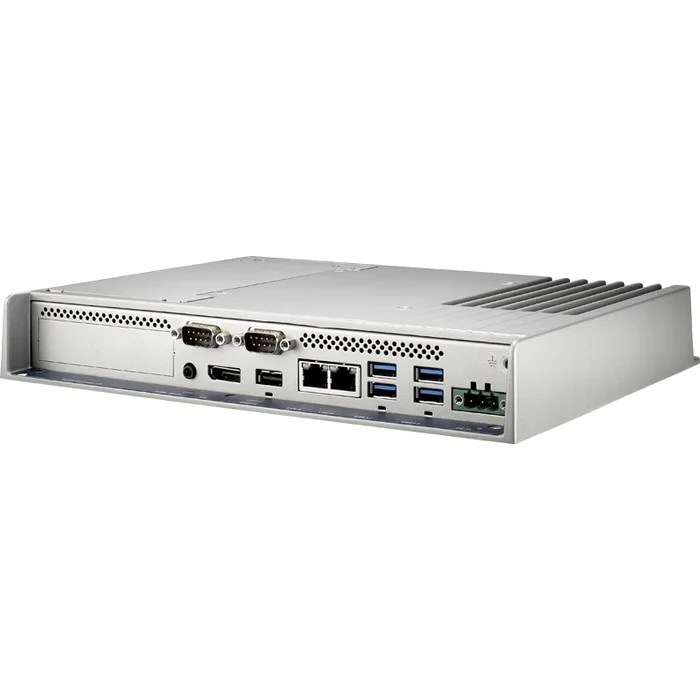

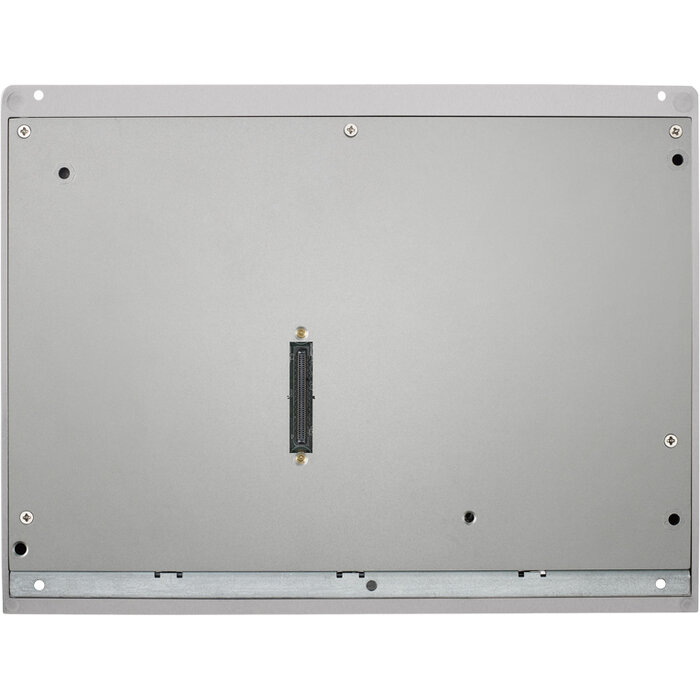

Modular Series -Computing/Monitor Box Modules with 8th Gen. Intel® Core™
TPC-B510 is powered by 8th Gen. Intel Core i3/i5/i7, delivering high performance as a powerful control panel. It features bountiful I/Os, expansions with M.2 NVME SSD. Paired with modular FPM-Display module, an IP66-grade powerful Modular Panel PC ranging from 12.1" to 23.8" is born.
Vlastnosti:
TPC-B510 is powered by 8th Gen. Intel Core i3/i5/i7, delivering high performance as a powerful control panel. It features bountiful I/Os, expansions with M.2 NVME SSD. Paired with modular FPM-Display module, an IP66-grade powerful Modular Panel PC ranging from 12.1" to 23.8" is born.
Vlastnosti:
- Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 32GB in total
- Compact, fanless embedded system with chassis grounding protection
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" & 19" features 5-wire resistive touch)
| Hmotnost | 4,5 kg |
|---|---|
| Rozměry | 433 × 240 × 55 mm |
| Výrobce | Advantech |
| Certifikace | Žádná |
| DisplayPort | 1 |
| Gigabit LAN | 2 |
| Použití | Neurčeno |
| Procesor | Core i7 |
| RS-232/422/485 (kombinovaný) | 2 |
| USB 2.0 | 1 |
| USB 3.0 | 4 |
Datasheet
Stáhnout datasheet:
tpc-b510-873be.pdf
