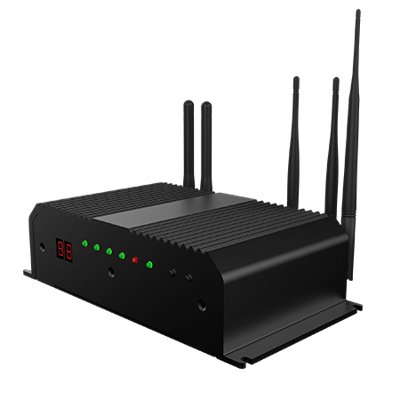

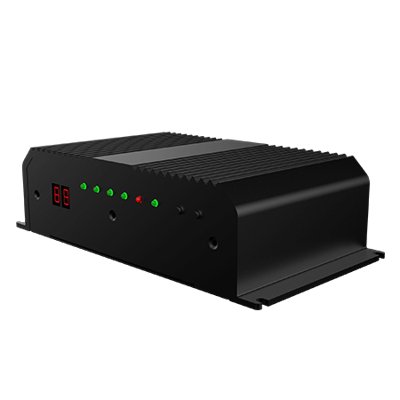

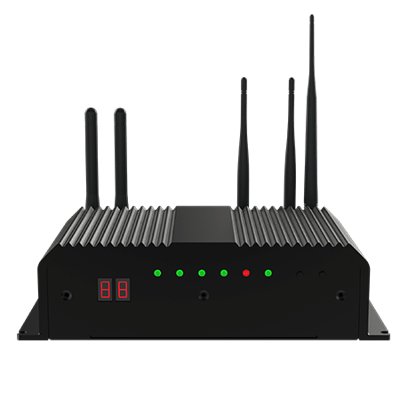

Radio Gateway
Vlastnosti:
- Wireless Connection(4G/ WLAN) Radio Gateway
- Secured Recording(Inbox/ Larzio Cloud)
- Radio Interoperability (Narrowband and Broadband)
- Migrate existing analog or digital radio systems with ease
Router Management
Router Management | Web Based Configuration HTTPS Web Software Upgrade Configuration Backup and Restore Reset to Default Button |
IP Network Spec
Network Security Specifications | HTTPS |
WAN | Static IP, DHCP |
Network Protocol Support | SIP Client, NTP Client, DNS Client, Web Server,DHCP Server, SSH Server |
IPv4 | Support |

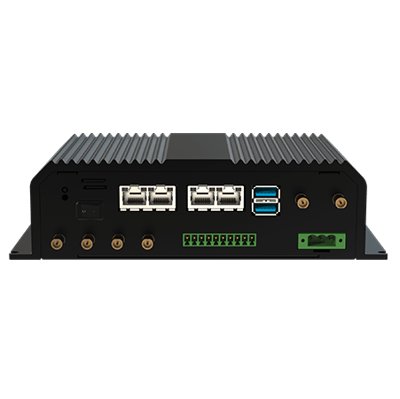

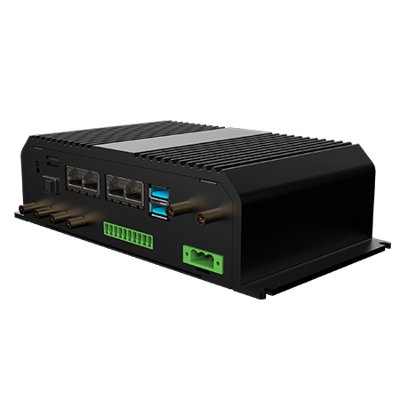

IO Ports
USB Port | 2 x USB 3.0 |
SD Card Slot | 1 x Micro SD Card Slot |
SIM Card Slot | 1 x SIM card slot |
Indicator | Radio, WAN, LAN, Register, Alarm, Power |
DIDO | DIDO (4XDI ; 4XDO) |
RJ-45 | 1 x WAN 1 x LAN 2 x Radio |
Certification
Certification | CE, FCC |
Power
Power Rating | 9~36V DC input(Terminal Block) |
System Specification
Memory | 4GB RAM |
Storage | 64GB SSD |
Operating System | Ubuntu |
RF Spec
Frequency Range | VHF:134~174MHz or UHF:400~470 MHz |
LTE Band | B1/B3/B5/B7/B8/B20/B28/B32 |
WLAN | Support |
Mechanical
Dimension | 205 x 110 x 55 mm |
Mounting | VESA Mount |
Enclosure | Metal |
Transmitter Spec
TX Power | 4W |
RX Sensibility | ≤-121dBm |
Channel Spacing | Analog: 12.5KHz / 25kHz , Digital: 12.5KHz |
Environment
Operating Temperature | 0~60°C |
Vibration | MIL-STD-810G Method 514.6 |
Control
Button | 1 x Power Switch (On/ Off) 2 x Button (Change Channels) |
