W22IB3S-SPA3

21.5″ Flat Stainless PPC, 1920×1080,Celeron N2930

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW51300125 Produktové číslo: W22IB3S-SPA3 Kategorie: Výrobce: Winmate
Poptat produkt

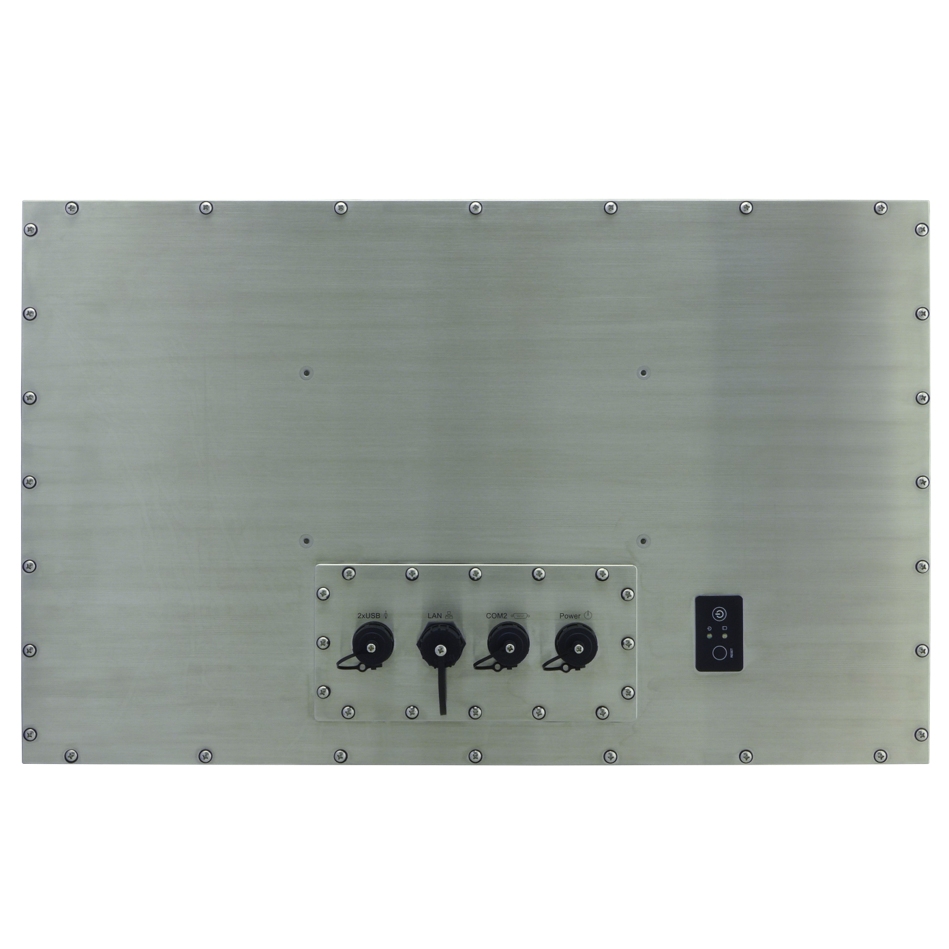

21.5 IP65 Flat Stainless P-CAP Panel PC


Features

  • Intel® Celeron Bay Trail-M N2930 1.83 GHz Processor
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Sealed to IP65 for protection against water and dust
  • A true flat, easy-to-clean front surface with edge-to-edge design
  • Flat multi-touch panel pc with superior readability and P-Cap technology
  • Various mounting solutions, Yoke mount and VESA mount
  • Plenty of I/Os including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
  • Waterproof ports with adapter cables for external connectivity
  • Support Glove / Rain mode (Optional)

  • LCD PaneláSpecification

    Size21.5″
    Contrast Ratio3000 : 1 (typ.)
    Panel Brightness250 cd/m2 (typ.)
    Viewing Angle-89~89(H);-89~89(V)
    RecommendáResolution1920 x 1080
    Touch ScreenProjected Capacitive Multi-touch
    Optional anti-glare coating
    Maximum Colors16.7M

    SystemáSpecification

    ProcessorIntel® Celeron Bay Trail-M N2930 1.83GHz
    ChipsetIntel® Atom SoC Integrate
    Memory1 x SO-DIMM, Default 4GB, Max 8GB
    DDR3L 1600
    BIOSAMI 16Mbit Flash
    Ethernet2 x RJ45 Gigabit LAN (1 x RJ45 internal)
    AudioBuilt in ALC886 HD Audio Codec
    Serial4 x RS232 (3 x RS232 internal)
    USB6 x USB2.0 (4 x USB internal)
    SDD Interface1 x Mini PCIe SSD
    ExpansionáSlots1 x Mini PCIe (Internal)
    StorageDefault 64GB

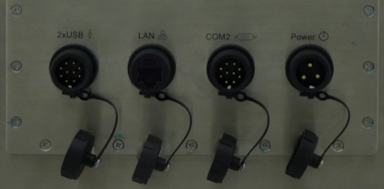

    I/O Connectors

    USB Port2 x USB Type-A Receptacle
    Ethernet1 x RJ45 – 10/100/1000 Mbps
    SecurityTrusted Platform Module (TPM 1.2)
    COM Port1 x RS232

    Mechanical and Environment

    Power InputDC-IN (Lockable, Power Jack)
    Operating Temperature0 deg.C to 45 deg.C
    Operating Humidity30% to 90% (non-condensing)
    CertificationsCE, FCC, RoHs

    Power

    Power Input12V DC IN (Lockable Power Jack)
    Power Consumption56W (typ.)(Max.backlight & high CPU load)

    Order Options

    RAMODIMM DDR3L Max 8GB
    StorageMini PCIe SSD
    OSWindows 10 IoT Enterprise
    Windows Embedded 8.1 Industry Pro
    Windows Embedded 8 Standard
    Windows Embedded 7 Standard

    Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Nerezové provedení

    Ano

    Procesor

    Celeron

    Rozlišení

    1920 x 1080

    Stupeň krytí

    IP65

    Úhlopříčka

    21"

    Datasheet

    Stáhnout datasheet:
