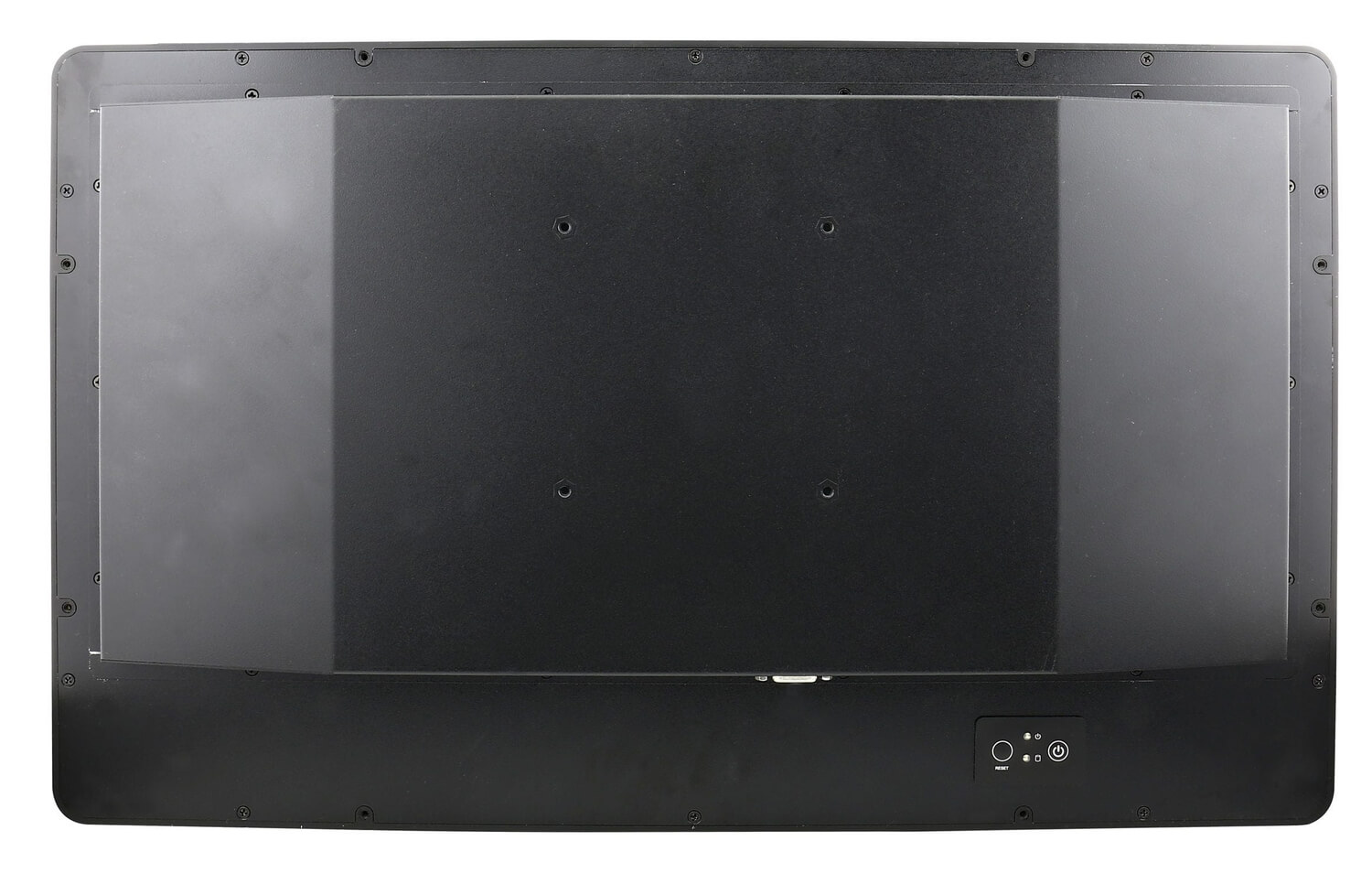

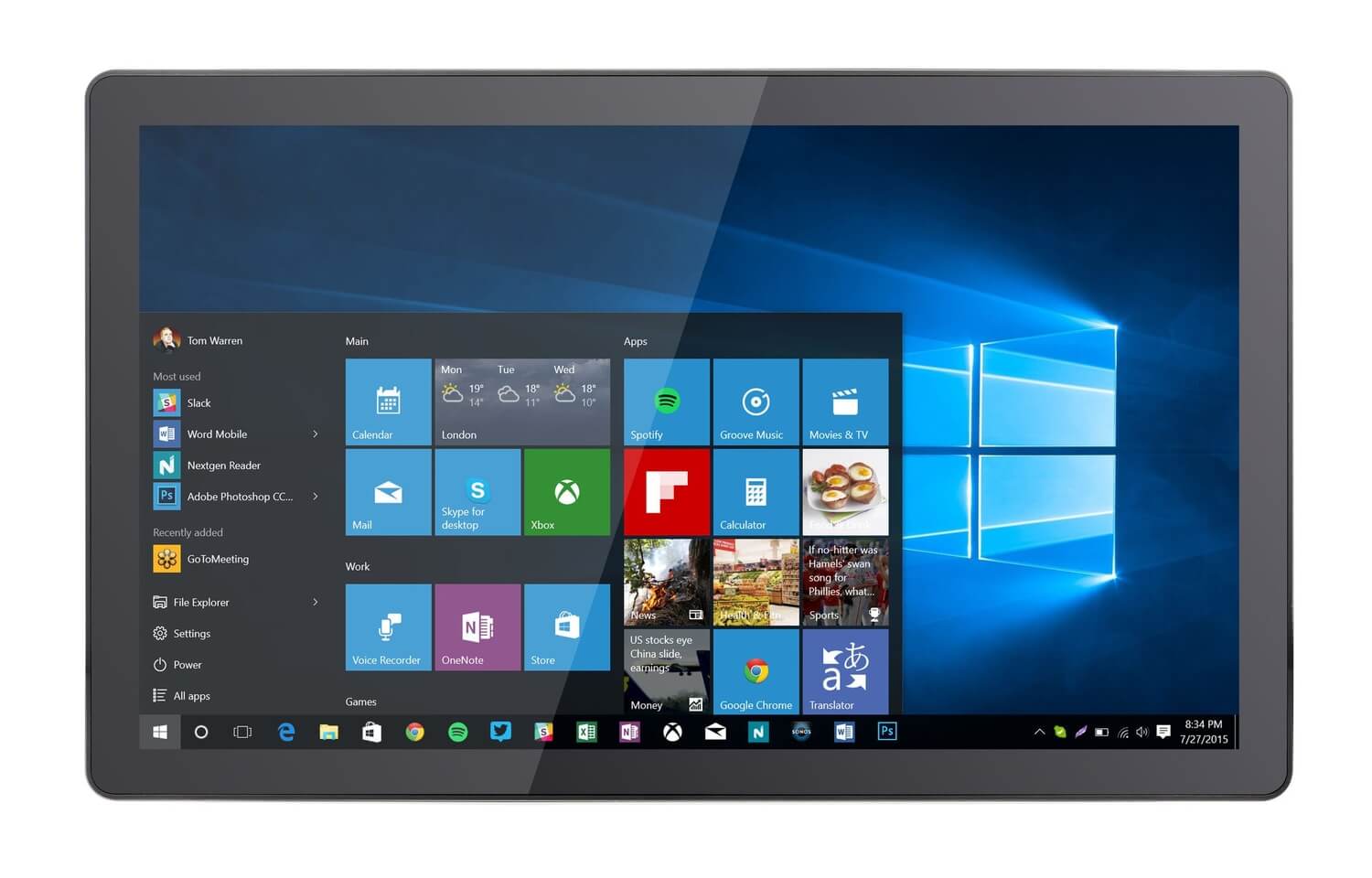

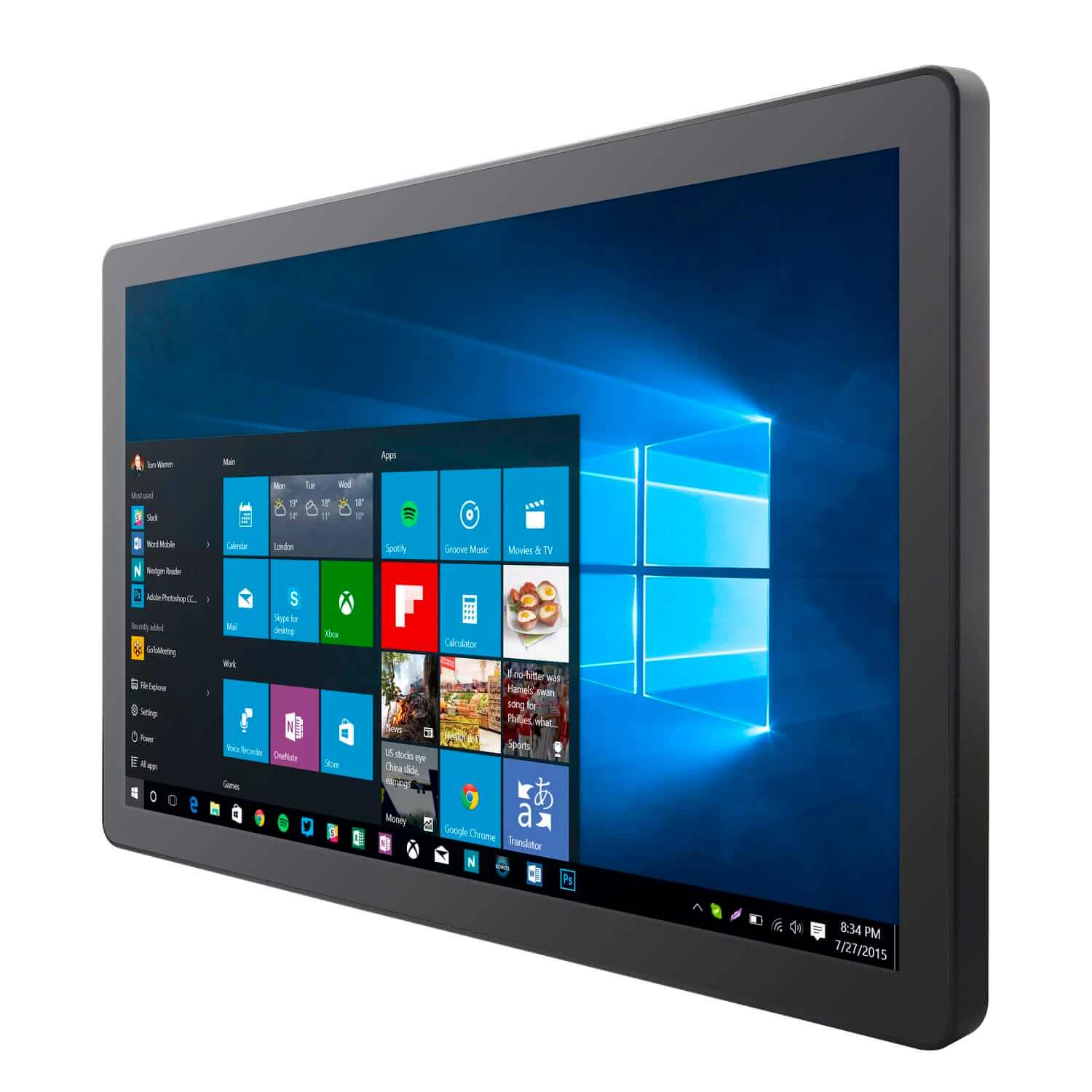

W24IP3S-GCA2

23.8″ G-Win Slim Panel PC, Intel Pentium N4200, 2GB RAM, 64GB SSD, 1920×1080, P-Cap touchscreen, front IP65

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31122480 Produktové číslo: W24IP3S-GCA2Kategorie: , Výrobce: Winmate
Poptat produkt

The elegantly designed, yet rugged, industrial grade G-WIN GC series is designed for tractors, agricultural and other heavy duty vehicles. With rugged construction, ultimate computing power, GC series are guaranteed to meet “heavy duty” needs. This series feature high computing power and user-friendly interface with projected capacitive multi-touch (P-CAP) technology.

Features:

  • 23.8″ 1920 x 1080 PCAP touchscreen
  • Intel® Pentium® N4200 Apollo Lake Processor
  • Fanless cooling system and ultra low power consumption
  • Front IP65 water and dust proof
  • A true flat, easy-to-clean front surface with edge-to-edge design

LCD Panel Specification

Size23.8” TFT
Resolution1920 x 1080
Contrast Ratio3000 : 1 (typ.)
Panel Brightness250 cd/m (typ.)
Viewing Angle-89~89(H);-89~89(V)
Touch ScreenProjected Capacitive Multi-Touch
Maximum Colors16.7M

System Specification

ProcessorIntel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
Memory2GB DDR3L 1866 SO-DIMM (Optional 8 GB)
Storage64GB M.2 SSD (Default)
OS SupportWindows 10 IoT Enterprise
LANDual Intel® I210-AT GbE LAN

I/O Connectors

Serial1 x RS-232/422/485
USB Port2 x USB 3.0
Ethernet1 x RJ-45-10/100/1000 Mbps, 1 x RJ-45

Mechanical and Environment

Operating Temperature0 °C to 50 °C
Operating Humidity10% to 90% (non-condensing)
MountingVESA Mount (100x100mm)
Dimension (W x H x D)588 x 358 x 55 mm
IP ProofFront IP65

Product Spec

Security SupportTrusted Platform Module (TPM 2.0)

Power

Power Input12V DC in
Power Consumption29 W
Rozměry588 × 358 × 55 mm
Výrobce

Winmate

Dotyková technologie

Kapacitní

Procesor

Pentium

Rozlišení

1920 x 1080

Stupeň krytí

Front IP65

Typ

Standardní

Úhlopříčka

24"

Datasheet

Stáhnout datasheet:
