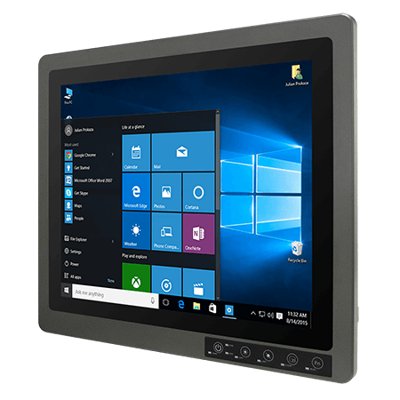

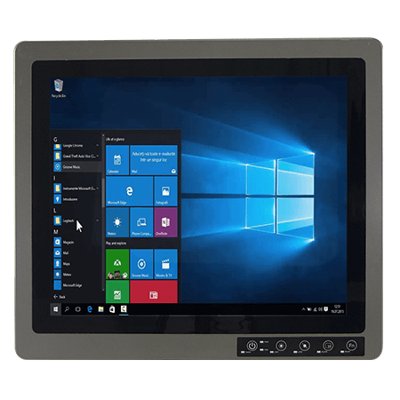

19" Intel® Core™ i5-1135G7 G-WIN Full IP67 Series Panel PC
Vlastnosti:
- Totally sealed Full IP67 Design
- High performance / low power 11th Generation (Tiger Lake) Intel® Core™ i5-1135G7 2.4GHz (turbo to 4.2GHz)
- 19-inch sunlight viewable 400 nits LCD panel (Optional for 1000 nits High Brightness)
- -10 to 55°C wide operating temperature
- Fanless, streamlined enclosure for highly efficient heat dissipation
- Touch screen control button to enable/disable touch screen interface
- Rugged Front Anti-Impact Design
- Front controll membrane keys Lockable by software
- Optical Bonding with Panel & Touch Screen to increase the clarity and transparency
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Display
| Resolution | 1280×1024 |
| Size | 19.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 400 nits 1000 nits(Optional) |
| View Angles | 85,85,80,80 |
| Active Area | 376.32×301.06 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Optional function | High brightness Panel for sunlight readable (Optional) |
Mechanical
| Dimension | 474 x 410 x 111 mm |
| Weight | 9.8 kg |
| Mounting | Panel mount VESA Mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
| Cut out | 462 x 386 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C -40°C to 70°C (with intelligent heater) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 1 x Waterproof USB Type-A Connector with cover |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage 1 x LED Indicator for heater 1 x LED Indicator for LAN 1 x LED Indicator for lock touch |
Control
| Button | 1 x Power Button 1 x Brightness up Button 1 x Brightness down Button 1 x Button for locking touch function 1 x Programmable function key |
Accessory
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter Mounting clips VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
