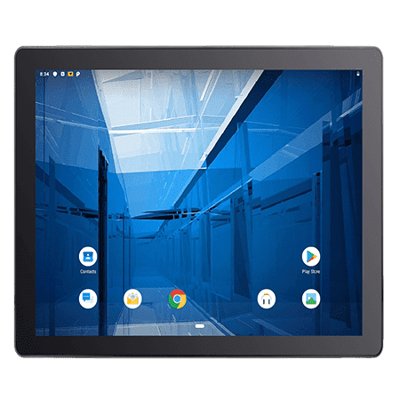

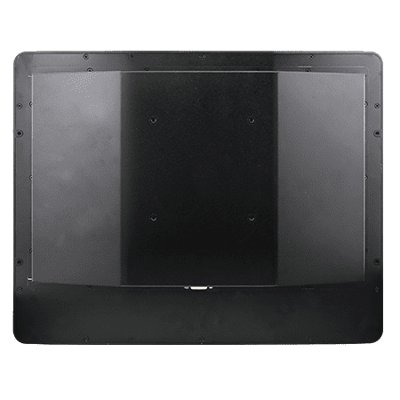

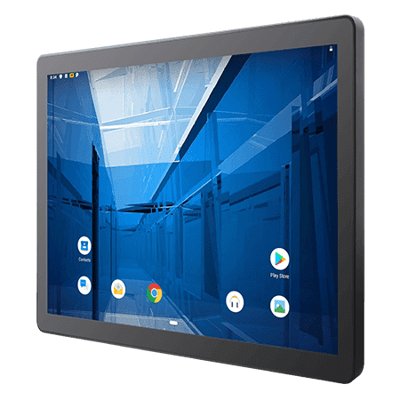

19" ARM A53 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/O, including 1 x Micro USB, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45; 1 x Micro SD Slot; 1 x Micro HDMI (Optional)
- Support Android or Linux operating system
Display
Resolution | 1280×1024 |
Size | 19.0 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 250.0 nits |
View Angles | 85,85,80,80 |
Active Area | 376.32×301.06 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | ARM A53 (Quad Core 2.0GHz) |
Memory | 4GB LPDDR4 |
Storage | eMMC: Onboard 32 GB |
Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu Server 22.04 (Optional) |
Mechanical
Dimension | 445 x 370 x 51 mm |
Mounting | Panel Mount VESA Mount |
Enclosure | Metal Housing with Plastic Bezel |
Cooling System | Fanless Design |
Cut out | 388x280mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
Video | 1 x Micro HDMI Output (Optional) |
Audio | 2 x Speaker (Optional) |
LAN | 1 x LAN 10/100/1000 Mbps |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Power
Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
Adapter | 12V 84W |
Control
Button | 1 x Power Button (Optional) |
