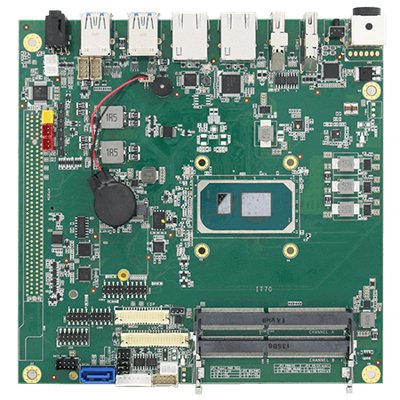

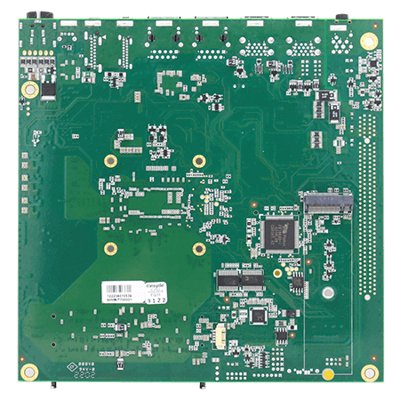

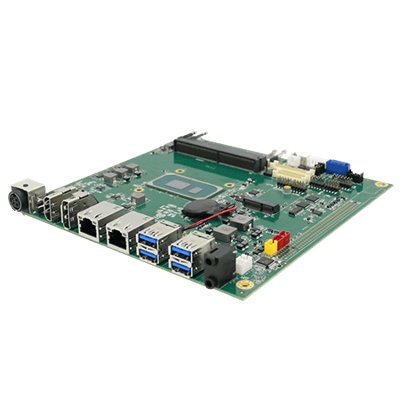

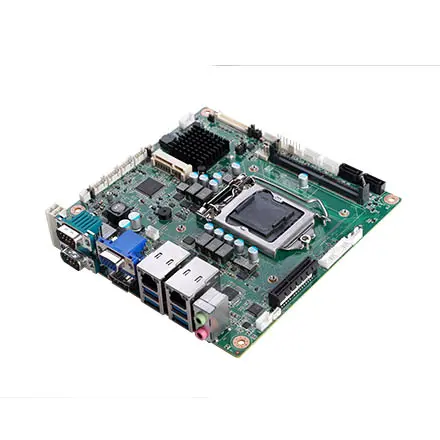

Intel® Core™ i5 Mini-ITX Embedded PC Board
Vlastnosti:
- Mini-ITX Form Factor (170 x 170 mm)
- Intel® 11th Generation Core™ i5 processor Mini ITX Embedded PC Board
- Support UHD 4 lans eDP Panel
- 2 × DDR4 3200 MHz SO-DIMM (Max. 64 GB)
- Integrated Dual Gigabit Ethernet
- 1 x SATAIII, 4 x USB 3.2, 4 x USB 2.0
System Specification
Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
Audio | Mic in Line out |
Expansion Port | 1 x M.2 2242/2280 Key M slot for SATA/NVMe SSD 1 x M.2 2230 Key E slot for WiFi (Optional) |
LAN | 2 x Giga LAN RJ45 Connector |
Internal IO Ports
Power input | 1 x 6pin(1×6) for 12V DC in |
Power output | 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
USB | 2 x 8pin(2×4) for 4 x USB2.0 |
Serial port | 2 x 10pin(2×5) for RS232 2 x 10pin(2×5) for RS232/422/485 |
Display | 1 x 40pin DF13 connector for LVDS 1 x 40pin DF13 connector for eDP(Support the UHD, 4 lans eDP) (Optional) |
Backlight | 1 x 7pin(1×7) for panel backlight |
SATA | 1 x SATA III 1 x 8pin(2×4) for SATA power (SATAIII is only available when M.2 NVMe is not in use) |
DIDO | 1 x 14pin(2×7) for Digital input/output |
VR | 1 x 3pin(1×3) for Digital panel backlight brightness control 1 x 3pin(1×3) VR/Software brightness switch jumper 1 x 3pin(1×3) PWM/DC brightness switch jumper 1 x 3pin(1×3) 3.3V/5V PWM Level switch jumper |
Fan | 1 x 3pin(1×3) for CPU Fan 1 x 3pin(1×3) for System Fan |
OSD | 1 x 10pin(2×5) for OSD control |
Speaker | 2 x 2pin(1×2) for Speaker |
Backup battery | 1 x RTC battery holder |
BIOS debug | 1 x 10pin(2×5) for LPC debug |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 170 x 170 mm |
Environment
Operating Humidity | 10% to 95% RH, Non-Condensing |
Operating Temperature | 0°C to 60°C |
Storage Temperature | -40°C to 70°C |
Accessory
Optional Accessory | Driver CD & Manual (Optional) Adapter (Optional) |
