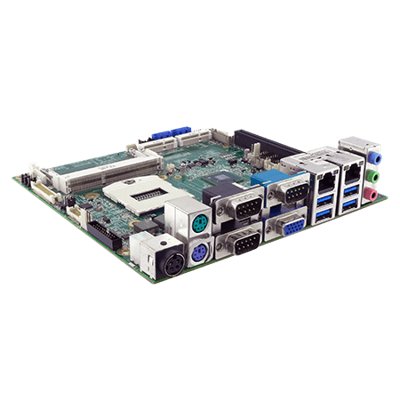

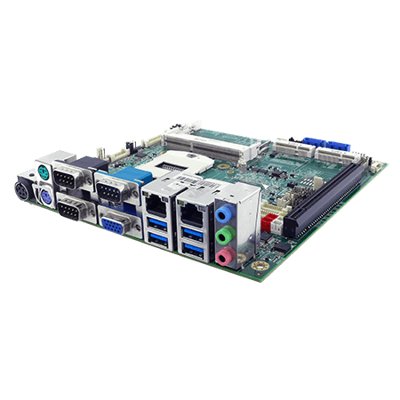

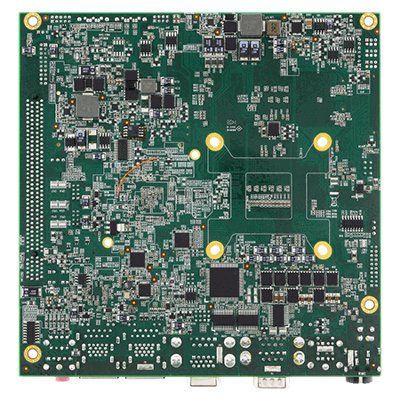

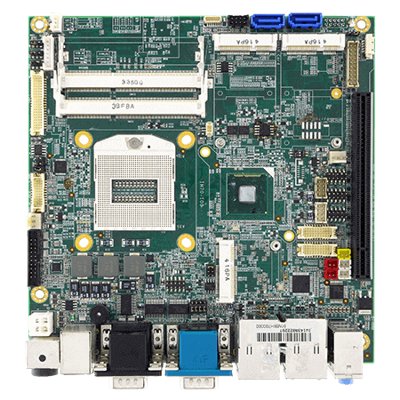

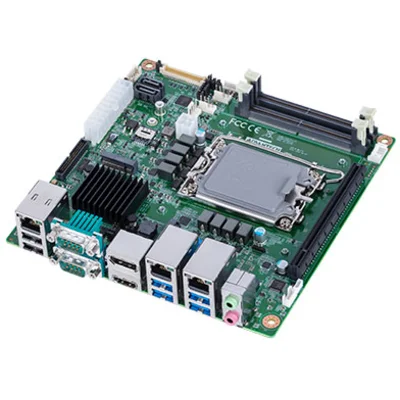

Intel® Core™ i7/i5/i3 Mini-ITX Embedded Board
Vlastnosti:
- 3rd Gen. Intel® Core™ i7/i5/i3
- Up to 16 GB DDR3 1333/1600
- 2 x RJ-45 GigaLAN, 2 x RS-232, 4 x USB 3.0
- Dual-channel 24-bit LVDS, VGA, HDMI (Optional), DVI
- Expansion 2 x Mini PCIe, 1 x PCI-E (x16)
- Form Factor Mini-ITX (170 x 170 mm)
System Specification
| Processor | Intel 3rd. generation ® Ivy Bridge i7/i5/i3 |
| Chipset | Intel® HM76 Intel® QM77 (Optional) |
| Memory | 2 x SO-DIMM, DDR3 1333/1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional) 1 x SATA II SSD / HDD, 1TB / 500GB (Optional) 1 x SATA III SSD / HDD, 1TB / 500GB (Optional) |
| Ethernet controller | 2 x Broadcom Ethernet Controller BCM57780 |
| Operating System | Windows 7 Embedded Systems (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |

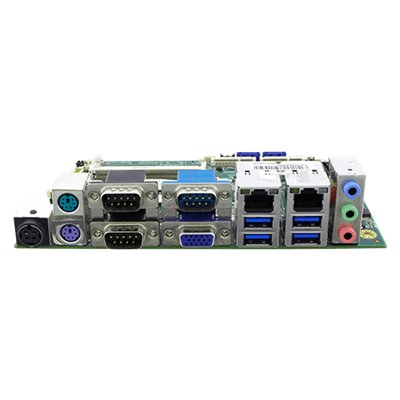

IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 2 x RS232 |
| Video | 1 x VGA |
| Audio | Mic in Line in Line out |
| LAN | 2 x Giga LAN RJ45 Connector |
| PS/2 | 2 x PS/2 |
Internal IO Ports
| Power input | 1 x 4pin(2×2) for 12V DC in |
| Power output | 2 x 2pin(1×2) red wafer for 5V DC out 1 x 2pin(1×2) yellow wafer for 12V DC out |
| USB | 2 x 8pin(2×4) for 4 x USB 2.0 |
| Serial port | 3 x (2×5) pin-header RS-232 |
| Display | 1 x 40pin DF13 connector for LVDS 1 x 30pin DF13 connector for eDP (Optional) 1 x 18pin FFC connector for HDMI (Optional) |
| Backlight | 1 x 7pin(1×7) for panel backlight |
| SATA | 1 x SATA II 1 x SATA III 1 x 8pin(2×4) for SATA power |
| DIDO | 1 x 10pin(2×5) for Digital input/output |
| VR | 1 x 3pin(1×3) for Digital panel backlight brightness control |
| Fan | 1 x 3pin(1×3) for CPU Fan |
| OSD | 1 x 10pin(2×5) for OSD control |
| Speaker | 2 x 2pin(1×2) for Speaker |
| Backup battery | 1 x 2pin(1×2) for RTC battery |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 170 x 170 mm |
Environment
| Operating Humidity | 10% to 95% RH, Non-Condensing |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
Accessory
| Optional Accessory | Driver CD & Manual (Optional) Adapter (Optional) |
