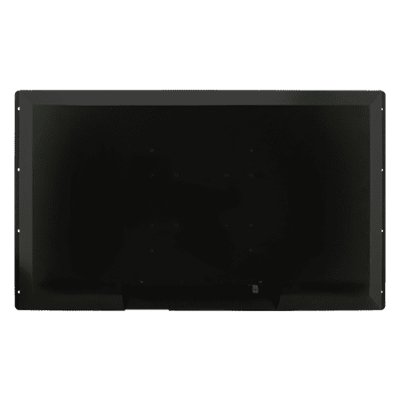

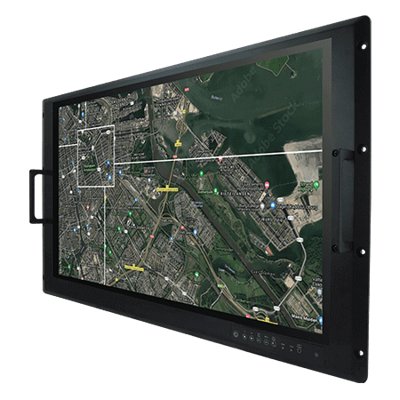

32" PCAP Rack Mount Defence Display
Vlastnosti:
- 32", 1920 x 1080 resolution
- Compliant MIL-STD 810G/ MIL-STD 461E
- Rack mount mechanical design, supports VESA mount
- PCAP multi-touch screen
- Defence-grade power connector (MIL-DTL-38999/1)
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Convenient on-screen display controls
Display
| Resolution | 1920×1080 |
| Size | 32 inches |
| Contrast Ratio | 4000:1 |
| Panel Brightness | 400 nits |
| Display Color | 16.7M Colors |
| View Angles | 89,89,89,89 |
| Active Area | 698.4 x 392.85 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
Compliance
| MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
| MIL-STD 810F/G | Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch |
| Video | 1 x VGA 1 x DVI-D 1 x HDMI |
Mechanical
| Dimension | 825 x 500 x 87.2 mm |
| Mounting | VESA Mount/ Rack Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MIL-DTL-38999/1 1 x VGA Cable 1 x DVI Cable 1 x HDMI |
Power
| Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
| Button | 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock |
