FPM-3121G-R3BE

12.1″ XGA WT Ind. Monitor w/ Resistive TS

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003426 Produktové číslo: FPM-3121G-R3BE Kategorie: , Výrobce: Advantech
Poptat produkt

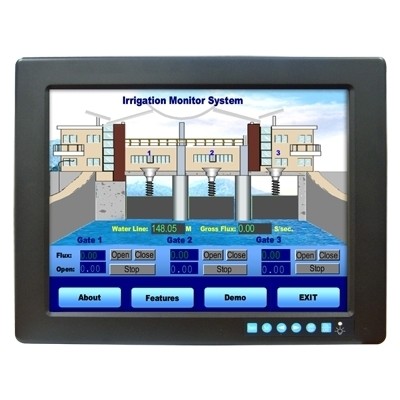

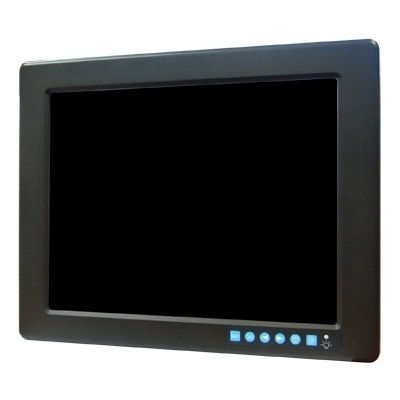

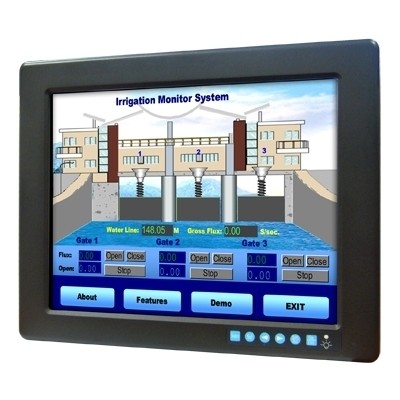

12.1″ SVGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI and Wide Operating Temperature

The FPM-3121G is a particularly rugged and reliable 12.1″ SVGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system ground isolation protection to enhance the reliability. Lockable OSD keys on front panel with 2 user-defined contrast/brightness settings.

Vlastnosti:
  • 12.1″ SVGA LED backlight LCD with low power consumption
  • Robust anodized coated aluminum front bezel and stainless steel rear cover
  • Supports wide operating temperatures
  • Increase reliability by enhanced 5-wire resistive touch sensor
  • Anti-reflective screen with tempered glass
  • Full enclosure ground isolation protection

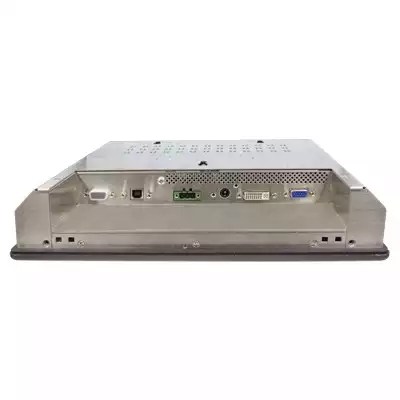

  • Supports VGA/DVI input, dual touch interfaces and two power inputs
  • Front lockable OSD membrane keys with user-defined brightness setting
  • Energy Star certification
  • Front panel is IP65 compliant
  • Supports panel, VESA, wall and desktop stand mounting
Hmotnost 3.95 kg
Rozměry 424 × 232 × 400 mm
Výrobce

Advantech

Dotyková technologie

Rezistivní

Rozlišení

1024 x 768

Stupeň krytí

Front IP65

Úhlopříčka

10-14"

Datasheet

Stáhnout datasheet:

3D Model

3D model se zobrazí v novém okně. Pokud se Vám okno s 3D modelem neobjeví, zkontrolujte prosím, zda nemáte nastaveno automatické blokování vyskakovacích oken. Toto nastavení obvykle naleznete v pravé části adresního řádku.
