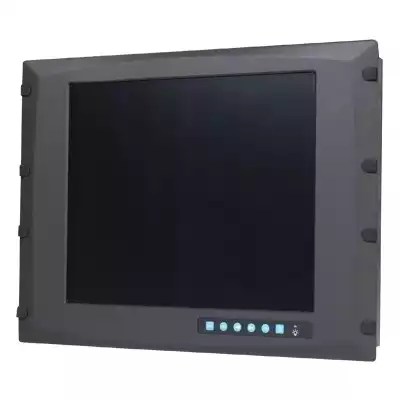

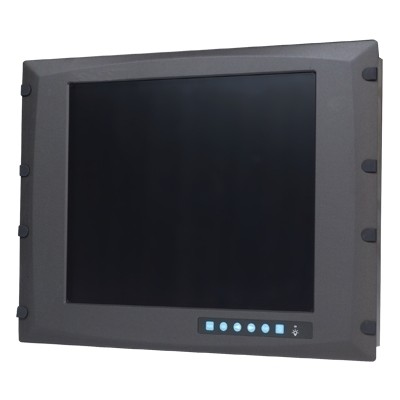

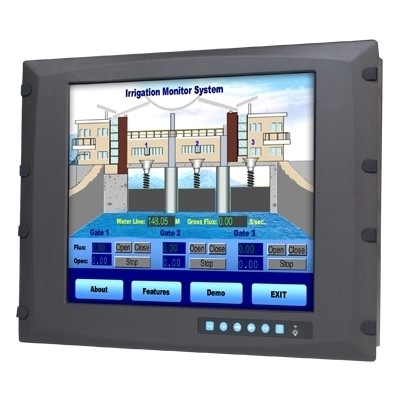

FPM-3171G-R3BE

17″ 350cd/m2 SXGA LCD monitor, Res-Touch RS232&USB

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: GA57301073 Produktové číslo: FPM-3171G-R3BEKategorie: , Výrobce: Advantech
Poptat produkt
• 17″SXGA TFT LED LCD with 50,000 backlight life time• Robust design with stainless steel chassis and aluminum front panel• Anti-glare screen with tempered glass and IP65 certified front panel• Lockable OSD control pad on rear cover• Supports industrial 24VDC power input• Supports panel, wall, desktop, rack or VESA arm mounting• Supports 8U pre-drill Rackmount mounting hole
FPM-3171G is a 17″color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17″, it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the e x isting system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.
Hmotnost8,65 kg
Rozměry569 × 276 × 525 mm
Výrobce

Advantech

Dotyková technologie

Rezistivní

Rozlišení

1280 x 1024

Stupeň krytí

Front IP65

Úhlopříčka

15-18"

Datasheet

Stáhnout datasheet:

3D Model

3D model se zobrazí v novém okně. Pokud se Vám okno s 3D modelem neobjeví, zkontrolujte prosím, zda nemáte nastaveno automatické blokování vyskakovacích oken. Toto nastavení obvykle naleznete v pravé části adresního řádku.
