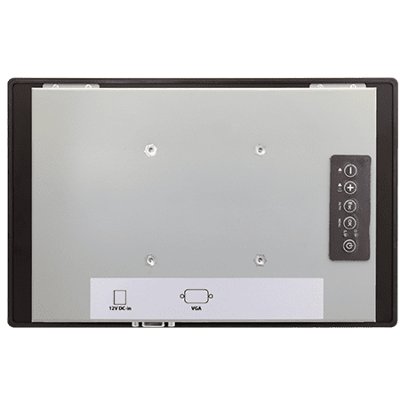

10.1" Front IP65 Display
Vlastnosti:
- 10.1”, 1280 x 800 Front IP65 Display
- VGA and HDMI input
- Panel mount
- VESA mount
- Front IP65 waterproof and dustproof
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits 1000 nits(Optional) |
| Display Color | 16.7M Colors |
| View Angles | 85,85,85,85 |
| Active Area | 216.96 x135.6 mm |
| Touch / Glass | Resistive Touch Screen Protection Glass w/o Touch Function (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
| Dimension | 286 x 182 x 38 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Cut out | 239 x 170mm |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC input |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
