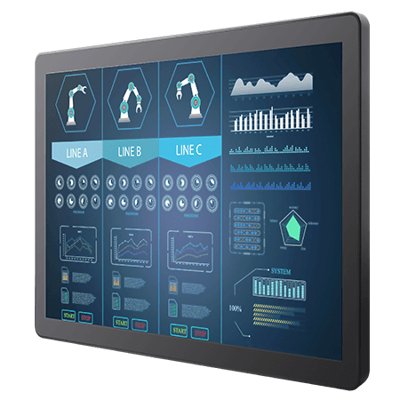

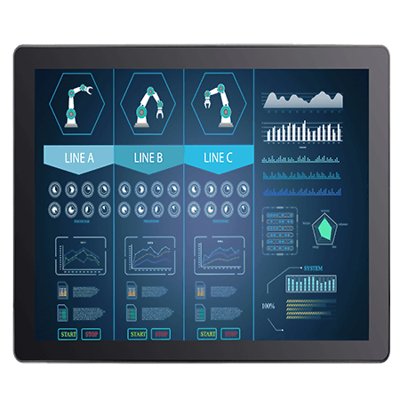

19" G-WIN GC-Series Front IP65 PCAP Display
Vlastnosti:
- 19” 1280 x 1024 Resolution Front IP65 PCAP Display
- VGA input and HDMI input
- Projected Capacitive Multi-Touch
- Front IP65 for protection against water and dust
Display
Resolution | 1280×1024 |
Size | 19.0 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 250 nits |
Display Color | 16.7M Colors |
View Angles | 85,85,80,80 |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
Operating Humidity | 10% to 90% (Non-Condensing) |
Operating Temperature | 0~50°C |
Shock | 40g for 11ms |
Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Mechanical
Dimension | 445 x 370 x 51 mm |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Plastic Bezel & Metal back cover |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
Power Rating | 12V DC input |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
