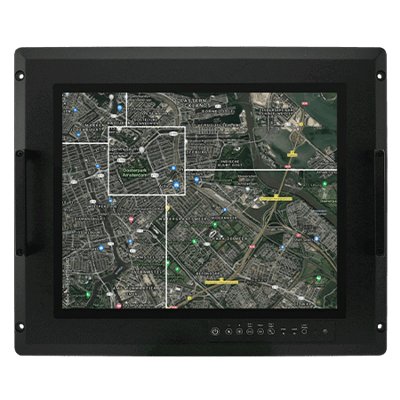

15" PCAP Rack Mount Defence Display
Vlastnosti:
- 15", 1024 x 768 resolution
- Compliant MIL-STD 810G/ MIL-STD 461E
- Rack mount mechanical design, supports VESA mount
- PCAP multi-touch screen
- Defence-grade power connector (MIL-DTL-38999/1)
- AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional)
- Convenient on-screen display controls
Display
Resolution | 1024×768 |
Size | 15 inches |
Contrast Ratio | 2500:1 |
Panel Brightness | 500 nits |
Display Color | 16.7M Colors |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C |
Compliance
MIL-STD 461E/F | RE101 / RE102 CE101 / CE102 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810F/G | Vibartion Method 514.5 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch |
Video | 1 x VGA 5 x BNC (R,G,B,H,V) 1 x DVI-D |
Mechanical
Dimension | 402 x 321 x 70 mm |
Mounting | Rack Mount/ VESA Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MIL-DTL-38999/1 1 x VGA Cable 1 x DVI Cable 1 x VGA to 5 BNC Shielding Cable |
Power
Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
Button | 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock |
