FPM-3151G-R3BE

15″ 350cd/m2 XGA WT, Res-Touch

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: GA57301135 Produktové číslo: FPM-3151G-R3BE Kategorie: , Výrobce:
Poptat produkt

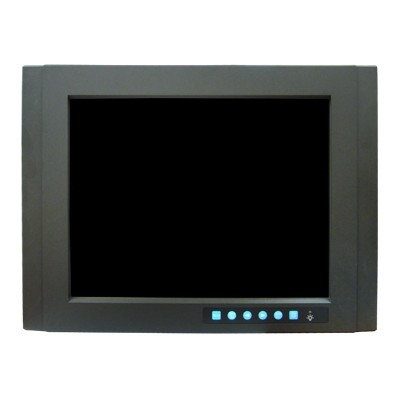

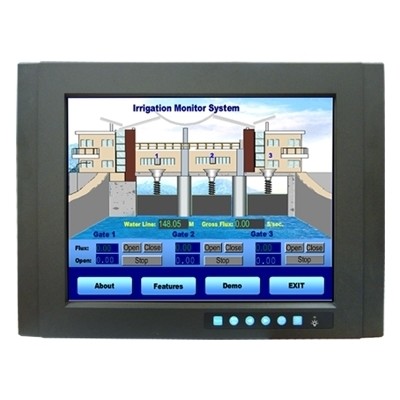

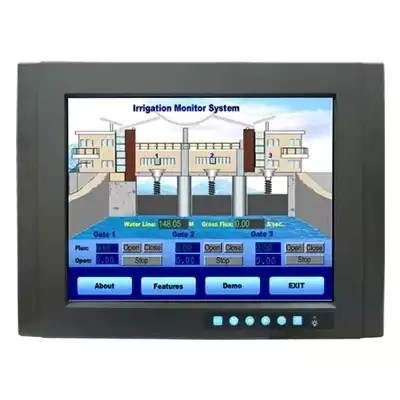

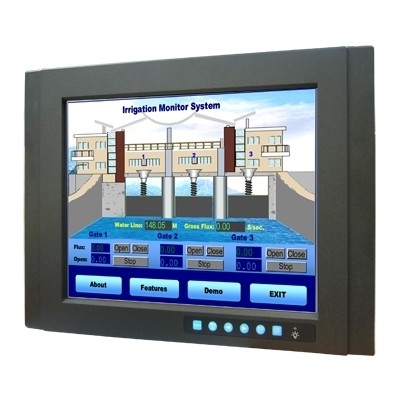

15″ XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports, and Wide Operating Temperature

The FPM-3151G is a particularly rugged and reliable 15″ XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system ground isolation protection to enhance the reliability. FPM-3151G also provides lockable OSD keys on the front panel with two user-defined contrast/brightness settings.

Vlastnosti:
  • 15″ XGA LED backlight LCD with low power consumption
  • Robust anodized coated aluminum front bezel and stainless steel rear cover
  • Supports wide operating temperatures
  • Increase reliability by enhanced 5-wire resistive touch sensor
  • Anti-reflective screen with tempered glass
  • Full enclosure ground isolation protection

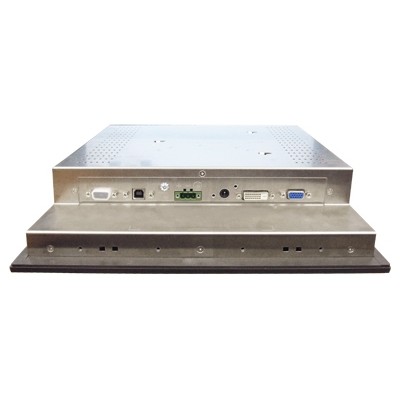

  • Supports VGA/DVI input, dual touch interfaces and two power inputs
  • Front lockable OSD membrane keys with user-defined brightness setting
  • Front panel is IP65 compliant

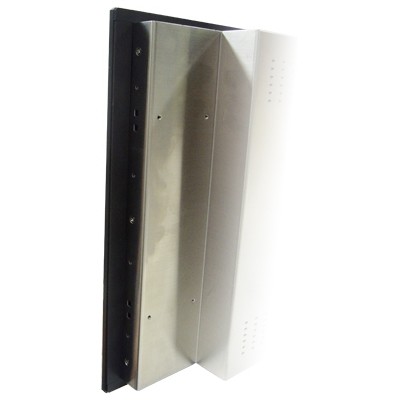

  • Supports panel, VESA, wall and desktop stand mounting
Hmotnost 7.15 kg
Rozměry (produktu / balení) 515 × 265 × 480 mm
Výrobce

Advantech

Dotyková technologie

Rezistivní

Stupeň krytí

Front IP65

Úhlopříčka

15-18"

Datasheet

Stáhnout datasheet:

3D Model

[canvasio3D width = ‚830‘ height = ‚600‘ border = ‚0‘ borderCol = ‚#F6F6F6‘ dropShadow = ‚0‘ backCol = ‚#FFFFFF‘ backImg = ‚/wp-content/themes/acipc-eshop/images/3D-background.jpg‘ mouse = ‚on‘ rollMode = ‚off‘ rollSpeedH = ‚0‘ rollSpeedV = ‚0‘ objPath = ‚https://eshop.autocont-ipc.cz/images/GA57301135/3dmodel/fpm-3151g-r3be.stl‘ objScale = ‚0.5‘ objColor = ‚#5c5c5c‘ lightSet = ‚7‘ reflection = ‚custom1‘ refVal = ‚7‘ objShadow = ‚on‘ floor = ‚off‘ floorHeight = ’42‘ lightRotate = ‚off‘ vector = ‚off‘ mousewheel = ‚on‘ Help = ‚off‘ loadingText = ‚Načítání 3D modelu, prosím čekejte…‘][/canvasio3D]
* Upozornění: 3D model slouží pouze pro ilustrační účely. Některé detaily nemusí být vyobrazeny. Design zařízení se může kdykoliv bez předchozího upozornění změnit.
