M101P

10.1″ Tablet, Pentium N4200, 4GB/64GB, Win10 IoT

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31113010 Produktové číslo: M101PKategorie: Výrobce: Winmate
Poptat produkt

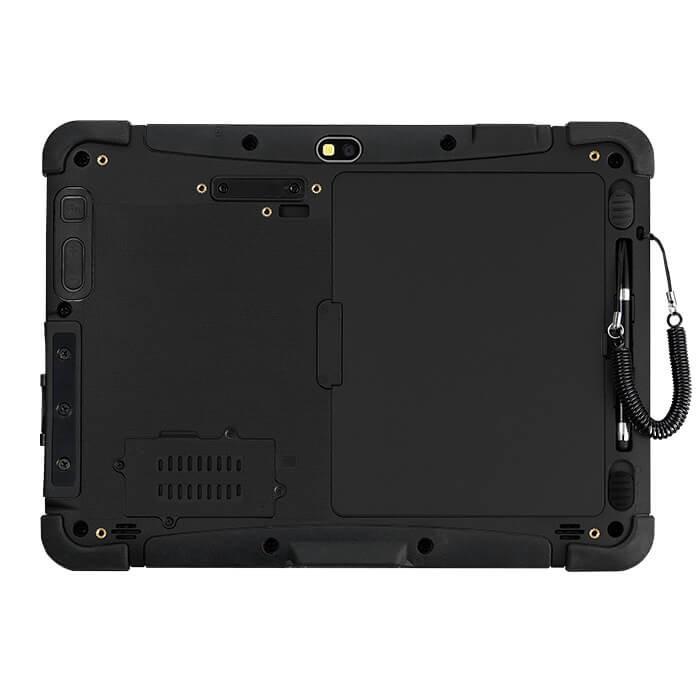

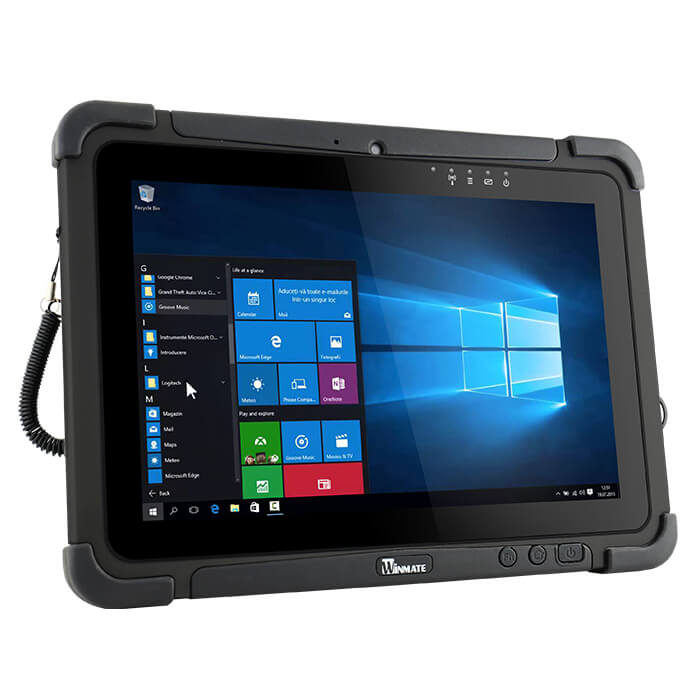

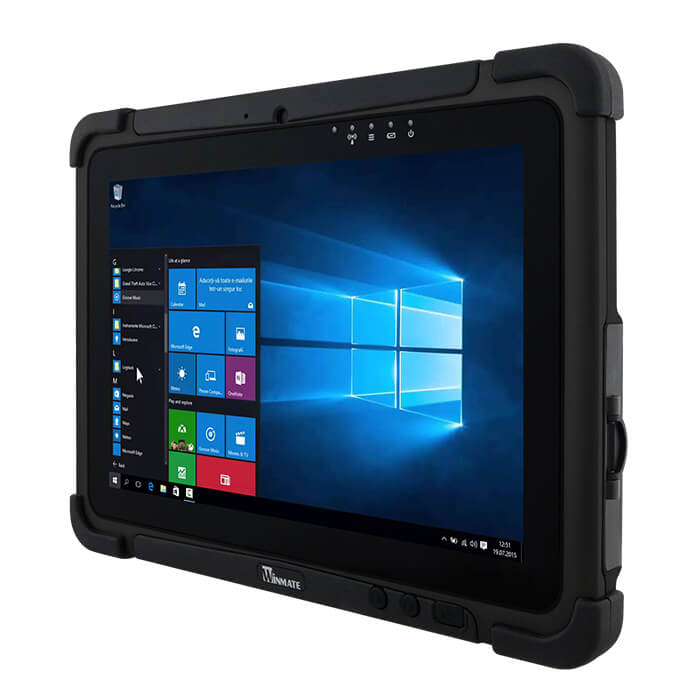

M101 is a rugged Tablet with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel’s processor paired with genuine Intel graphics for high performance. The tablet features a brilliant, in-plane switching with direct optical bonding, projective capacitive touch screen, which is outdoor viewable and offers 1920 x 1200 pixel resolution. Weighing at just 2.7 pounds (approx. 1200 grams) the M101 delivers lightweight mobility in a rugged tablet.

Vlastnosti:
  • 10.1″ 1920×1200 IPS LED Panel with P-Cap Touch
  • Long battery life with Intel® Pentium Apollo Lake processor
  • IP65 water and dust proof
  • Optional Barcode or RFID Reader
  • Dual Camera Design: 8MP Main camera / 2MP Webcam
  • Optional Expansion port for USB / RS232 connection
  • Hot-Swappable Battery Design / Optional high capacity battery pack
  • 2 Programmable function keys
  • With Optical Bonding for Sunlight Readability

Display Specifications
Size10.1″
Brightness800 nits(typ.)
Resolution1920×1200 WUXGA
Contrast Ratio800:1
TouchMulti-Touch Projected Capacitive Touchscreen(supports Rain, Glove, Stylus Modes)
Viewing Angle85/85/85/85
Panel ViewabilityOptical Bonding for Sunlight Viewability

System Specification
ProcessorIntel Pentium N4200 Apollo Lake Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology
BIOSAMI System BIOS
Memory4GB SODIMM DDR3L-1600 (up to 8GB)
Storage128GB solid state drive (SSD) Optional up to 512GB, up to 128GB additional storage with optional microSDXC card slot
Audio1 x Built-in Mic with Noise Cancellation, 2 x 1W Speaker

Wireless Communication
WLAN802.11 a/b/g/n/ac
BluetoothBluetooth 5.0
WWANOptional 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT)
GPSGPS, GLONASS

I/O Connectors

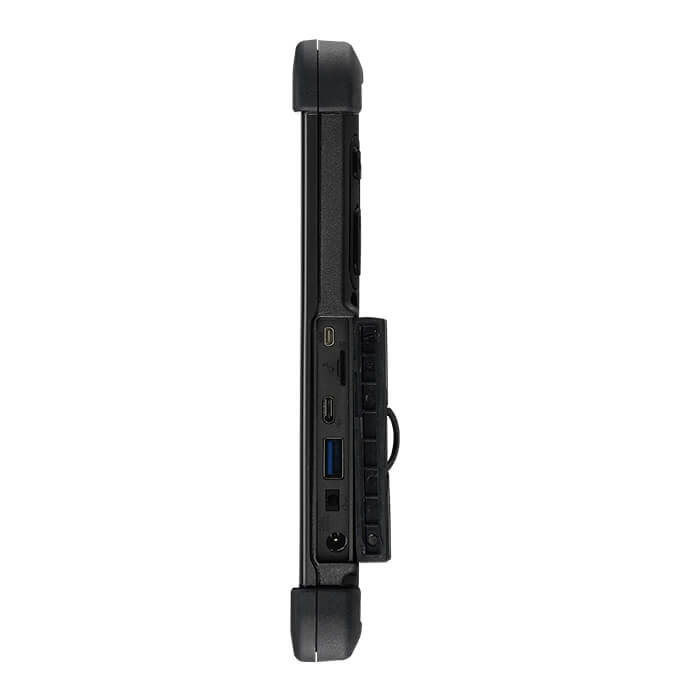

Right I/O Connectors
  • 1 x Optional Micro HDMI
  • 1 x USB 3.0(Type A)
  • 1 x USB3.0 (Type C)
  • 1 x Audio Combo connector (Mic in or Line Out)
  • 1 x DC jack
  • 1 x Micro SD Slot

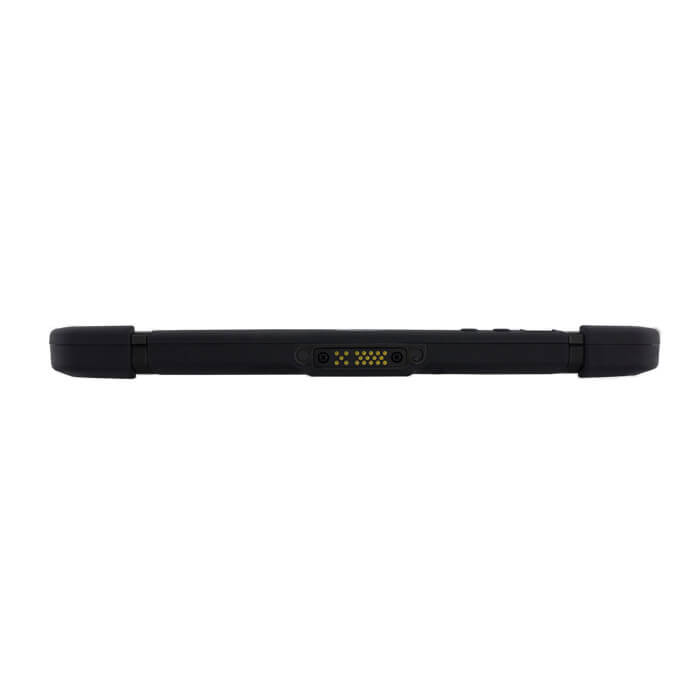

Downside I/O Connectors1 x Docking Connector
External I/O1 x Extension Port (Optional)

In front Control
Control Button1 x Power,1 x Home (Win-set application),2 x Programmable Function Key (Programmable function key configured by Hottab Utility)(One for Barcode trigger key when with Barcode),2 x Adjusting key for Volume or Brightness
LED indicatorPower, Battery, HDD Access, RF

Mechanical and Environment
Dimensions (W x L x H)271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches)
Net Weight (kg)1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature-30°C to 70°C (-22°F to 158°F)
IP ProofIP65
Operating Humidity10% to 90% RH, non-condensing
ShockMIL-STD-810G Method 516.6 Procedure I
VibrationMIL-STD-810G Method 514.6 Procedure I
DropMIL-STD-810G Method 516.6, 4 ft to concrete*

Power Management
Power Input12~19V DC
Battery
  • 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
  • 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter100-240V, 50-60Hz, 19V DC
Battery Operating TimeStd. Battery: 8 hours***High Capacity Battery: 16 hours***

Product Specification
OSWindows 10 IoT Enterprise (64 bit)
Camera8MP Auto-Focus Camera with LED Light at rear / 2MP Camera at front side

Security
SecurityPassword security for user and hard disk lockTrusted platform module (TPM) V2
Hmotnost1.2 kg
Rozměry271.8 × 197.2 × 19 mm
Výrobce

Winmate

Platforma

Windows

Procesor

Pentium

Úhlopříčka

10"
