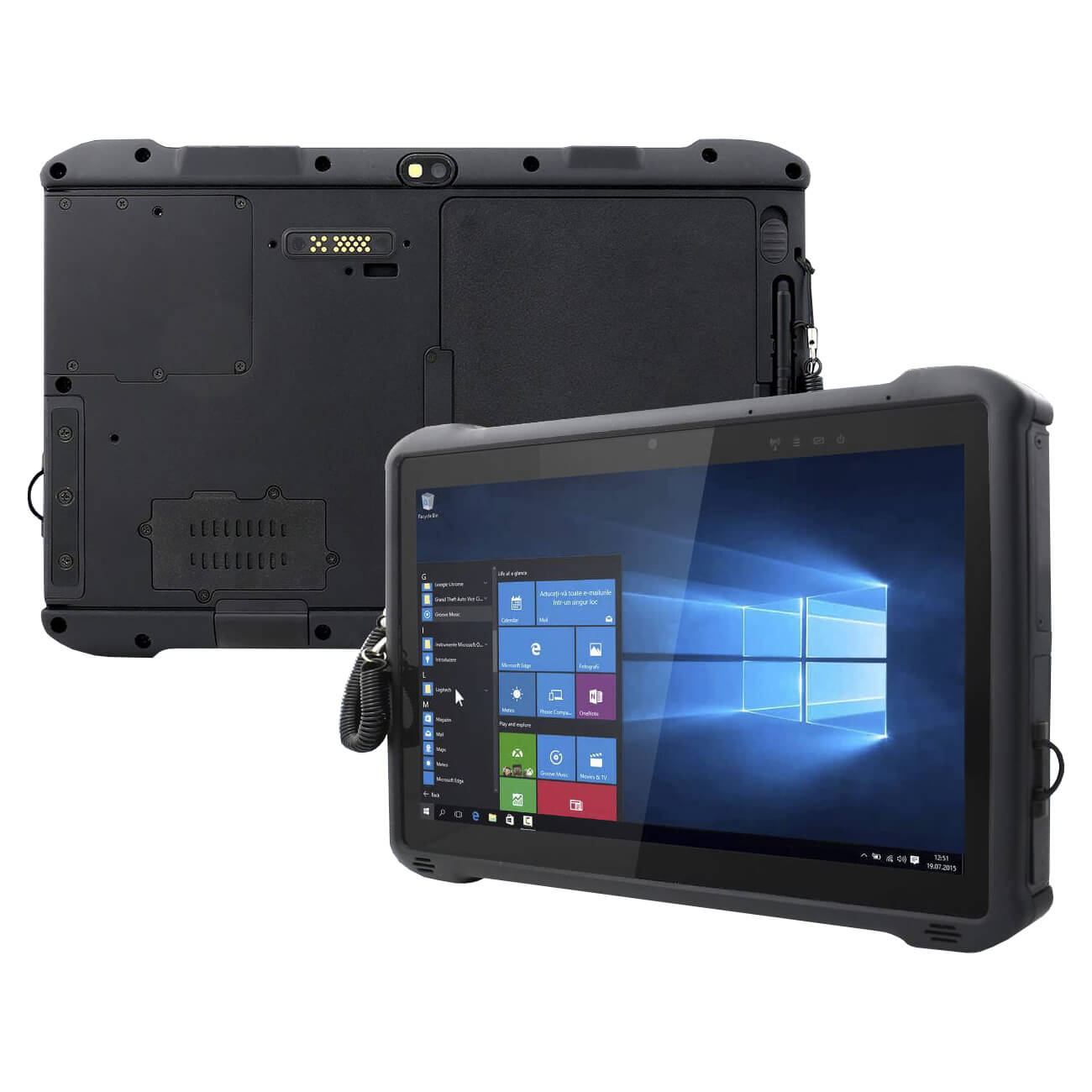

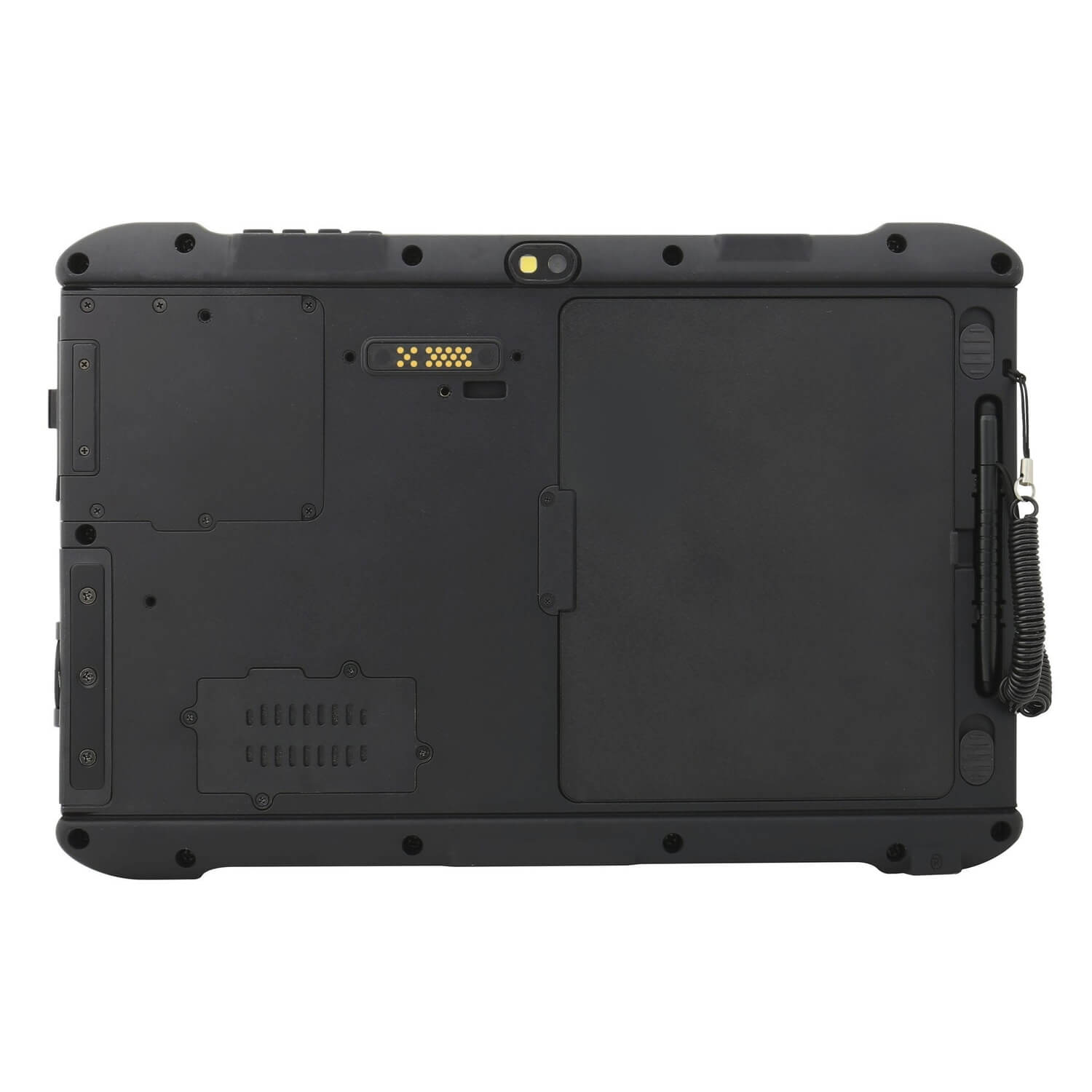

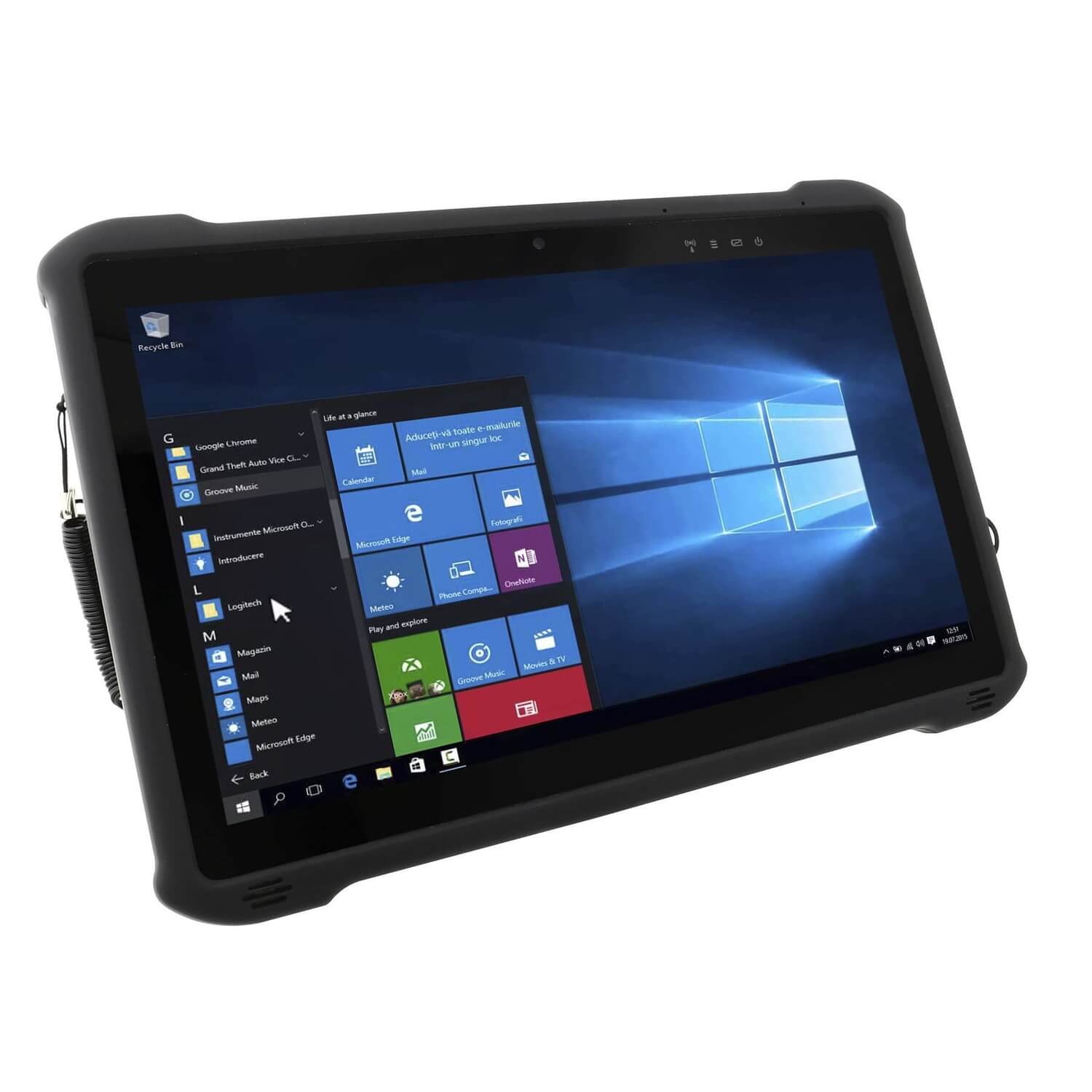

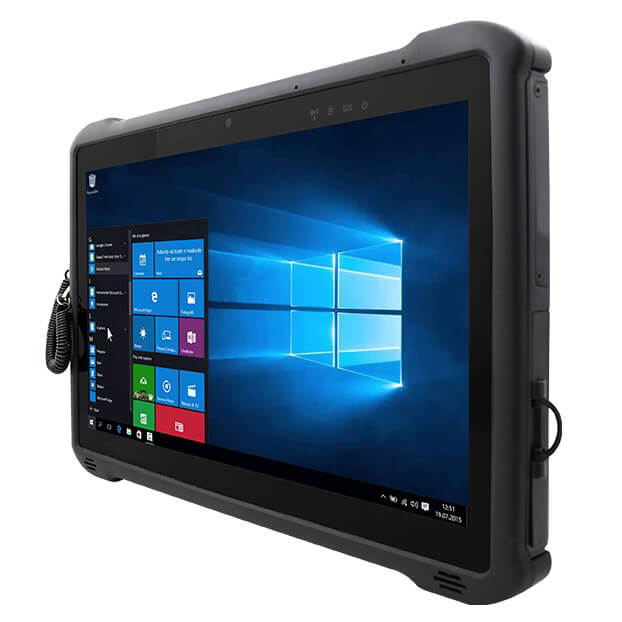

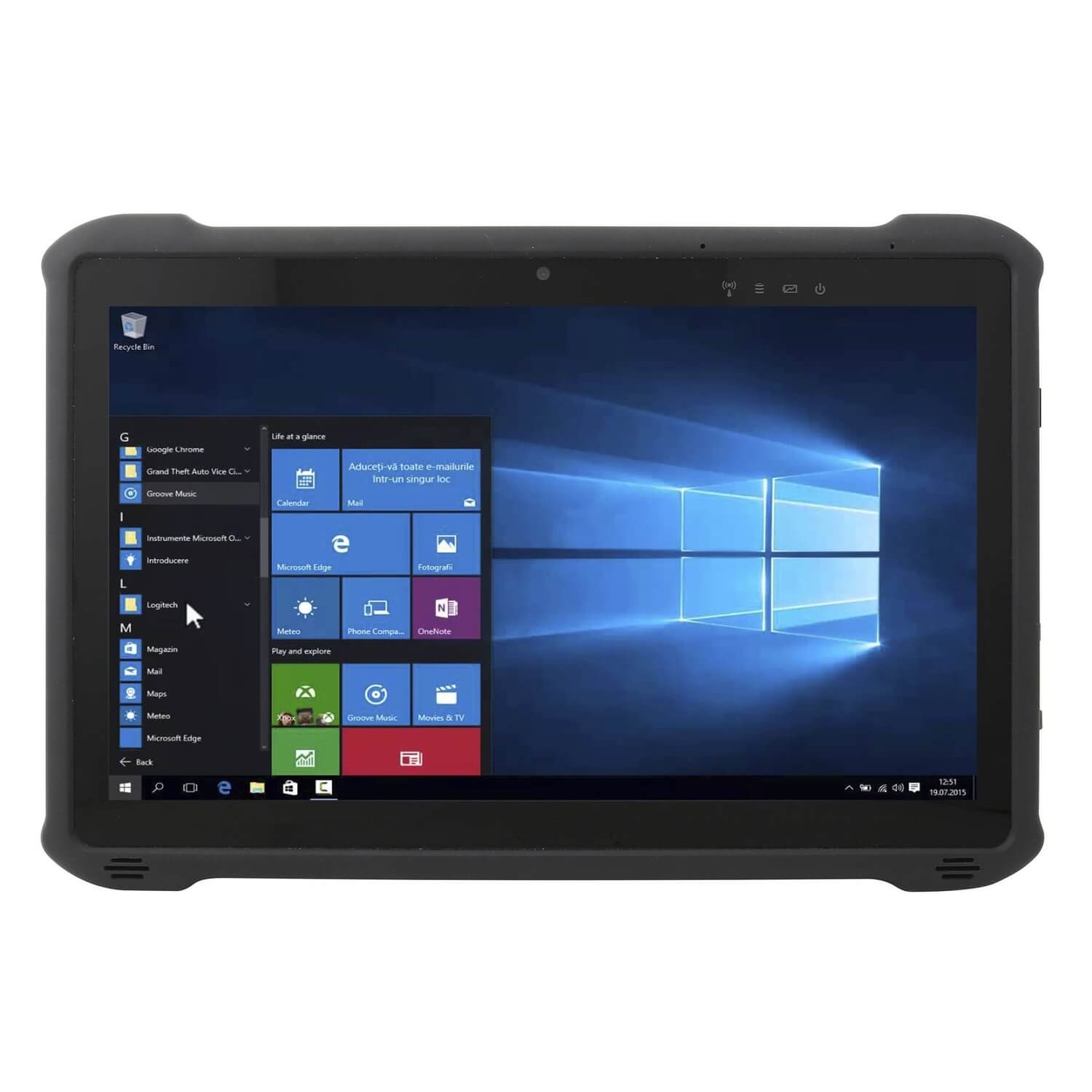

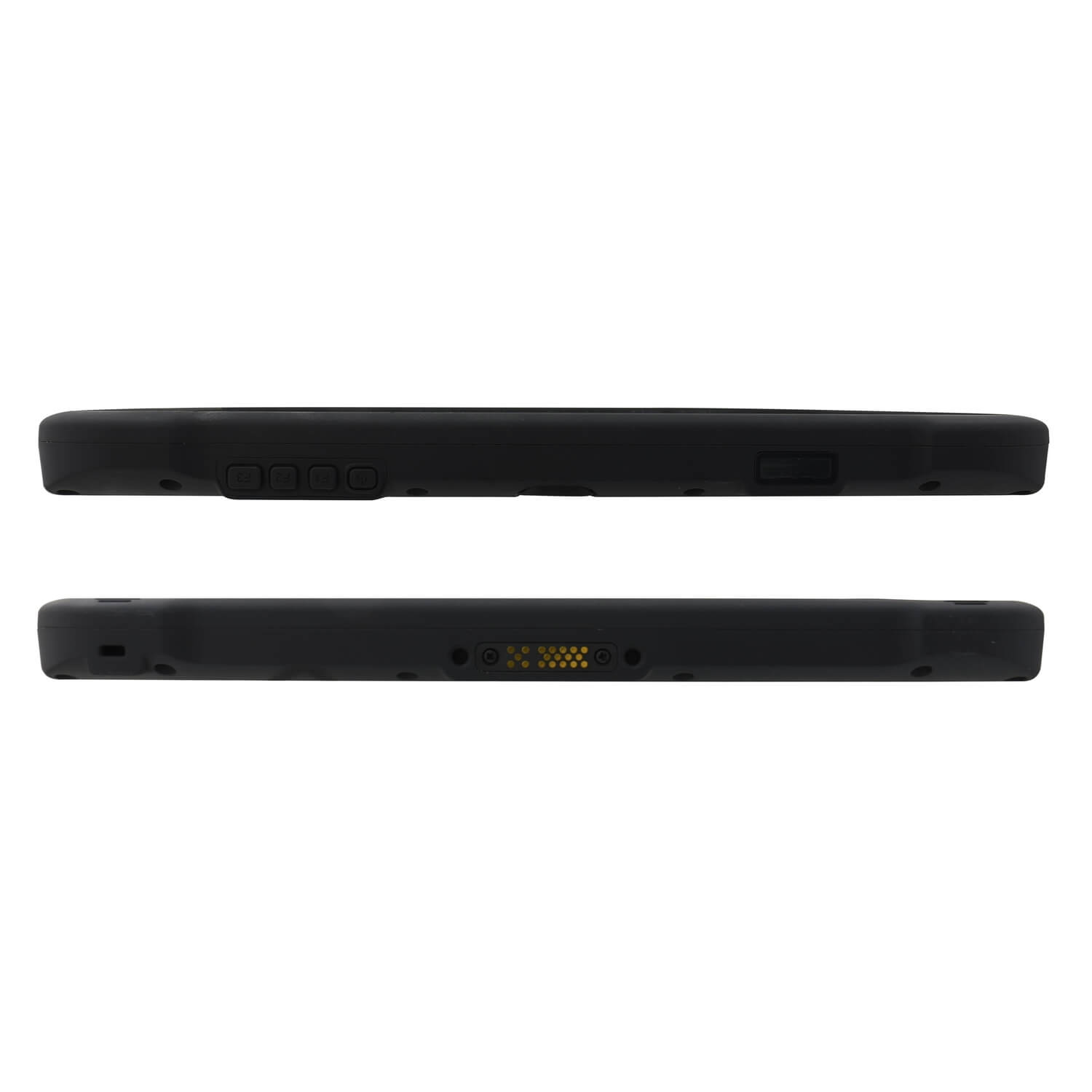

M116P

11.6″, Intel Pentium N4200, 4GB RAM, 128GB SSD, Wi-Fi, Bluetooth, GPS, IP65, Windows 10 IoT

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31113130 Produktové číslo: M116P Kategorie: Výrobce: Winmate
Poptat produkt
A Rugged Tablet that Can Survive Any Environment and Get Real Work Done

The M116 platform is a next-generation Windows rugged tablet series designed to boost efficiency in a mobile, versatile form factor. The large 11.6-inch sunlight readable full HD display allows for a premium viewing experience no matter where work takes place. The M116P allows for efficient performance with Intel Pentium processing with all day use with a hot-swappable battery design. Multiple wireless connectivity options and data capture modules allows users to complete their tasks reliably; from warehouses, to vehicle mounted, to field service external use. All these tools suited for productivity encased in an IP65 water and dust proof rugged housing with MIL-STD 810G specs ensures that the M116P is the ultimate rugged tablet designed with mobile productivity in mind.

Mobile Rugged Design
The M116 Series is designed for mobile rugged use, withstanding shock, vibration and drop (satisfies 4 feet drop certification), and can be operated in wide temperature of -20°C to 60°C, allowing the tablet to be used in harsh environments such as industrial and military use. With IP65 rating, the device is dust tight, and can withstand water jet against the device enclosure. So, it can also be easily wiped cleaned in order to reduce spread of infection for medical use.

Multi-touch Projected Capacitive Touch
The minimum 10-point Multi-touch PCAP Touch technology allows users to switch windows, take snapshots, zoom in and rotate easily to take full advance of Windows 10 IoT touch interface.

Sunlight Readable Wide-Angle Panel
M116 panel offers wider viewing angles, better image contrast, and faster response times. M116 series offers a 11.6” 1920×1200 LED high resolution, high brightness display, perfect for viewing under different conditions.

CPU Designed for Tablets
The series is offered with the latest Intel’s Kaby Lake and Apollo Lake processors to provide high performance and low power consumption, providing extended battery life. It supports with Windows® 10 IoT Enterprise operating system to fulfill increasing requirement in industrial applications and provides an alternative solution for those between general consumer and extremely rugged application.

Multiple Data Collection Methods, Real-time Data Connectivity
Real-time data access to the right information is very important to mobile users. M116 Series supports 4G/LTE, GPS, WiFi, Bluetooth to allow users to get connect in the way that best suits their needs. Apart from the 2MP front camera and 8MP rare camera, the M116P and M116K are 1D/2D Barcode Reader, HF RFID Reader, and the add-on module for UHF RFID Reader and Smart Card Reader configurable. The M116PT contains a built-in Smart Card Reader, with all the other data collection methods available to be added on.

Features

  • Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz)
  • 11.6″ 1920 x 1080 LED panel with direct optical bonding
  • IP65 water and dust proof with MIL-STD-810G rugged housing
  • Optional Integrated 1D/2D Barcode Reader and HF RFID for data collection
  • Removable battery with hot-swap function for all day productivity
  • 802.11ac WiFi, BT 5.0, 4G LTE, GPS Wireless Connectivity
  • Optional GigaLAN Port

Display Specifications

Size11.6″
Brightness850 nits
Resolution1920 x 1080 Full HD
Contrast Ratio1000:1
TouchProjected capacitive multi-touch
Viewing Angle89/89/89/89
Panel ViewabilityDirect optical bonding for sunlight viewability

System Specification

ProcessorIntel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz)
Memory4GB LPDDR4 RAM 1 (up to 8GB)
Storage128GB SSD (options up to 512GB)
Additional storage available with micro SDXC card slot with microSDXC card slot

Wireless Communication

WLAN802.11 a/b/g/n/ac WiFi
BluetoothBluetooth 5.0
WWANOptional 4G LTE
GPSGPS, GLONASS

I/O Connectors

Audio
  • Built-in dual digital mic with noise cancellation
  • 2 x 1 watt front-facing speakers
I/O
  • 1 x 19-pin docking connector
  • 1 x micro HDMI
  • 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
  • 1 x Power Jack
  • 1 x Micro SDXC slot
  • 1 x Audio combo connector (Mic in or Line Out)
  • 1 x RJ45-10/100/1000 GigaLAN port (Optional)
  • 1 x Expansion connector for USB 2.0/ Full RS232 (Optional)
  • 1 x Micro SIM card slot
  • 1 x Mini PCIe for WWAN Module

In front Control

Control Button1 x Power
3 x function keys
LED indicatorPower, Battery, HDD, RF

Mechanical and Environment

Dimensions (W x L x H)300.67 x 201.97 x 22.5 mm
Net Weight (kg)1.35 kg
Operating Temperature-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature-30°C to 70°C (-22°F to 158°F)
IP ProofIP65
Operating Humidity10% to 90% RH, non-condensing
CertificationsCE, FCC
ShockMIL-STD-810G Method 516.6 Procedure I
VibrationMIL-STD-810G Method 514.6 Procedure I
DropMIL-STD-810G Method 516.6, 4 ft to concrete

Power Management

Power Input19V DC
BatteryHot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P)
Optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)
Adapter100-240V, 50-60Hz (19V DC)
Battery Operating TimeStd. Battery: 8 hours

Product Specification

OSWindows 10 IoT Enterprise (64 bit)
Smart Card ReaderOptional Smart Card Reader
RFIDOptional HF RFID reader 13.56 MHz
BarcodeOptional 1D/2D Barcode Reader
Camera2MP front camera
8MP rear camera with autofocus and LED light
Data CaptureOptional add-on UHF RFID Reader or Smart Card Reader

Security

SecurityTrusted Platform Module (TPM) 2.0
Kensington Lock
Mobile Device ManagementSOTI Mobicontrol compatible
Hmotnost 1.35 kg
Rozměry 300 × 201 × 22 mm
Výrobce

Winmate

Platforma

Windows

Procesor

Pentium

Úhlopříčka

11"
