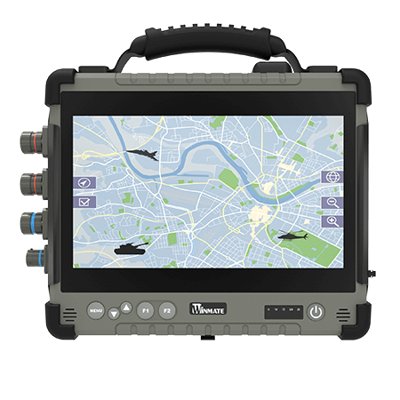

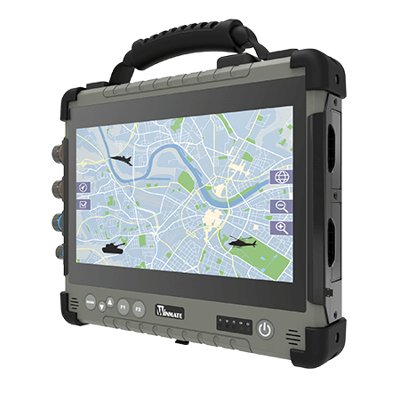

10.1" Intel® Core™ i5-8265U Defence Ultra Rugged Tablet
Vlastnosti:
- 10.1” 1920 x 1080 LED Panel with direct optical bonding, Defence Ultra Rugged Tablet PC
- 8th Gen. Intel® Core™ i5-8265U,1.6 GHz (turbo up to 3.90 GHz)

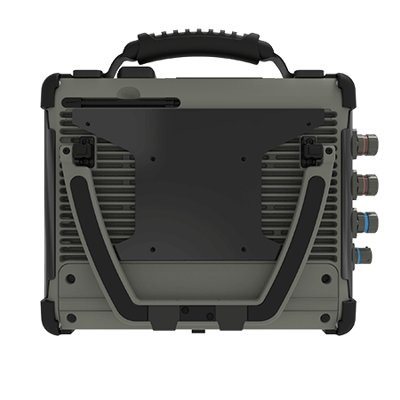

- Adjustable Kickstand that is Convertible to a handle
- Ecological seals protect ports as well as connectors from moisture and dust
- MIL-STD-38999 connector for Giga LAN, RS232/RS422 and Power Input
- With daylight-readable screen 800 nits optical bonding for clarity increasing and readability enhancing
Display
Touch / Glass | Projected Capacitive Multi Touch Screen |
Resolution | 1920×1080 |
Size | 10.1 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 800 nits |
View Angles | 85,85,85,85 |
System Specification
Processor | Intel Core i5-8265U 1.6GHz (up to 3.9GHz) |
Memory | 4GB SODIMM DDR4-2400 8GB SODIMM DDR4-2400 (Optional) 16GB SODIMM DDR4-2400 (Optional) |
Storage | 1 x 128GB M.2 SSD 256GB M.2 SSD (Optional) 512GB M.2 SSD (Optional) |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional) |
WLAN | 802.11 a/b/g/n/ac |
BT | Support |
WWAN | 4G/ LTE or 3G (Optional) |
GNSS | Supports GPS GLONASS, Galileo, BeiDou (Optional) |
Mechanical
Dimension | 266 x 222 x 50.5 mm |
Weight | 2.4 kg |
Enclosure | Magnesium Alloy Housing with All-Around Elastomeric Rubber |
Cooling System | Fanless design |
Docking Housing | nan |
Power
Battery | 11.1V, 5200mAh Lithium-Ion Battery (6cells) |
Battery Operating Time | 8 Hours |
Power Rating | 9-36V DC in (MIL-DTL-38999/1 connector) |
Adapter | 100-240V, 50-60Hz / 19V DC |
Environment
Operating Humidity | 10% to 90% RH, non-condensing |
Operating Temperature | -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) |
Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | IP54 |
Drop | MIL-STD-810G Method 516.6, 4 ft |
Certification
Certification | CE, FCC |
Control
Button | 1 x Power, 1 x Menu, 2 x Function Key, 2 x Brightness Control Key |
Accessory
Accessory | Cordon d’alimentation et adapteur Batterie standard Guide de démarrage rapide Manuel papier + CD Stylet Câble alimentation + Ethernet MILSTD38999 Câble RS232/RS422/RS852 MILSTD38999 |
Optional Accessory | Station d’accueil multifonctions Kit d’adaptation pour véhicule Chargeur voiture Lanière pour main Lanière épaule Sacoche |
IO Ports
USB Port | 2 x USB 3.0 |
Serial Port | 1 x RS232/RS422 /485 + 1 x RS422 Port(MIL-STD-38999 connector) |
Video | 1 x HDMI |
Audio | 2 x 1 Watt Speaker |
LAN | 2 x RJ45-10/100/1000 Mbps LAN(MIL-STD-38999 connector) |
Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
