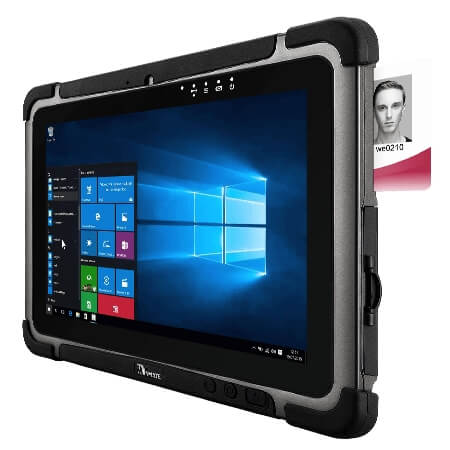

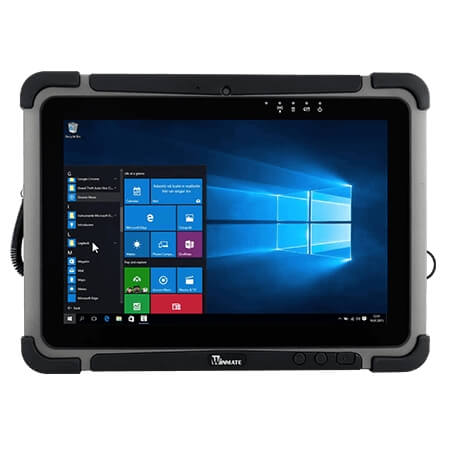

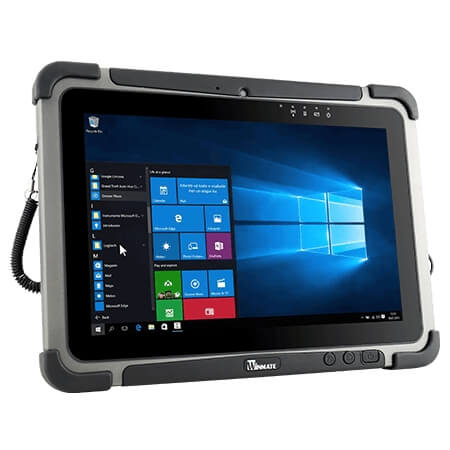

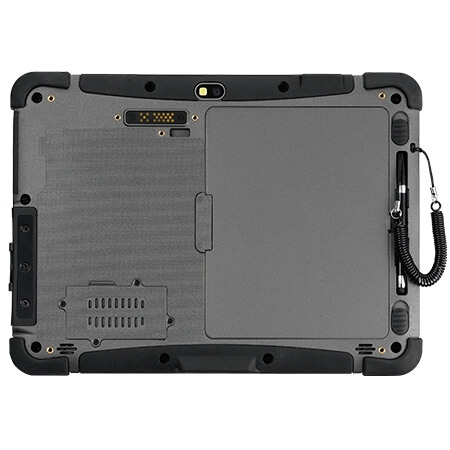

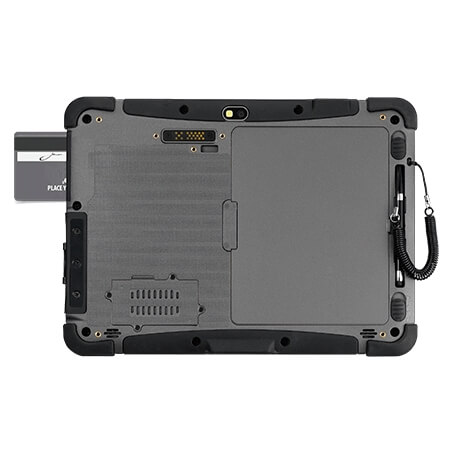

M101BT

10.1″ Tablet, Celeron N2930, 4/64GB, W10 IoT, SCR

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31113100 Produktové číslo: M101BT Kategorie: Výrobce: Winmate
Poptat produkt

Vlasnosti:

  • 10.1” 1280×800 IPS LED Panel with P-Cap Touch
  • Low-power system with Intel® Bay Trail-M processor
  • IP65 water and dust proof
  • Built-in Smart Card Reader
  • Built-in 2D/1D Barcode Reader (Optional)
  • Dual Camera Design: 5MP main camera with LED flash / 2MP Webcam
  • Expansion port for USB connection (Optional)
  • Hot-Swappable Battery Design / Optional high capacity battery pack
  • 1 user-definable function key
  • With Optical Bonding for Sunlight Readability
  • SOTI MobiControl compatible


Display Specifications

Size10.1″
Brightness350(typ.)
Resolution1280×800
Contrast Ratio800:1(typ.)
Display Color16.7M
TouchProjective Capactive Touch (min 4 points)(supports Rain, Glove, Stylus Modes)
Panel ViewabilityOptical Bonding for Sunlight Viewability

System Specification

ProcessorIntel BayTrail-M Quad-Core 1.8GHz
BIOSAMI System BIOS
Memory4GB SODIMM DDR3L-1600 (up to 8GB)
Storage64GB mSATA SSD (up to 256GB)
Audio1 x Built-in Mic, 2 x 1W Speaker

Wireless Communication

WLAN802.11 a/b/g/n/ac
BluetoothBluetooth 4.2
WWANOptional 4G/ LTE or 3G
GPSu-Blox Neo-6Q

I/O Connectors

Right I/O Connectors
  • 1 x USB3.0
  • 1 x Audio Combo Conn. (Mic in / Line Out)
  • 1 x Power Jack
  • 1 x Micro SD Slot,
  • 1 x Micro SIM Slot

In front Control

Control Button
  • 1 x Power Button
  • 1 x Home key
  • 1 x Programmable Function Key
LED indicatorPower, Battery, HDD, RF

Mechanical and Environment

Dimensions (W x L x H)271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches)
Net Weight (kg)1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature-20°C to 60°C (-4°F to 140°F)
IP ProofIP65
Operating Humidity10 to 90% RH, non-condensing
CertificationsCE, FCC, IC
ShockMIL-STD-810G Method 516.6 Procedure I
VibrationMIL-STD-810G Method 514.6 Procedure I
DropMIL-STD-810G Method 516.6, 4 ft to concrete*

Power Management

Power Input12-19V DC
Battery
  • 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
  • 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter100-240V, 50-60Hz / 19V DC
Battery Operating Time7 hours **

Product Specification

OSWindows 10 IoT EnterpriseWindows Embedded 8.1 Industry ProWindows 7 Pro for Embedded Systems
Smart Card ReaderComply with ISO7816-1.2.3 T=1 and T=O protocol
BarcodeShort range 1D/2D Barcode Reader (optional)

Security

SecurityPassword security for user and hard disk lockKensington lock slotTrusted platform module (TPM) V1.2
Mobile Device ManagementSOTI MobiControl compatible
Hmotnost 1.2 kg
Rozměry (produktu / balení) 271.8 × 197.2 × 19 mm
Výrobce

Winmate

Platforma

Windows

Procesor

Celeron

Úhlopříčka

10"

Datasheet

Stáhnout datasheet:
