Winmate’s Ultra Rugged Tablets are ultra sturdy, fan less form factor devices featuring powerful Intel Core i5 and Intel Pentium N4200 CPUs available in 8.4-inch, 10.4-inch and 13.3-inch options. To withstand the harshest of environments and frequent drops, especially in dusty automotive manufacturing plants and vehicle diagnostic workshops, these ruggedized tablet members are built with a magnesium aluminum housing with protective rubber and MIL-STD-810G certification. Communication options such as GPS, Bluetooth and optional 4G LTE enable records to be updated in real time, ensuring the most up-to-date information is always available.

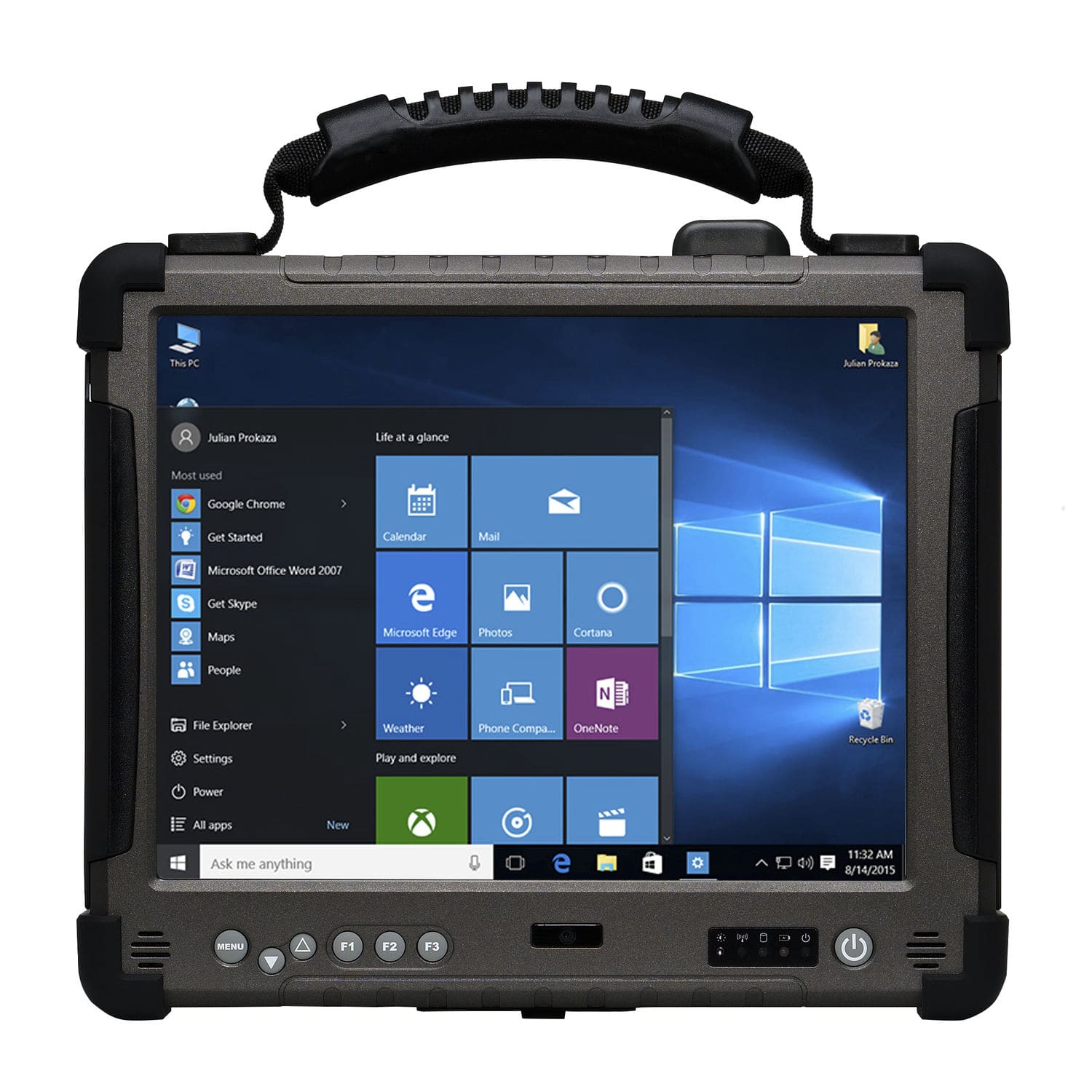

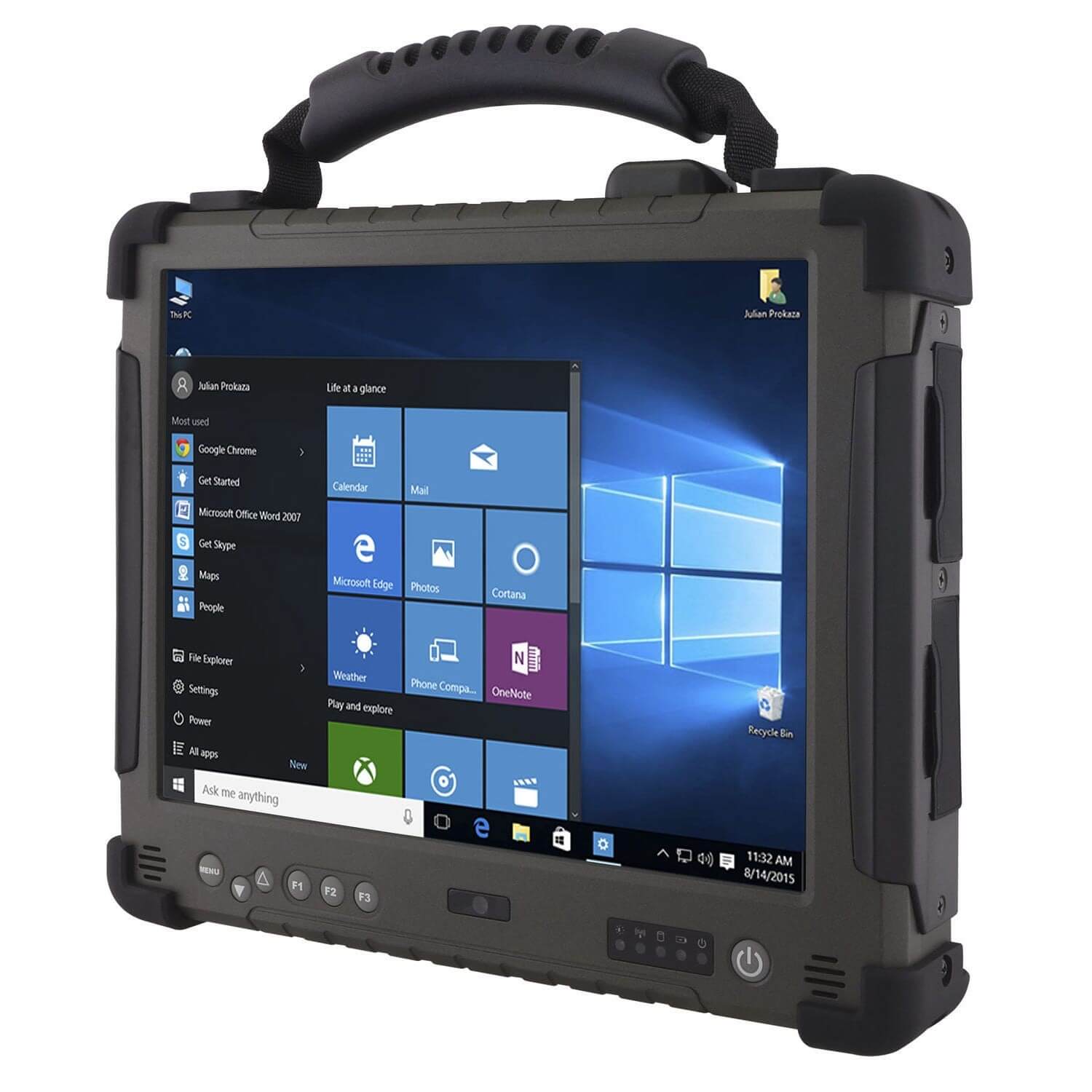

The R10IP8M-RTT2GP is a 10.4-inch ultra-rugged tablet with a robust set of features designed to handle the toughest tasks while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel® Pentium® N4200 Apollo Lake processor in a magnesium aluminum housing with protective rubber for military standard ruggedness. The R10IP8M-RTT2GP is a no-nonsense, field ready ultra-rugged tablet that can act as a powerful workstation in an easy to use package.
Features
- Intel® Pentium® N4200 Apollo Lake processor
- 10.4″ 1024 x 768 Resolution Transflective TFT-LCD Panel

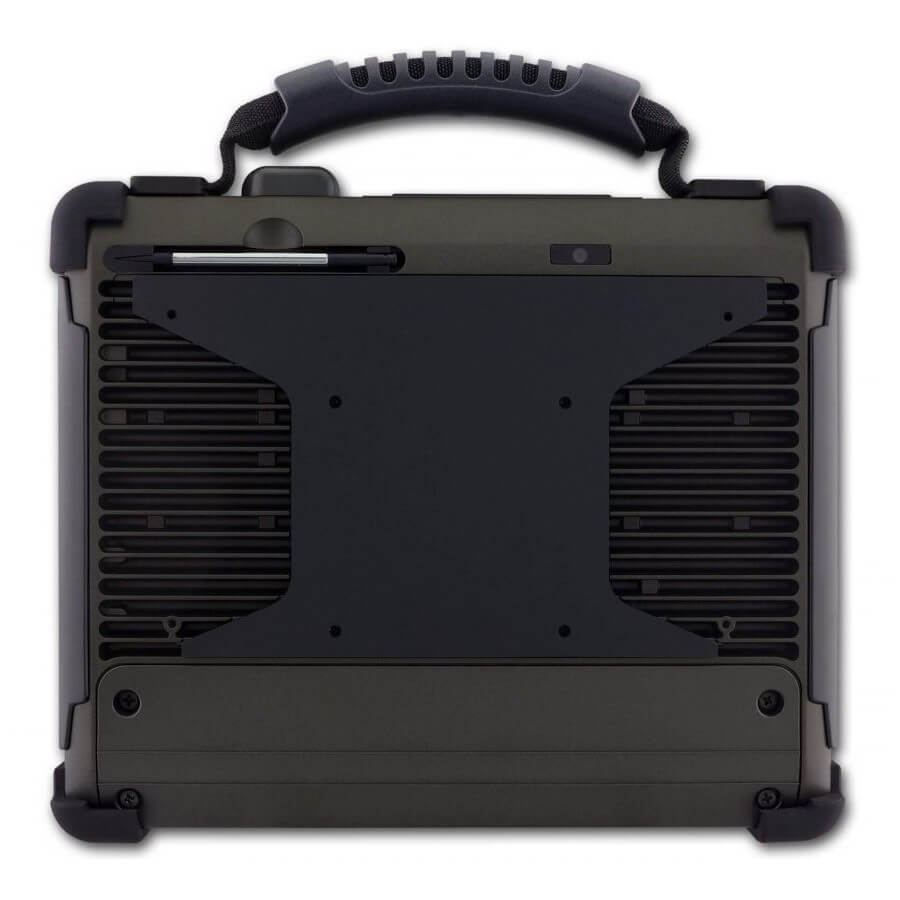

- Plastic front cover and Alu-Mg Alloy rear cover with Protective Rubber
- Trusted platform module (TPM) V2.0
- Bulit-in Wireless / Bluetooth / GPS
- Optional 4G LTE

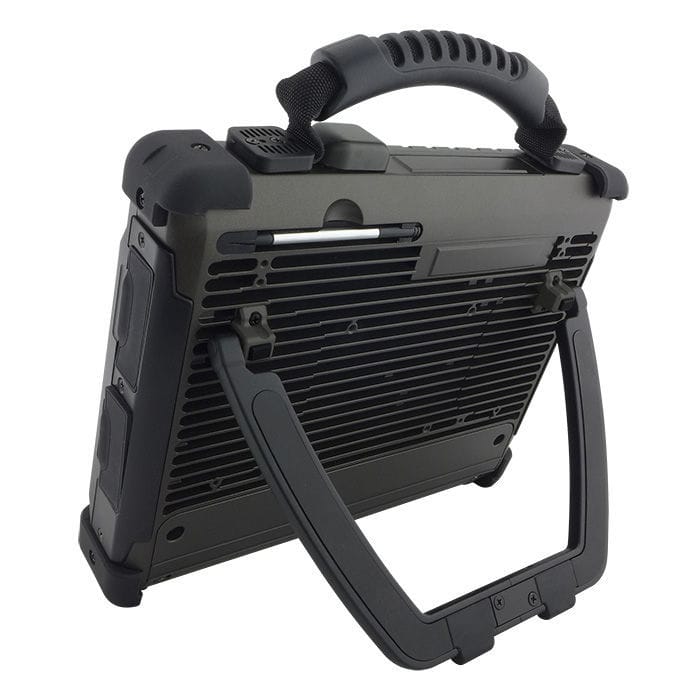

- Adjustable Kickstand that is convertable to a handle (Optional)
Display Specifications
Size | 10.4″ |
Brightness | 700(typ.) |
Resolution | 1024 x 768 |
Contrast Ratio | 1000:1 (typ.) |
Touch | Resistive touch |
Viewing Angle | 88/88/88/88 |
System Specification
Processor | Intel® Pentium® N4200 Apollo Lake 1.1 GHz (up to 2.5 GHz) |
Chipset | Intel SOC |
Memory | 4GB SODIMM DDR3L-1866 (Max 8GB) |
Storage | 64GB M.2 SSD (Max 512GB) |
Wireless Communication
WLAN | 802.11 a/b/g/n/ac |
Bluetooth | Bluetooth 5.0 |
WWAN | Optional 4G (LTE, DC-HSDPA, HSUPA, WCDMA, GSM) |
GPS | u-Blox Neo-M8N, supports GPS (Optional GLONASS, Galileo, BeiDou) |
I/O Connectors
Audio | 2 x 1 Watt Speaker |
External I/O | 2 x USB3.0, 1 x Audio Combo Conn. (Mic in or Line Out), 1 x Micro SD card slot, 1 x Micro SIM card slot, 1 x Power Jack, 1 x RS232/422/485(Thru BIOS Setting ), 1 x RJ-45 |
In front Control
Control Button | 1 x Power, 1 x Menu, 3 x Function key, 2 x Brightness control key |
LED indicator | Power, Battery, HDD, RF |
Mechanical and Environment
Dimensions (W x L x H) | 266 x 220 x 50.5 mm |
Net Weight (kg) | 2.39kg |
Operating Temperature | -20°C to 60°C (AC Mode), -10°C to 50°C ( Battery Mode ) |
Storage Temperature | -30°C to 70°C |
IP Proof | IP54(Optional IP65) |
Operating Humidity | 10% to 90% (non-condensing) |
Mounting | VESA mount, Vehicle mount |
Certifications | FCC, CE |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
Drop | MIL-STD-810G Method 516.6, 4ft to concrete |
Power Management
Power Input | 19V DC |
Battery | 11.1V, 5200 mAh Lithium-Ion Battery (6cells) |
Adapter | 100-240V, 50-60Hz / 19V DC |
Battery Operating Time | 9 hours |
Product Specification
OS | Windows 10 IoT Enterprise 64bit |
Camera | 2MP Front Camera, 5MP Rear Camera with autofocus |
Data Capture | 1D/2D Barcode Reader (Optional) |
Security
Security | Trusted platform module (TPM) V2.0 |
