IMC-101-S-SC

10/100BaseT(X) to 100Base, singlemode, SC type

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: G6270206 Produktové číslo: IMC-101-S-SCKategorie: Výrobce: MOXA
Poptat produkt

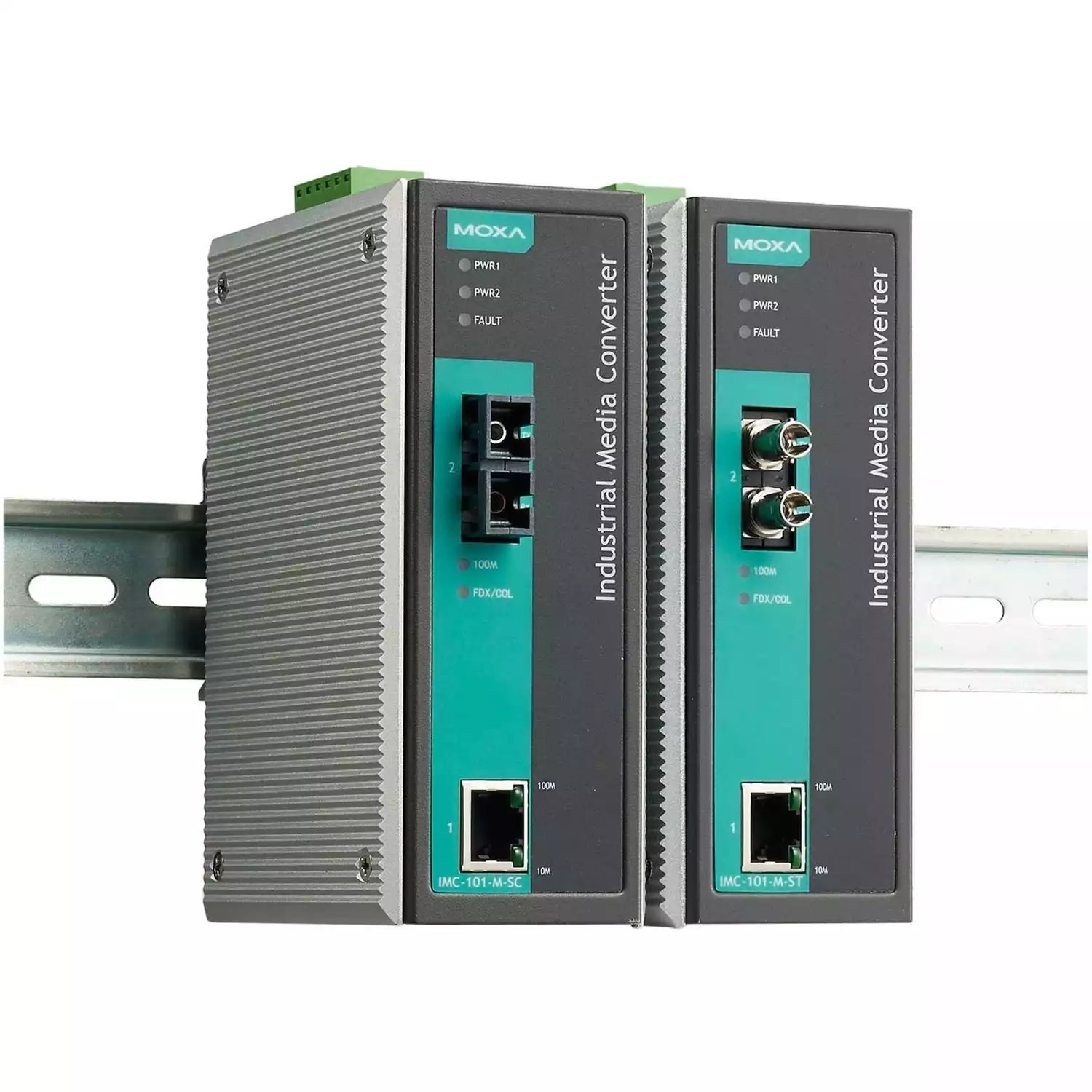

• Industrial 10/100BaseT(X) to 100BaseFX media converter, 40 km, single mode, SC fiber connector
• 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
• Link Fault Pass-Through (LFP) (media converters should work as a pair)
• Power failure, port break alarm by relay output
• Redundant power inputs
• Designed for hazardous locations (Class 1 Div. 2/Zone 2)
• Operating temperature: 0 to 60°C

The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60?C, and an extended operating temperature of -40 to 75?C. All IMC-101 series are subjected to a 100% burn-in test.
Výrobce

Moxa

Gigabit Ethernet

Ne

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:
