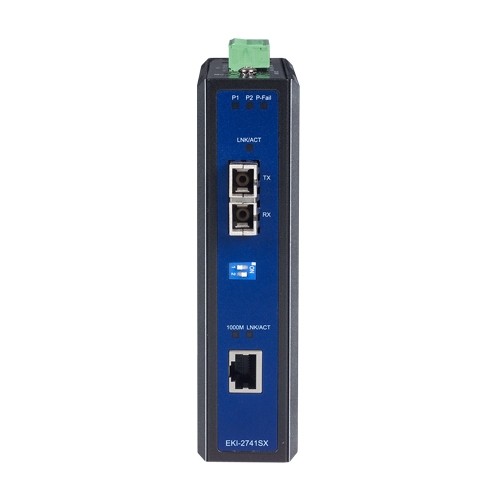

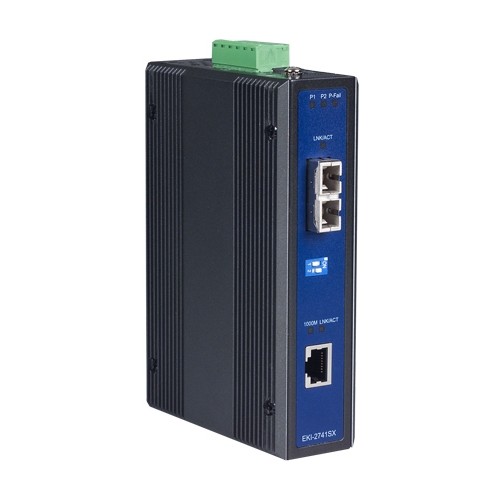

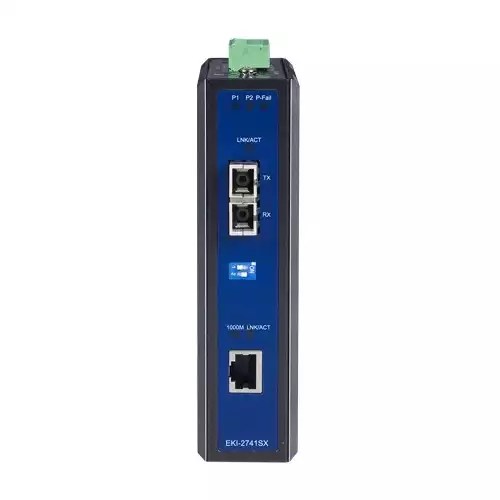

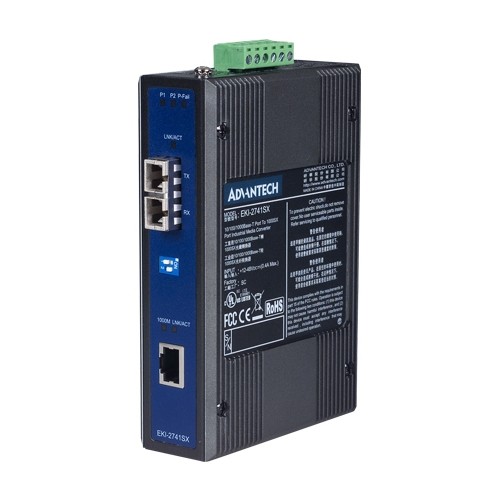

EKI-2741SX-BE

Giga Ethernet to 1000Base-SX Fiber Converter

Pro zobrazení cen se prosím přihlaste.

Externí sklad: 9 ks

- +
Porovnat
Porovnat
Číslo zboží: GAX0003279 Produktové číslo: EKI-2741SX-BEKategorie: Výrobce: Advantech
Poptat produkt
10/100/1000T (X) to Fiber Optic Gigabit Industrial Media Converters

EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. Therefore, EKI-2741 is an ideal solution for „fiber to building“ applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2741 accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile EKI-2741 also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. EKI-2741 will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

Vlastnosti:
  • Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
  • Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX device
  • Provides DIP switch for full/half duplex setting
  • Supports MDI/MDI-X auto crossover
  • Supports Auto-Negotiation
  • Supports redundant 12 ~ 48 VDC power input
  • Provides flexible mounting: DIN-rail and Wall mount
  • Provides Link Fault Pass-through (LFP)
  • Jumbo Frame: 9K bytes
Hmotnost0,5 kg
Rozměry216 × 165 × 68 mm
Výrobce

Advantech

Gigabit Ethernet

Ano

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:

3D Model

3D model se zobrazí v novém okně. Pokud se Vám okno s 3D modelem neobjeví, zkontrolujte prosím, zda nemáte nastaveno automatické blokování vyskakovacích oken. Toto nastavení obvykle naleznete v pravé části adresního řádku.
