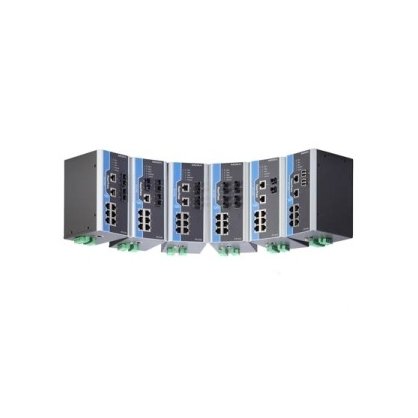

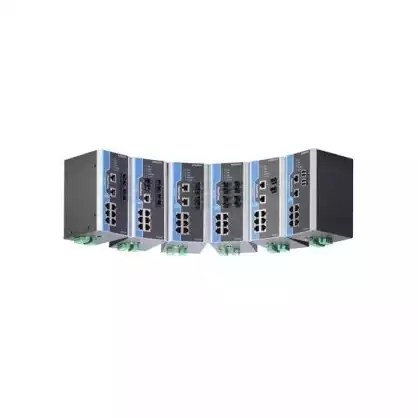

PT-510-MM-SC-HV

8x 10/100BaseT(X), 2x 100BaseFX multi, SC, DC/AC

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6285138 Produktové číslo: PT-510-MM-SC-HV Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 managed DIN-Rail Ethernet switch, with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 isolated power supply (88-300 VDC or 85-264 VAC)
• Command line interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
• VLAN Unaware: Supports priority-tagged frames to be received by specific devices
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP* and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• RMON for efficient network monitoring and proactive capability
• Automatic recovery of connected devices’ IP addresses
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI*, Windows utility, and ABC-01 automatic backup configurator
• Works with MXview industrial network management software
• -40 to 85°C operating temperature

The PowerTrans PT-510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber fast Ethernet backbone, redundant ring, and 24/48 VDC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-Rail and wallmount design of the PT-510 makes network planning easy, and allows greater flexibility by letting you install up to 10 fast Ethernet ports for power distribution applications.
Výrobce

Moxa

Certifikace

IEC61850-3

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

10

PoE

Ne

Protokol

Ethernet, Modbus

Rozšířená provozní teplota

Ano

SFP slot

Ne

Datasheet

Stáhnout datasheet:
