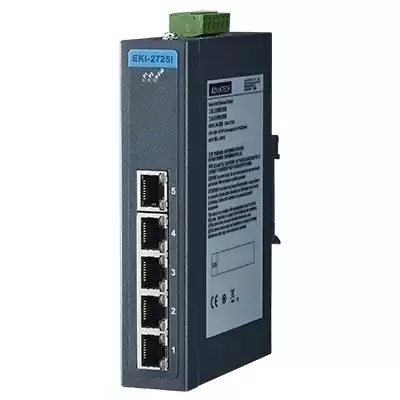

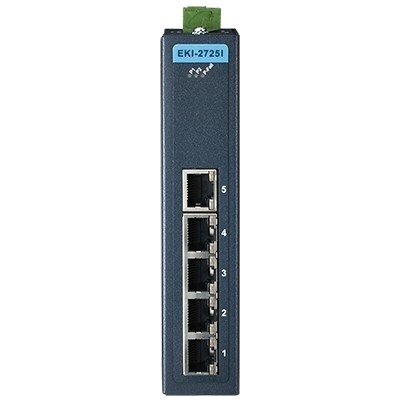

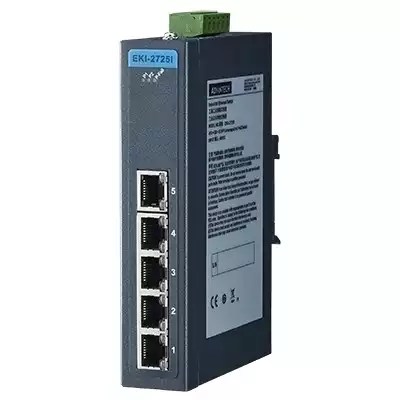

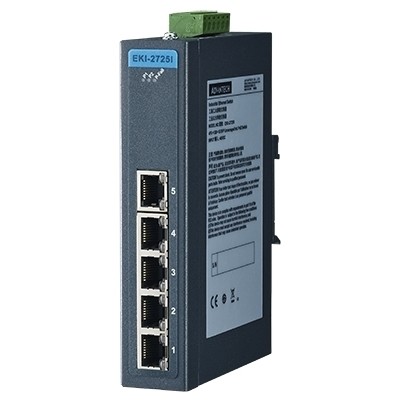

EKI-2725I-CE

5-port Ind. Unmanaged GbE Switch W/T

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003266 Produktové číslo: EKI-2725I-CE Kategorie: Výrobce: Advantech
Poptat produkt
5GE Unmanaged Ethernet Switch, -40~75°C

The EKI-2725 supports Gigabit Ethernet. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725 will automatically get back to normal operation state. Each port of EKI-2725 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Vlastnosti:
  • Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100/1000 Mbps Auto Negotiation
  • Supports jumbo frame transmission up to 9kbytes
  • Provides Slim size, DIN-rail with IP30 metal mechanism
  • Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
Hmotnost 0.8 kg
Rozměry (produktu / balení) 216 × 165 × 68 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ano

Manažovatelné

Ne

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ne

Počet portů

5

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ne

Datasheet

Stáhnout datasheet:
