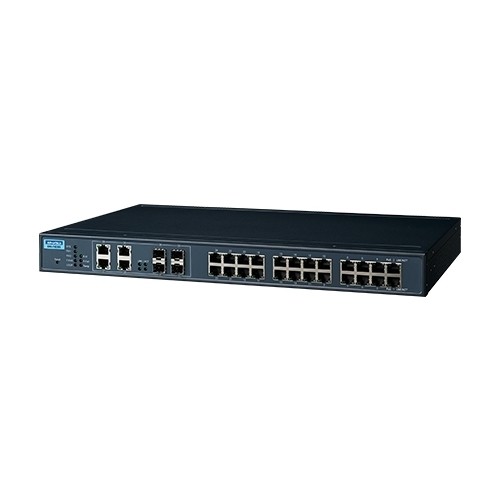

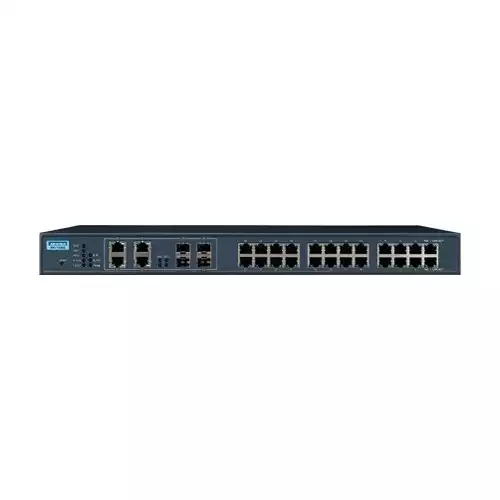

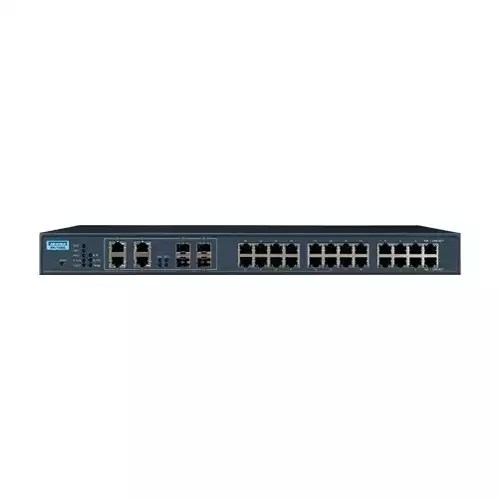

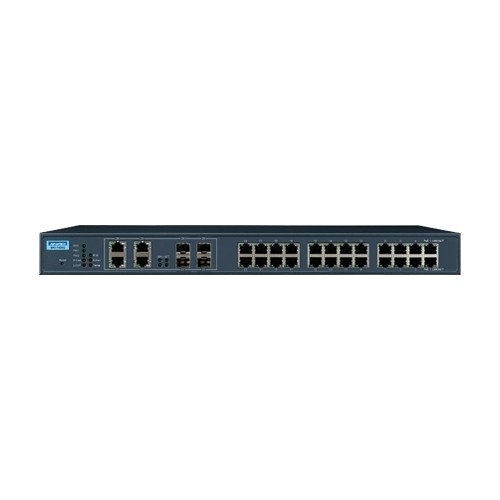

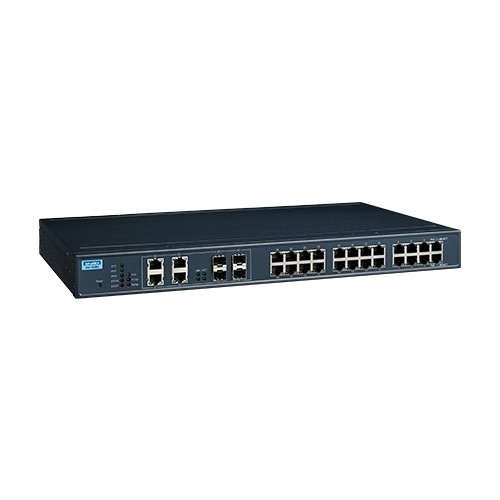

EKI-7428G-4CPI-AE

24G+4G Combo Port POE Managed Switch w/Wide Tem

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003318 Produktové číslo: EKI-7428G-4CPI-AE Kategorie: Výrobce: Advantech
Poptat produkt
24GE PoE+4G Combo Managed Ethernet Switch, IEEE802.3af/at, 19″ Rackmount, -40~75°C, 46~57VDC

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 V DC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer’s time and costs.

Vlastnosti:
  • 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
  • -40 ~ 70°C wide-range operating temperature
Hmotnost 5.68 kg
Rozměry (produktu / balení) 572 × 387 × 139 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ano

Montáž na DIN lištu

Ne

Optický port

Ne

Počet portů

28

PoE

Ano

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
