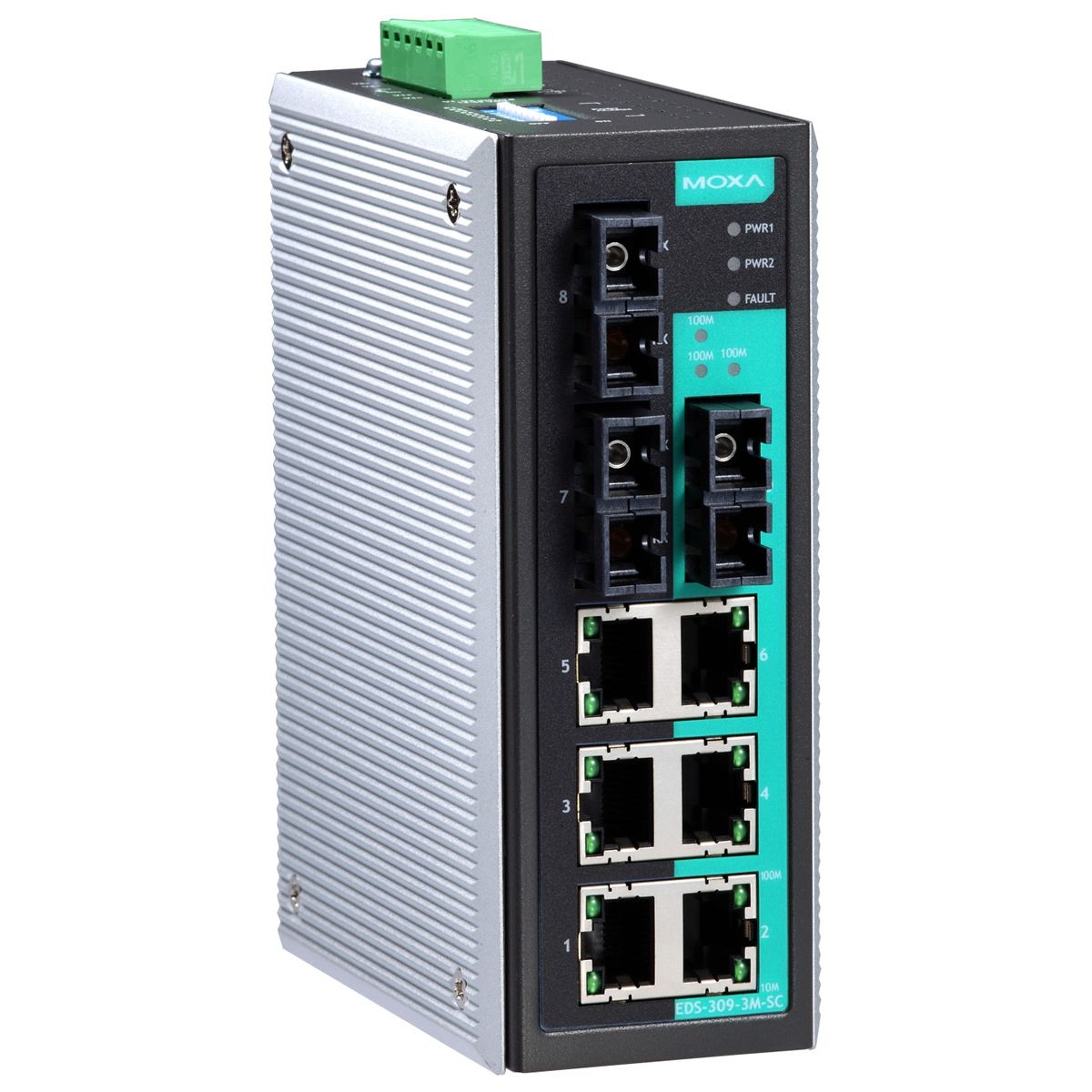

EDS-309-3M-SC

6x 10/100BaseT(X) + 3x multi porty

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6281100 Produktové číslo: EDS-309-3M-SC Kategorie: Výrobce: MOXA
Poptat produkt
• Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with SC connectors
• Redundant dual 24 VDC power inputs
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• Transparent transmission of VLAN tagged packets
• operating temperature: 0 to 60°C

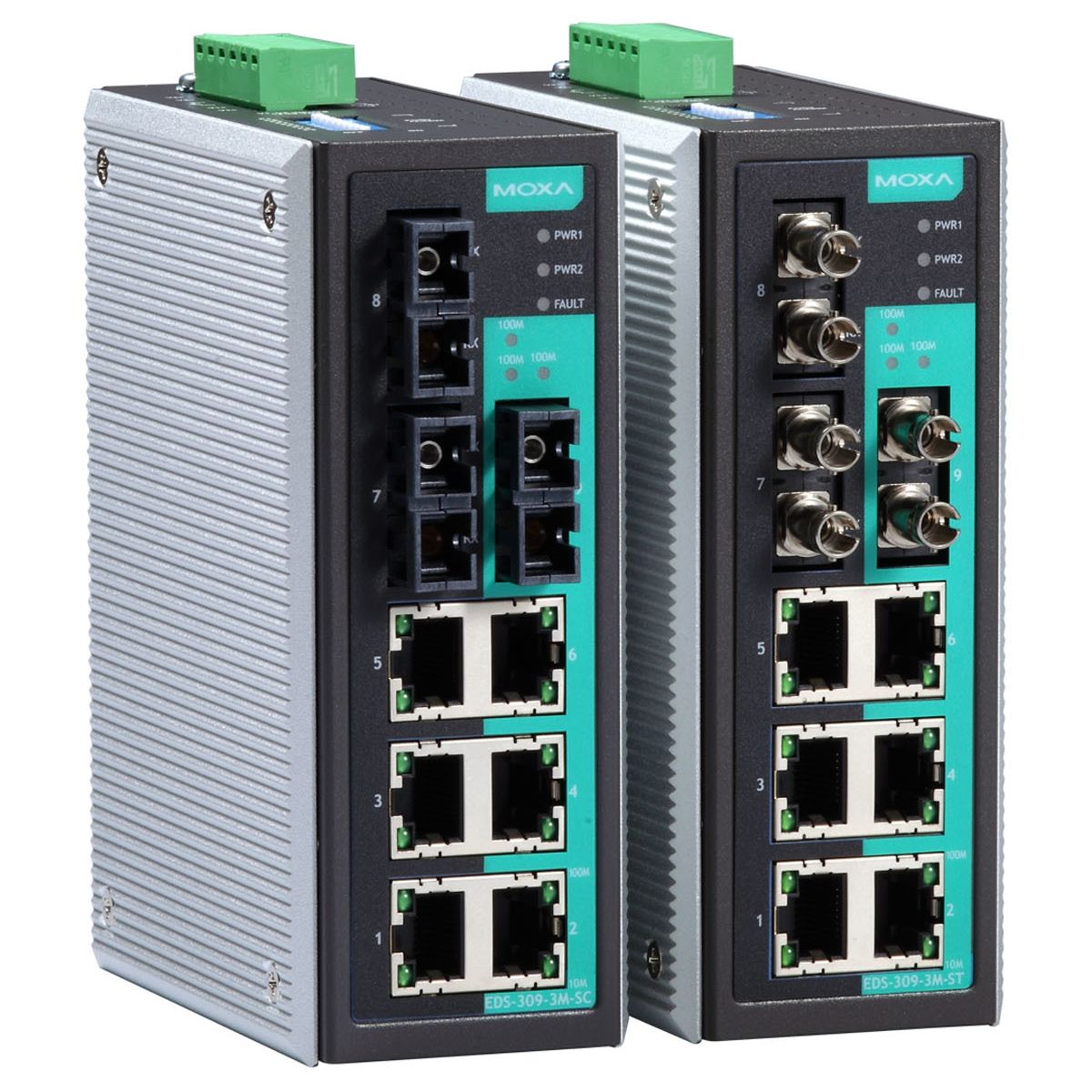

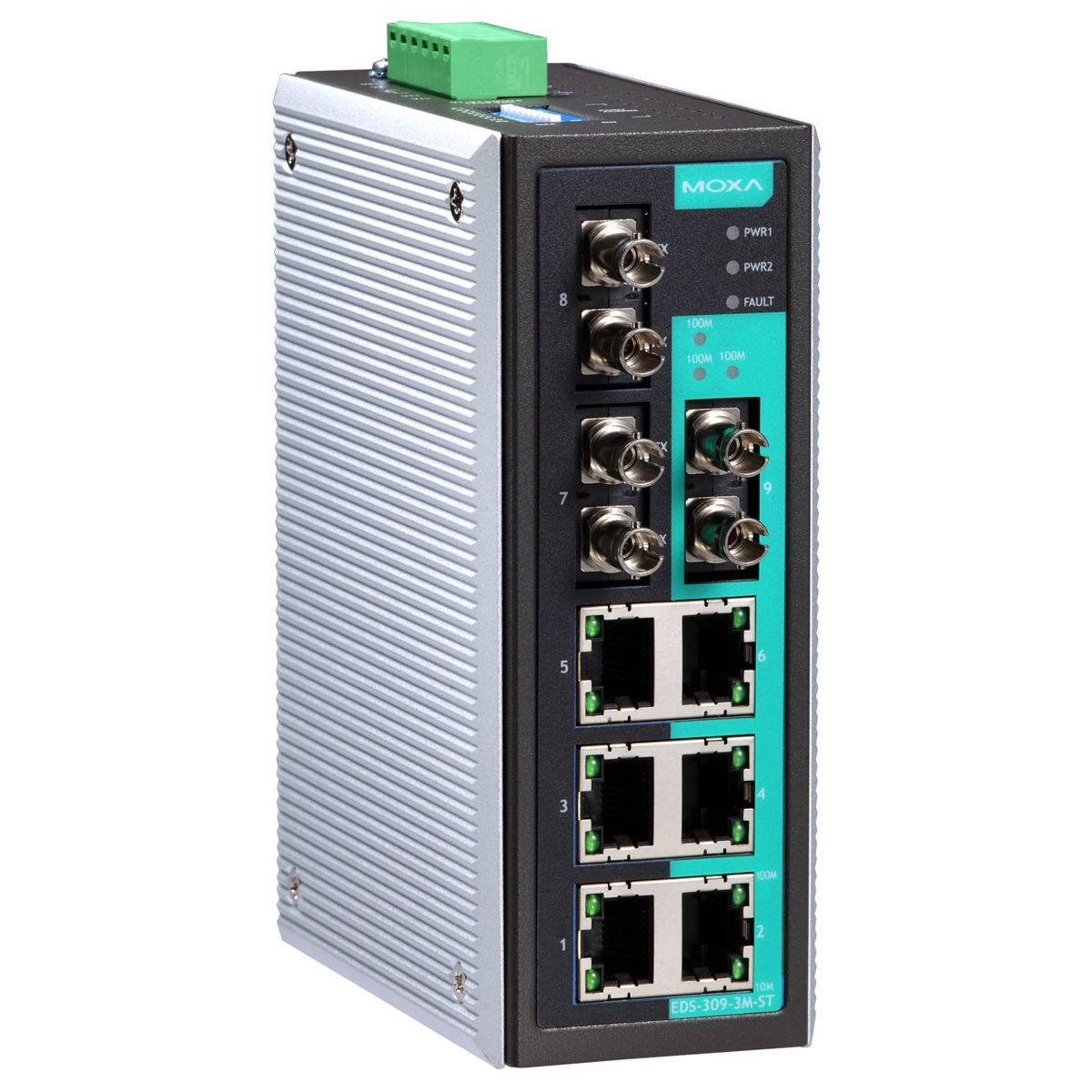

The EDS-309 are 9-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2/ATEX). The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-309 switches can be installed easily on a DIN-Rail or in a distribution box.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ne

Manažovatelné

Ne

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

9

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ne

SFP slot

Ne

Datasheet

Stáhnout datasheet:
